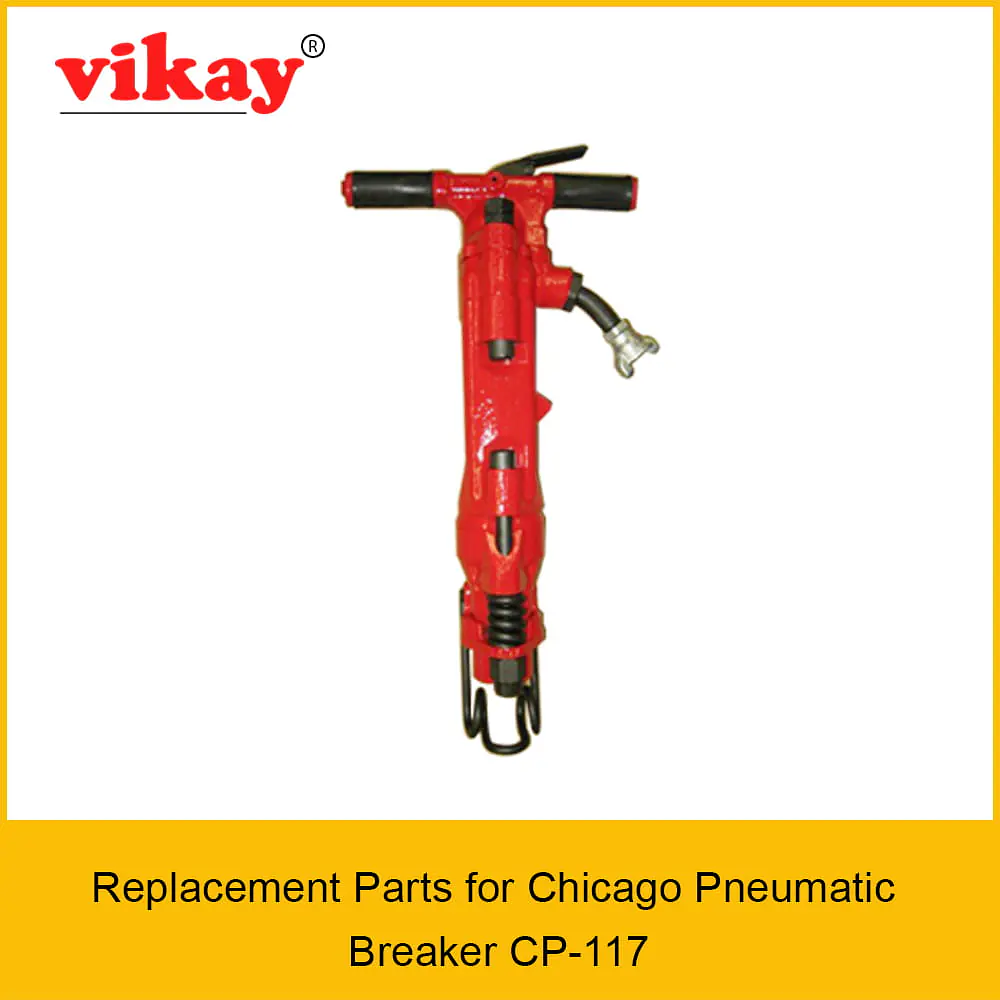

Cp 117 Chicago Pneumatic Paving Breaker Parts
Regular price
₹0.00
Cp 117 Chicago Pneumatic Paving Breaker Parts
Regular price
₹0.00
DESCRIPTION
Cp-117 Paving Breaker Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts - Chicago Pneumatic Paving Breaker Cp-117 from India
Product
- Page 1

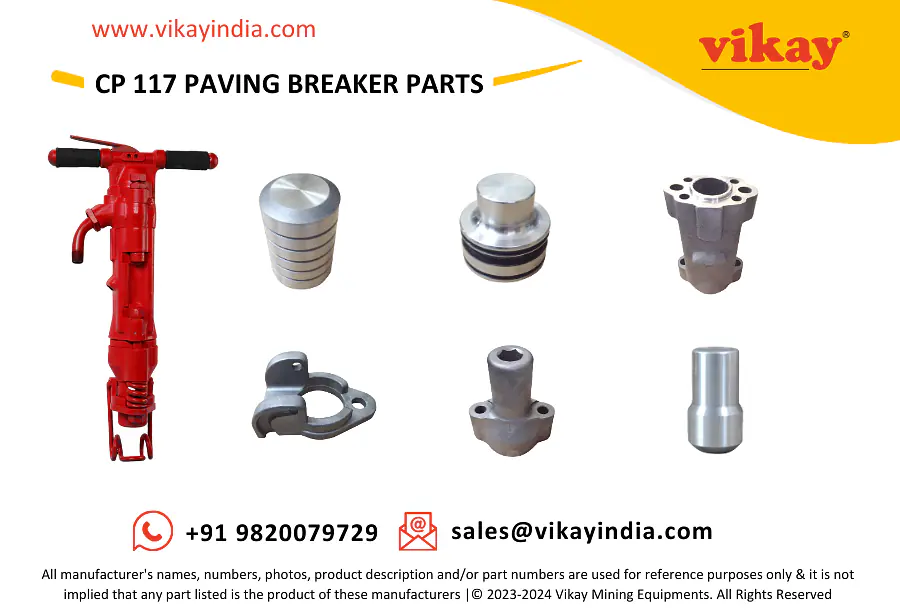

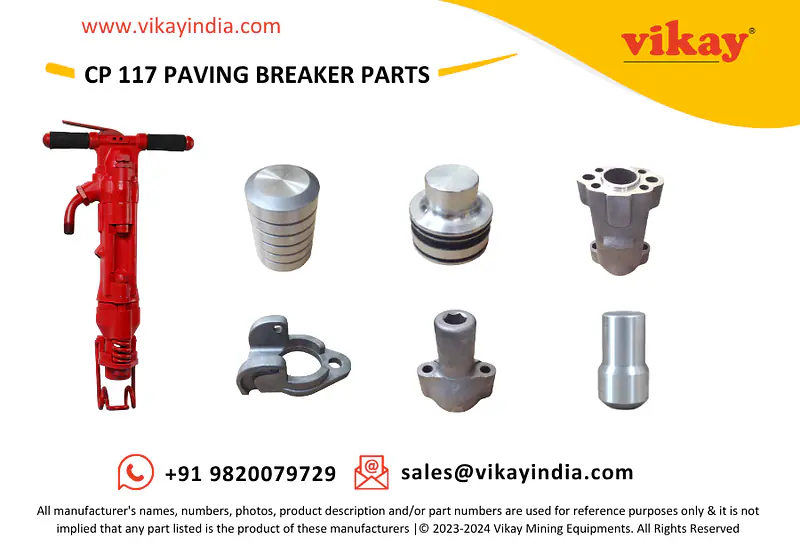

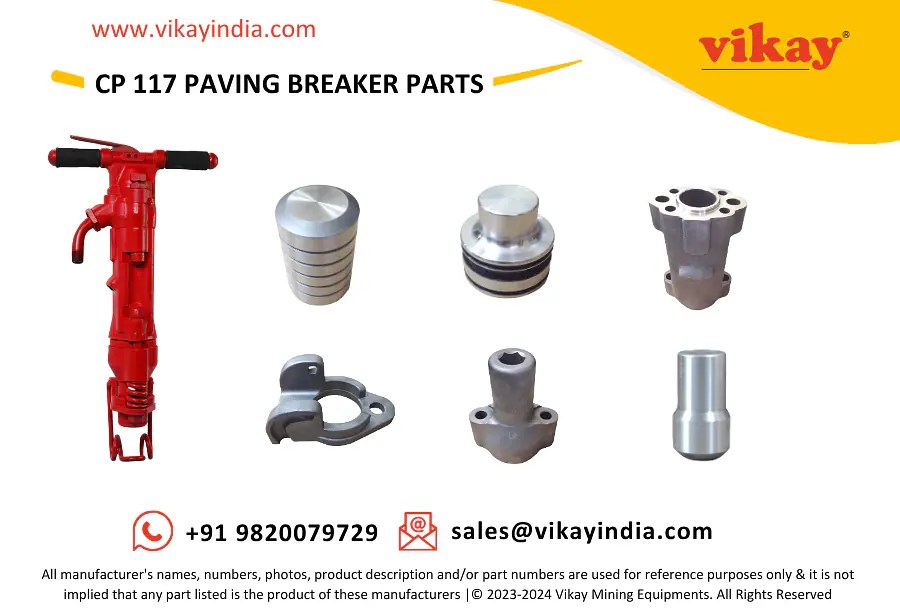

Cp-117 Paving Breaker Parts
| Sr. No | Description | Ref. Part No. | |
| 1 | Backhead complete | Z8415441 | |
| (Includes item No.2, 3, 4, 5, 6 & 8) | |||
| 2 | Backhead | -- | |
| 3 | Oil plug | R000560 | |
| 4 | Backhead handle grip | R005716 | |
| 5 | Throttle lever | R005712 | |
| 6 | Throttle lever pin | R133433 | |
| 7 | Backhead bolt nut | R005689 | |
| 8 | Oil regulator plug | R004976 | |
| 9 | Throttle valve | R045373 | |
| (Includes Items 10, 11 & 12) | |||
| 10 | Throttle valve | -- | |
| 11 | Throttle valve seat | R098368 | |
| 12 | Throttle valve retaining ring | R098369 | |
| 13 | Throttle valve spring | R005717 | |
| 14 | Inside valve bushing | D7414441 | |
| 15 | Valve | D7305441 | |
| 16 | Backhead cylinder spacer | R075193 | |
| 17 | Gooseneck adaptor | F813728 | |
| 18 | Air inlet swivel | R085269 | |
| 19 | O-ring | R110317 | |
| 20 | O-ring | P103521 | |
| 21 | Air swivel nut | R000530 | |
| 22 | Piston | R000040 | |
| 23 | Cylinder | R075185 | |
| 24 | Backhead bolt | R075189 | |
| 25 | Fronthead bolt | R005684 | |
| 26 | Spring type fronthead compete (1.1/8" Hex) | R077682 | |
| (Includes item No.25, 28, 29, 31, 32, 33, 34 & 35) | |||
| 27 | Spring type fronthead compete (1.1/4" Hex) | R077683 | |
| (Includes item No. 25, 28, 29, 30, 32, 33, 34 & 35) | |||
| 28 | Anvil block bushing | R075187 | |
| 29 | Anvil block | R075186 | |
| 30 | Spring type fronthead (1.1/4" Hex) | R005724 | |
| 31 | Spring type fronthead (1.1/8" Hex) | R005725 | |
| 32 | Fronthead bolt spring | R005729 | |
| 33 | Steel retainer support | R005728 | |
| 34 | Fronthead bolt nut | R005721 | |
| 35 | Steel retainer | R005727 | |
| 36 | Muffler hood | F813764 | |
| (Includes item No.37, 38, 39 & 40) | |||
| 37 | Muffler hood | -- | |
| 38 | Nylon insert nut | Q2101000 | |
| 39 | Washer | C011005 | |
| 40 | Socket head cap screw | P070428 | |
| 41 | O-ring | H0364441 | |
| 42 | Side bolt kit, includes one pair of complete | Z3630441 | |
| bolt assembly (Item No. 25, 32 & 34) |
