Cp 1210 Chicago Pneumatic Paving Breaker Parts
Regular price
₹0.00
Cp 1210 Chicago Pneumatic Paving Breaker Parts
Regular price
₹0.00
DESCRIPTION

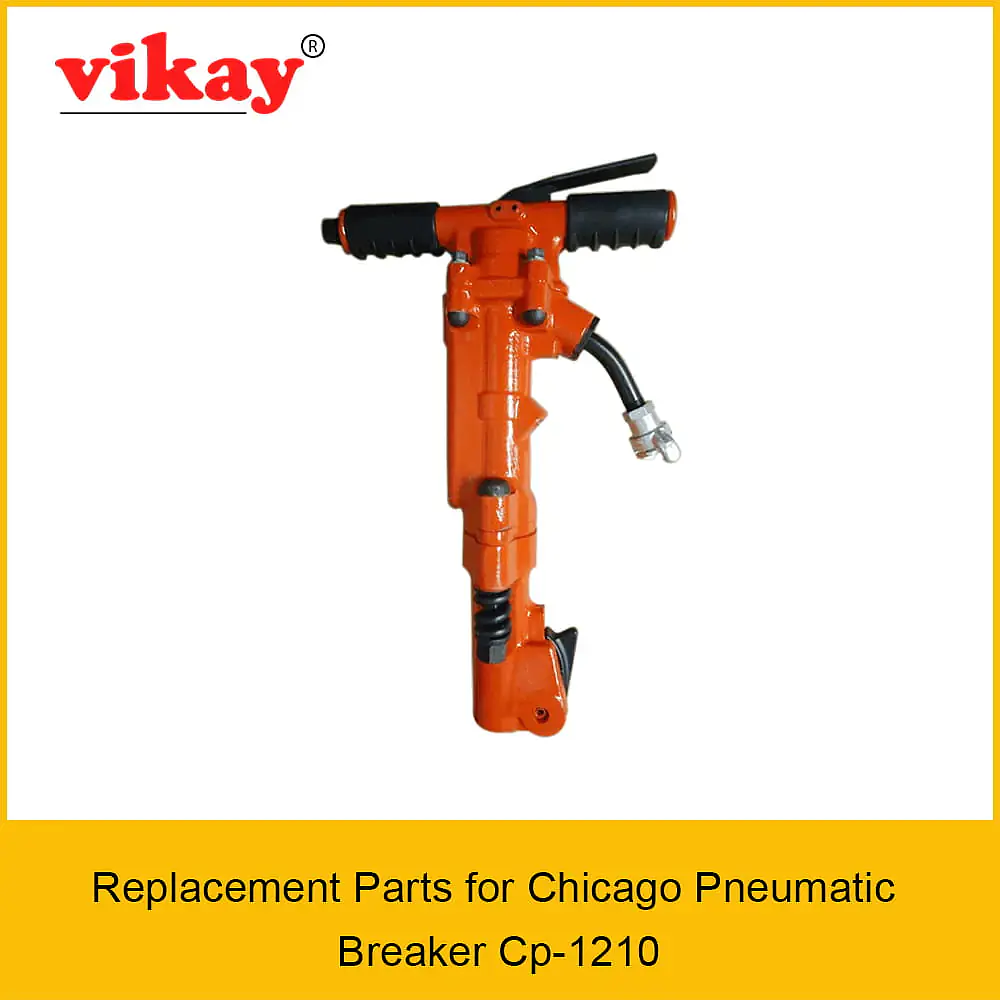

Cp-1210 Pneumatic Breaker Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts - Chicago Pneumatic Breaker Cp-1210 from India
Product
- Page 1

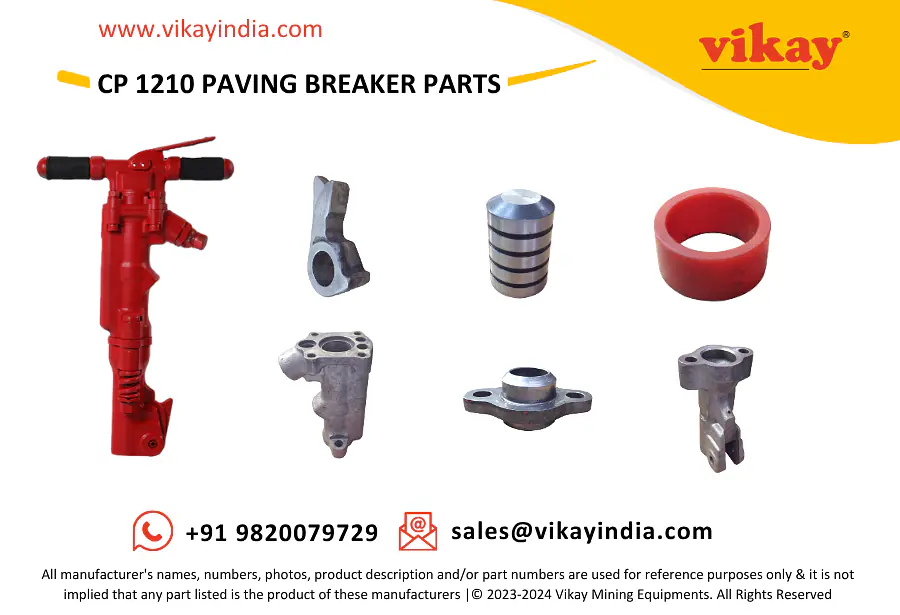

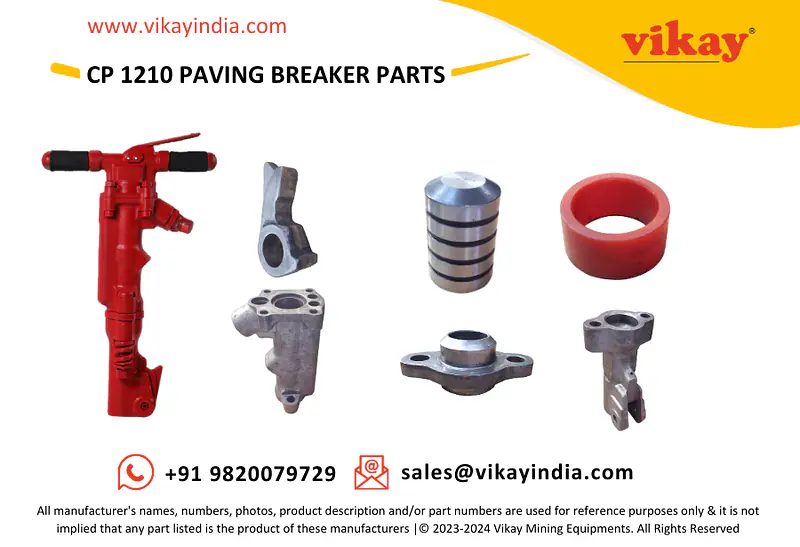

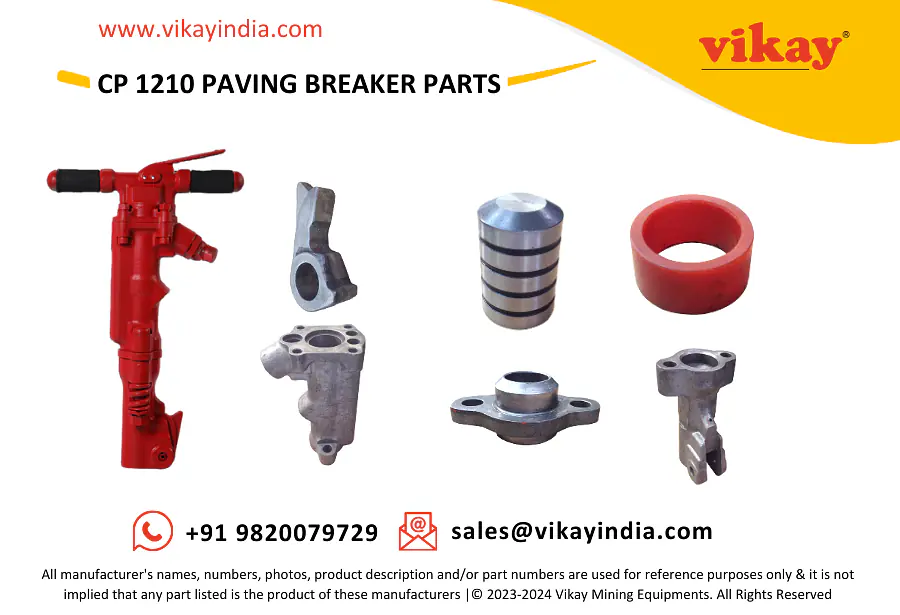

Cp-1210 Paving Breaker Parts
| Sr. No | Description | Ref. Part No. | |
| 1 | Grip - Rubber | F816345 | |
| 2 | Backhead assembly | F815274 | |
| (Includes item No. 3, 4, 5, 6 & 7) | |||
| 3 | Plug - Oil | R075031 | |
| 4 | Plug - Oil regulator | C036901 | |
| 5 | Backhead | -- | |
| 6 | Lever - Throttle | F814725 | |
| 7 | Pin - Spirol | R133433 | |
| 8 | Nut - Hex. | R114525 | |
| 9 | Lock washer | C065384 | |
| 10 | Spacer - Valve case | R110209 | |
| 11 | Valve case assembly | F815071 | |
| (Includes item No. 12, 13, 14, 15 & 16) | |||
| 12 | Plug - Pipe | P009876 | |
| 13 | Case - Valve | R110206 | |
| 14 | O-ring | R110210 | |
| 15 | Valve | R110208 | |
| 16 | Cover - Valve case | R110207 | |
| 17 | Valve - Throttle | R092894 | |
| (Includes item No. 18, 19 & 20) | |||
| 18 | Valve - Throttle | -- | |
| 19 | Seal - Throttle valve | R098368 | |
| 20 | Ring - Valve seal retaining | R098369 | |
| 21 | Spring - Throttle valve | R005717 | |
| 22 | Seal - Cylinder | R110215 | |
| 23 | Bolt - Backhead | R110214 | |
| 24 | Cylinder | -- | |
| 25 | Swivel - Air inlet | F814720 | |
| 26 | O-ring | C106884 | |
| 27 | O-ring | R056605 | |
| 28 | Nut - Inlet swivel | R075599 | |
| 29 | Bolt - Fronthead | R110217 | |
| 30 | Piston | R110212 | |
| 31 | Bushing - Anvil block | R110203 | |
| 32 | Block - Anvil | R085427 | |
| 33 | Fronthead (for UK) | F815719 | |
| 34 | Fronthead (for USA) | F815478 | |
| 35 | Side bolt kit, includes one pair of complete | Z3627447 | |
| bolt assembly (Item No. 29, 36, 37 & 38) | |||
| 36 | Spring - Fronthead | R093698 | |
| 37 | Lock - Fronthead nut | R041073 | |
| 38 | Nut - Fronthead bolt | R110218 | |
| 39 | Latch kit | Z8318447 | |
| (Includes item No.40, 41, 42, 43, 44, 45 & 46) | |||
| 40 | Pin - Roll | 0108110304 | |
| 41 | Spring - Plunger | R086982 | |
| 42 | Plunger - Latch | R092497 | |
| 43 | Bushing - Retainer latch | R048540 | |
| 44 | Latch - Retainer | R092493 | |
| 45 | Muffler complete | F814928 | |
| (Includes item No. 46 & 47) | |||
| 46 | Muffler | -- | |
| 47 | Screw - Allen cap | R117415 | |
| 48 | Backhead assembly | R145777 | |
| (Includes item No. 49 to 69 & 4,19, 20 & 21) | |||
| 49 | Cover - Buffer | R157669 | |
| 50 | Pin - Lever | R145866 | |
| 51 | Lever | R145781 | |
| 52 | Grip | R145788 | |
| 53 | Handle | R146266 | |
| 54 | Steel washer | R145861 | |
| 55 | Oil - Plug square head | R004975 | |
| 56 | Plug | Q3217400 | |
| 57 | Pin - Roll | 0108153500 | |
| 58 | Spring | R145863 | |
| 59 | Pin - Stepped | R157670 | |
| 60 | Backhead | R145783 | |
| 61 | Gasket | R147755 | |
| 62 | Upper valve lid | R138096 | |
| 63 | Valve case | R138095 | |
| 64 | Valve | R138094 | |
| 65 | Lower valve lid | R145786 | |
| 66 | O-ring | C102642 | |
| 67 | O-ring | C125868 | |
| 68 | Throttle valve | R145782 | |
| (Includes item No. 69, 19 & 20) | |||
| 69 | Throttle valve | -- |
