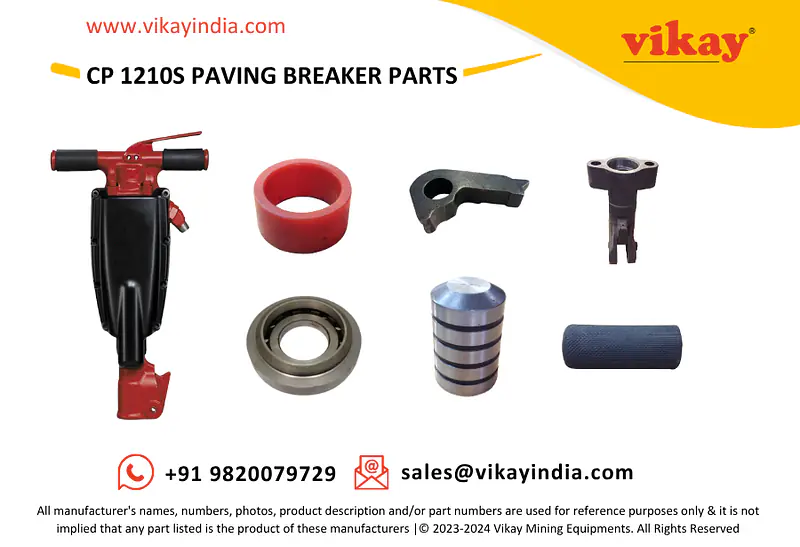

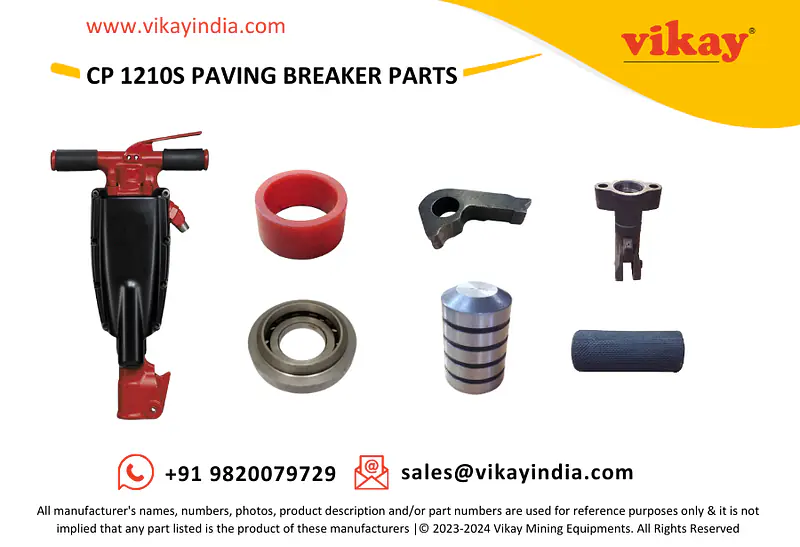

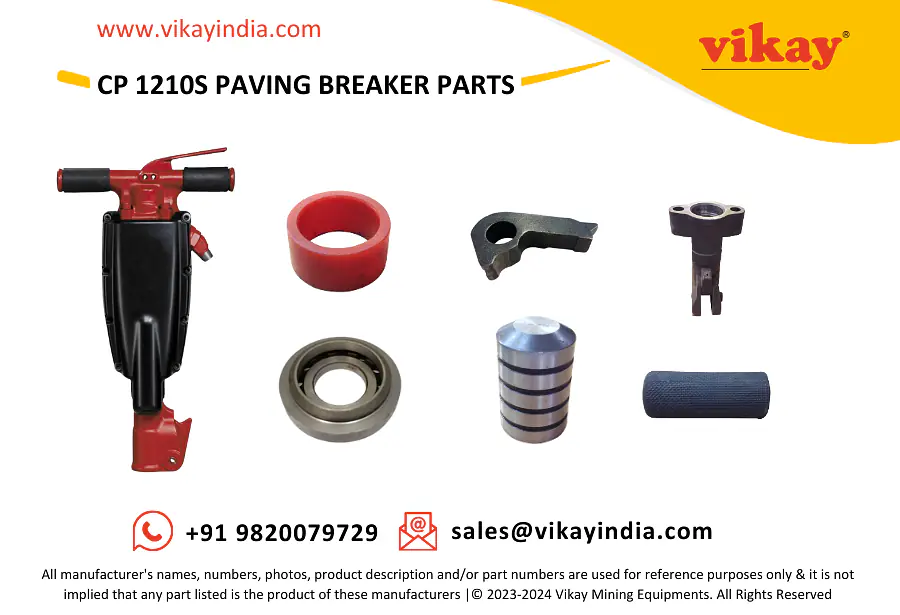

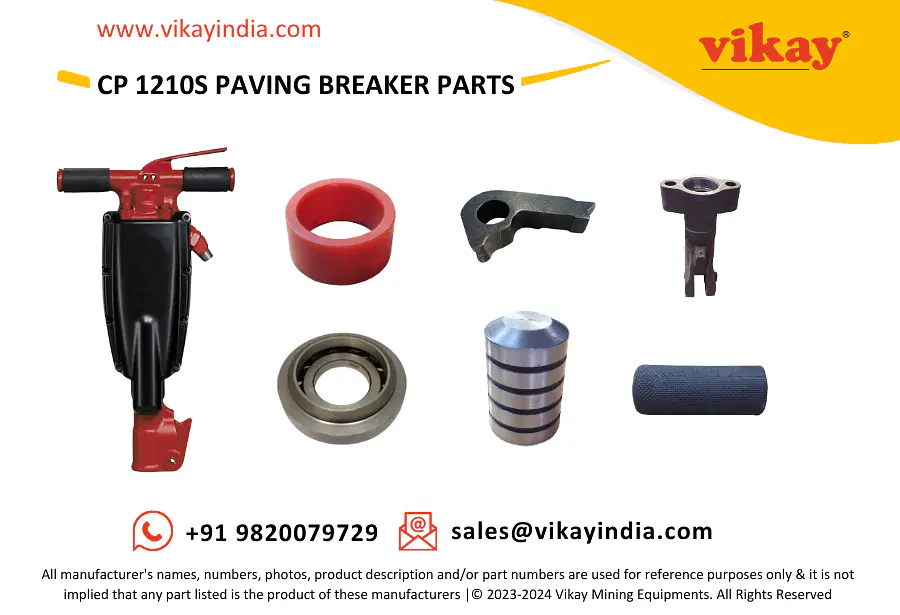

CP 1210S Chicago Pneumatic Paving Breaker Parts
Regular price
₹0.00
CP 1210S Chicago Pneumatic Paving Breaker Parts
Regular price
₹0.00
DESCRIPTION

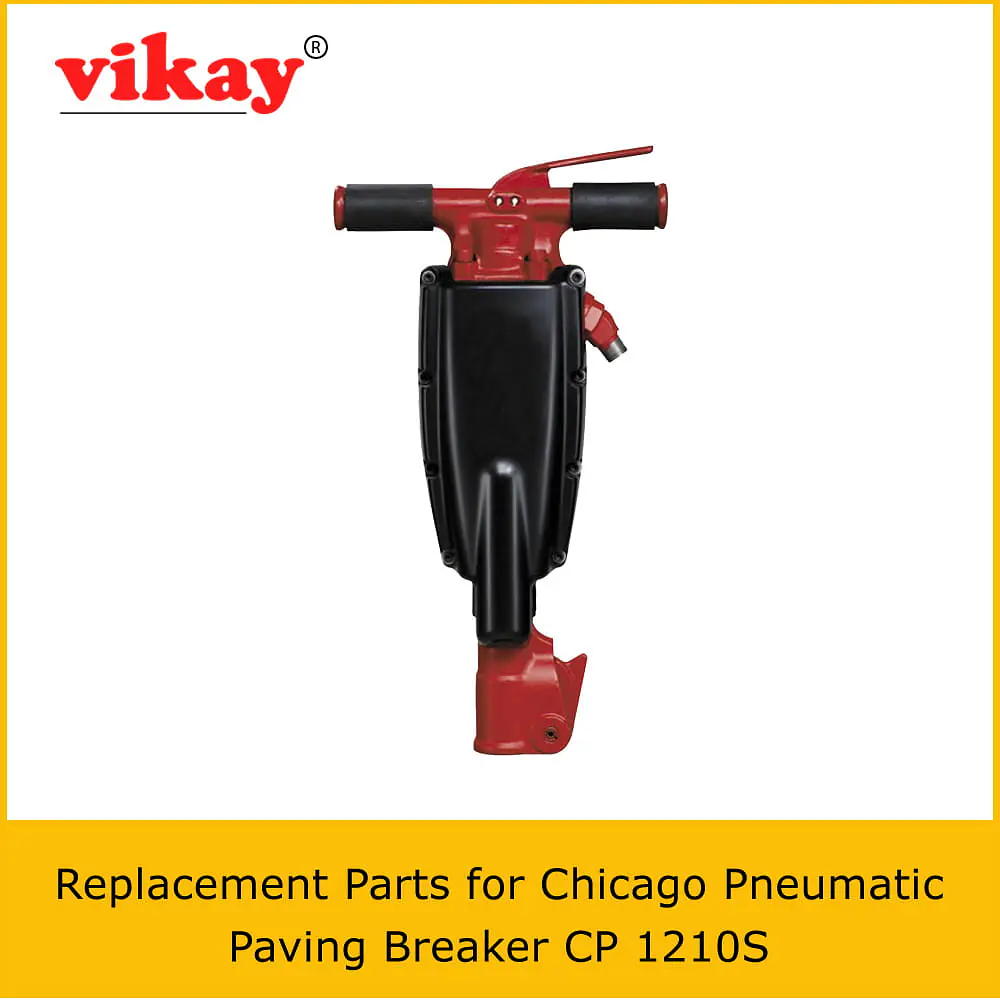

CP-1210S Paving Breaker Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts - Chicago Pneumatic Paving Breaker CP-1210S from India.
Product
- Page 1
Paving Breker 1210S Parts
| Sr. No | Description | Ref. Part No. | |
| 1 | Backhead | 3303005000 | |
| 2 | Rubber grip | F816345 | |
| 3 | Trigger (start and stop device) | F814725 | |
| 4 | Roll pin | R133433 | |
| 5 | Socket head cap screw | 211140700 | |
| 6 | Gasket | 3303005031 | |
| 7 | O-ring | C102642 | |
| 8 | Upper valve lid | R138096 | |
| 9 | Valve | R138094 | |
| 10 | Valve case | R138095 | |
| 11 | Lower valve case lid | 3303005024 | |
| 12 | O-ring | H0310447 | |
| 13 | Seal - cylinder | R110215 | |
| 14(15-17) | Throttle valve, complete | R092894 | |
| 15 | Throttle valve | - | |
| 16 | Seal - throttle valve | R098368 | |
| 17 | Ring - valve seal retaining | R098369 | |
| 18 | Spring - throttle valve | R005717 | |
| 19 | O-ring | R056605 | |
| 20 | Nut - air inlet swivel | 3303005013 | |
| 21 | Lock washer - swivel | 3310105900 | |
| 22 | O-ring - swivel | 663212600 | |
| 23 | Swivel - air inlet | 3303005012 | |
| 24 | Nut | 3303005030 | |
| 25 | Cylinder | 3303005029 | |
| 26 | Piston | R110212 | |
| 27 | Bushing - anvil block | R110203 | |
| 28 | Block - anvil | R085427 | |
| 29 | Fronthead | F814719 | |
| 30 | Fronthead | F815478 | |
| 31(32-35) | Side bolt, complete | 3303005044 | |
| 32 | Bolt - fronthead | R110217 | |
| 33 | Spring - steel | R093698 | |
| 34 | Lock - fronthead nut | R041073 | |
| 35 | Nut - fronthead bolt | R110218 | |
| 36(37-42) | Latch, complete | 3303005043 | |
| 37 | Roll pin | 108110304 | |
| 38 | Roll pin | 108139500 | |
| 39 | Spring - plunger | R086982 | |
| 40 | Plunger - latch | R092497 | |
| 41 | Retainer latch bush | R048540 | |
| 42 | Retainer - latch | R092493 | |
| 43 | Data plate | - | |
| 44 | Safety label | 3310160200 | |
| 45(46-53) | Muffler, complete | 3303005042 | |
| 46 | Muffler | - | |
| 47 | Socket head cap screw | 211125300 | |
| 48 | Washer | F826979 | |
| 49 | O-ring - muffler | 663214600 | |
| 50 | Nyloc nut | 291112815 | |
| 51 | Sealing pad - muffler | 3303005010 | |
| 52 | O-ring - muffler | 663214300 | |
| 53 | Sealing pad - muffler | 3303005011 | |
| 54 | Noise level label | - |
