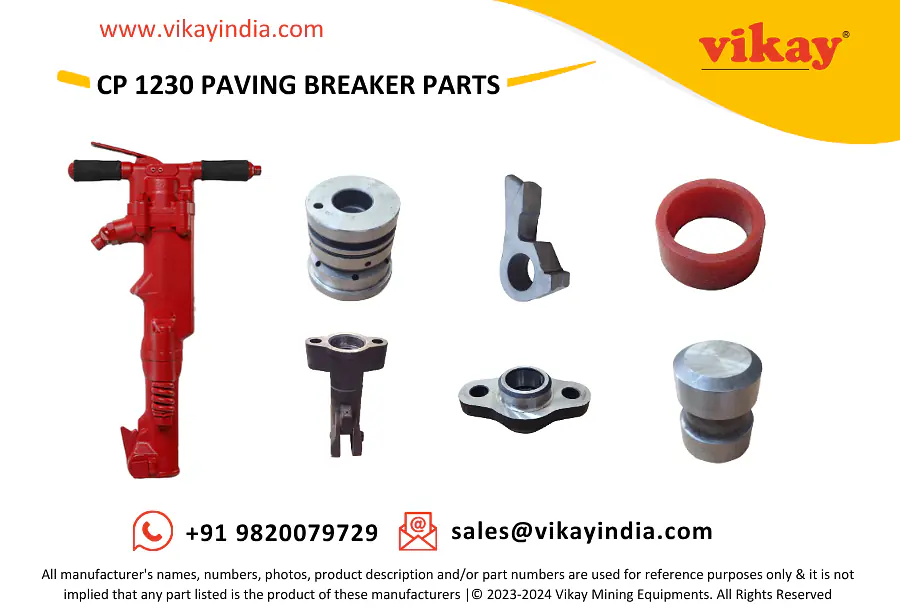

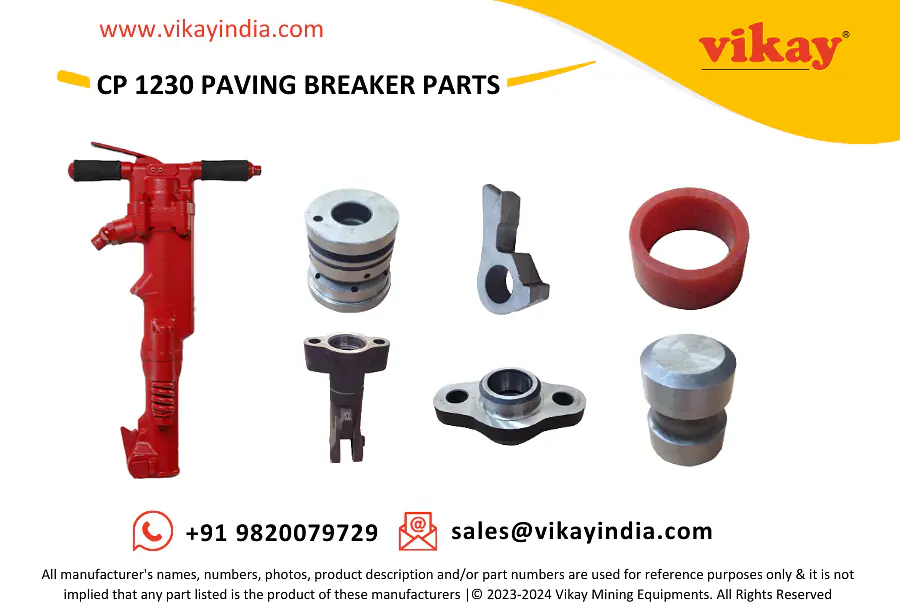

Cp 1230 Chicago Pneumatic Paving Breaker Parts
Regular price
₹0.00
Cp 1230 Chicago Pneumatic Paving Breaker Parts
Regular price
₹0.00
DESCRIPTION

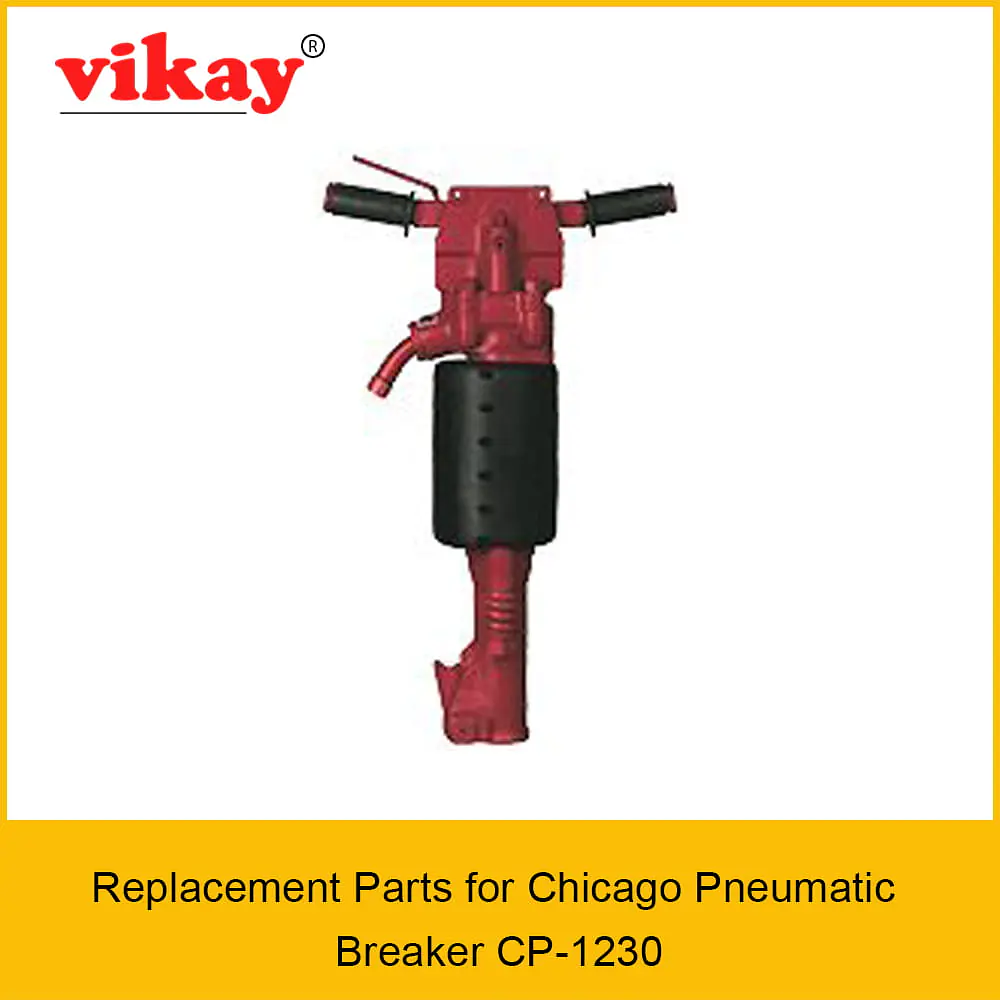

Cp-1230 Pneumatic Breaker Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts - Chicago Pneumatic Breaker Cp-1230 from India
Product
- Page 1
Cp-1230 Paving Breaker Parts
| Sr. No | Description | Ref. Part No. | |
| 1 | Backhead assembly | F815390 | |
| (Includes item No. 2, 3, 4 & 5) | |||
| 2 | Backhead | -- | |
| 3 | Lever - Throttle | F814725 | |
| 4 | Pin - Spirol | R133433 | |
| 5 | Plug - Oil | R075031 | |
| 6 | Grip - Rubber | F816345 | |
| 7 | Plug - Oil regulator | C036901 | |
| 8 | Nut - Hex. | R006131 | |
| 9 | Lock washer | P006239 | |
| 10 | Spring - Valve case | R047961 | |
| 11 | Valve case assembly | R122157 | |
| (Includes item No. 12, 13, 14, 15 & 16) | |||
| 12 | Plug - Pipe | P009876 | |
| 13 | Case - Valve | R047958 | |
| 14 | O-ring | R049854 | |
| 15 | Valve | R047959 | |
| 16 | Lid - Valve case | R047960 | |
| 17 | Valve - Throttle | R092894 | |
| (Includes item No. 18, 19 & 20) | |||
| 18 | Valve - Throttle | -- | |
| 19 | Seal - Throttle valve | R098368 | |
| 20 | Ring - Valve seal retaining | R098369 | |
| 21 | Spring - Throttle valve | R005717 | |
| 22 | Seal - Cylinder | R047965 | |
| 23 | Bolt - Backhead | R047962 | |
| 24 | Cylinder | -- | |
| 25 | Swivel - Air inlet | R085269 | |
| 26 | O-ring | R110317 | |
| 27 | O-ring | P103521 | |
| 28 | Nut - Inlet swivel | R000530 | |
| 29 | Bolt - Fronthead | R047970 | |
| 30 | Piston | R047967 | |
| 31 | Bushing - Anvil block | R047966 | |
| 32 | Block - Anvil | R085260 | |
| 33 | Fronthead (1 1/4" Hex.) | R047969 | |
| 34 | Fronthead (1 1/8" Hex.) | R047968 | |
| 35 | Side bolt kit, includes one pair of complete | Z3628445 | |
| bolt assembly (Item No. 29, 36, 37 & 38) | |||
| 36 | Spring - Fronthead | R047971 | |
| 37 | Lock - Fronthead nut | R090584 | |
| 38 | Nut - Fronthead bolt | R005721 | |
| 39 | Latch kit | Z8319445 | |
| (Includes item No. 40, 41, 42, 43, 44, 45 & 46) | |||
| 40 | Lock nut | P008999 | |
| 41 | Bushing - Retainer bolt | R076562 | |
| 42 | Spring - Plunger | R086982 | |
| 43 | Bolt - Latch | R076853 | |
| 44 | Plunger - Latch | R092497 | |
| 45 | Bushing | R055818 | |
| 46 | Latch - Retainer | R092493 | |
| 47 | Muffler complete | K3216445 | |
| (Includes item No. 48 & 49) | |||
| 48 | Muffler | -- | |
| 49 | Screw - Allen cap | R117415 | |
| 50 | Block - Driving | R085573 | |
| 51 | Fronthead (Spike driver) | R053916 | |
| 52 | Backhead assembly | R145776 | |
| (Includes item No. 53 to 72 & 7, 19, 20 & 21) | |||
| 53 | Cover - Buffer | R157669 | |
| 54 | Pin - Lever | R145866 | |
| 55 | Lever | R145781 | |
| 56 | Grip | R145788 | |
| 57 | Handle | R145780 | |
| 58 | Steel washer | R145861 | |
| 59 | Oil - Plug, square head | R004975 | |
| 60 | Plug | Q3217400 | |
| 61 | Pin - Roll | 0108153500 | |
| 62 | Spring | R145863 | |
| 63 | Pin - Stepped | R157670 | |
| 64 | Backhead | -- | |
| 65 | Gasket | R146817 | |
| 66 | Upper valve lid | R137339 | |
| 67 | Valve case | R137337 | |
| 68 | Valve | R137338 | |
| 69 | Lower valve lid | R145785 | |
| 70 | O-ring | C137341 | |
| 71 | Throttle valve | R145782 | |
| (Includes item No. 72, 19 & 20) | |||
| 72 | Throttle valve | -- |
