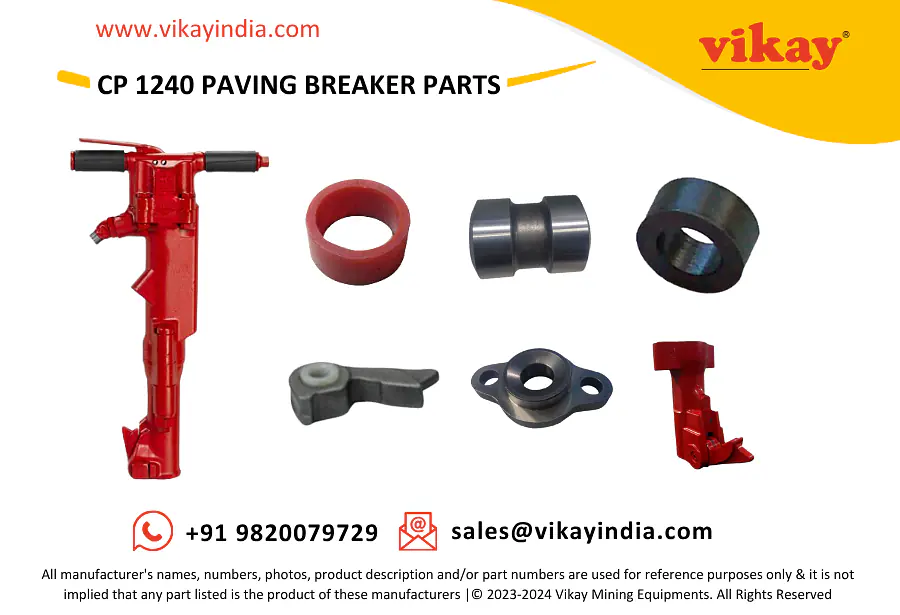

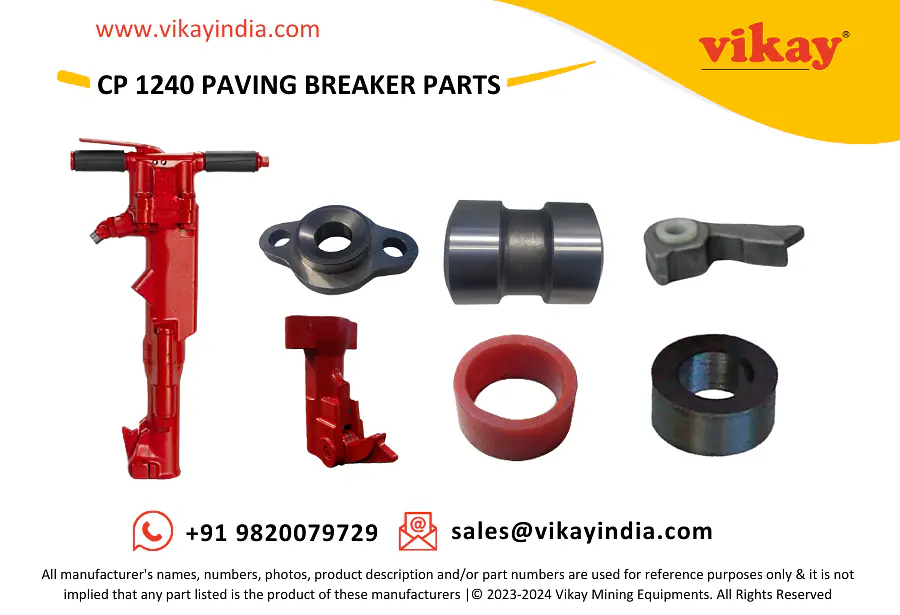

Cp 1240 Chicago Pneumatic Paving Breaker Parts
Regular price
₹0.00
Cp 1240 Chicago Pneumatic Paving Breaker Parts
Regular price
₹0.00
DESCRIPTION

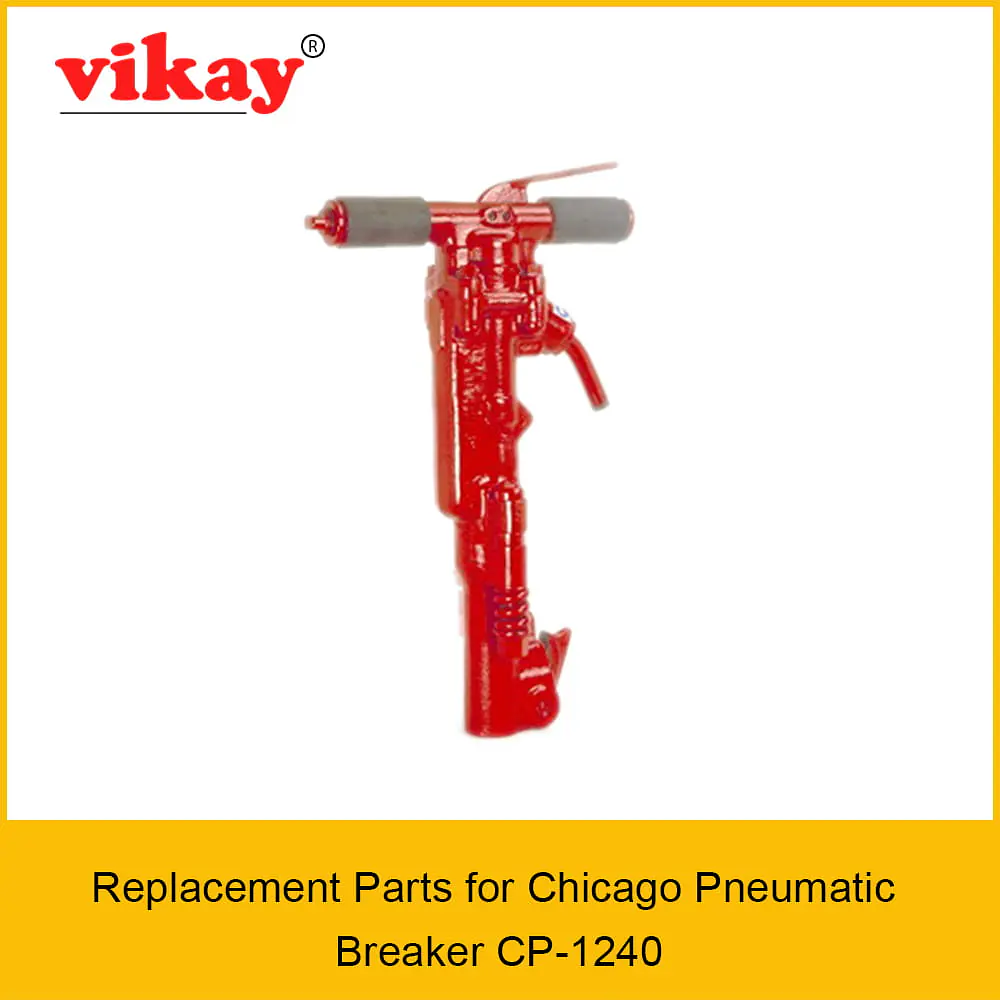

Cp-1240 Pneumatic Breaker Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts - Chicago Pneumatic Breaker Cp-1240 from India
Product
- Page 1
Cp-1240 Paving Breaker Parts
| Sr. No | Description | Ref. Part No. | |
| 1 | Grip - Rubber | F816345 | |
| 2 | Backhead assembly | F815126 | |
| (Includes item No. 2, 3, 4,5,6 & 7) | |||
| 3 | Plug - Oil | R075031 | |
| 4 | Plug - Oil regulator | C036901 | |
| 5 | Backhead | -- | |
| 6 | Lever - Throttle | F814725 | |
| 7 | Pin - Throttle lever | R133433 | |
| 8 | Nut - Hex. | R003069 | |
| 9 | Lock washer | R000550 | |
| 10 | Washer - Take up | R085259 | |
| 11 | Valve case assembly | R122977 | |
| (Includes item No. 12, 13, 14 & 15) | |||
| 12 | Case - Valve | R092904 | |
| 13 | O-ring | P083094 | |
| 14 | Valve | R122975 | |
| 15 | Guide - Valve | R122976 | |
| 16 | Valve - Throttle | R092894 | |
| (Includes item No. 17, 18 & 19) | |||
| 17 | Valve - Throttle | -- | |
| 18 | Seal - Throttle valve | R098368 | |
| 19 | Ring - Valve seal retaining | R098369 | |
| 20 | Spring - Throttle valve | R005717 | |
| 21 | Seal - Cylinder | R047965 | |
| 22 | Bolt - Backhead | R092896 | |
| 23 | Cylinder | -- | |
| 24 | Swivel - Air inlet | R085269 | |
| 25 | O-ring | R110317 | |
| 26 | O-ring | P103521 | |
| 27 | Nut - Inlet swivel | R000530 | |
| 28 | Bolt - Fronthead | F037790 | |
| 29 | Piston | R000127 | |
| 30 | Bushing - Anvil block | R092907 | |
| 31 | Block - Anvil | R096123 | |
| 32 | Fronthead (1 1/4" Hex.) (Includes item No. 33) | R092918 | |
| 33 | Bushing - Fronthead (1 1/4") | R040635 | |
| 34 | Fronthead (1 1/8" Hex.) (Includes item No. 35) | R092917 | |
| 35 | Bushing - Fronthead (1 1/8") | R090122 | |
| 36 | Side bolt kit, includes one pair of complete | Z3629448 | |
| bolt assembly (Item No. 28, 37, 38 & 39) | |||
| 37 | Spring - Fronthead | R092915 | |
| 38 | Lock - Fronthead nut | R096059 | |
| 39 | Nut - Fronthead bolt | F037789 | |
| 40 | Latch kit | Z8320448 | |
| (Includes item No. 41, 42, 43, 44, 45, 47 & 48) | |||
| 41 | Lock nut | P008999 | |
| 42 | Bushing - Retainer bolt | R076562 | |
| 43 | Spring - Latch plunger | R092911 | |
| 44 | Plunger - Retainer latch | R092910 | |
| 45 | Bolt - Retainer latch | R076853 | |
| 46 | Latch - Retainer complete | R092909 | |
| (Includes item No. 47 & 48) | |||
| 47 | Bushing - Retainer latch | R050894 | |
| 48 | Latch - Retainer | -- | |
| 49 | Muffler complete | K3206448 | |
| (Includes item No. 50 & 51) | |||
| 50 | Hood - Muffler | F814004 | |
| 51 | Screw - Allen cap | R117415 | |
| 52 | Block - Driving | R043649 | |
| 53 | Fronthead (Spike driver) (7.69") | R043644 | |
| 54 | Backhead assembly | R145778 | |
| (Includes item No. 55 to 75 & 4, 18, 19 & 20) | |||
| 55 | Cover - Buffer | R157669 | |
| 56 | Pin - Lever | R145866 | |
| 57 | Lever | R145781 | |
| 58 | Grip | R145788 | |
| 59 | Handle | R146841 | |
| 60 | Steel washer | R145861 | |
| 61 | Oil - Plug sq.hd. | R004975 | |
| 62 | Plug | Q3217400 | |
| 63 | Pin - Roll | 0108153500 | |
| 64 | Spring | R147757 | |
| 65 | Pin - Stepped | R157670 | |
| 66 | Backhead | -- | |
| 67 | Gasket | R147756 | |
| 68 | Upper valve lid | R138490 | |
| 69 | Valve case | R138489 | |
| 70 | Valve | R138488 | |
| 71 | Lower valve lid | R145787 | |
| 72 | O-ring | R137341 | |
| 73 | O-ring | R154983 | |
| 74 | Throttle valve | R145782 | |
| (Includes item No. 75, 18 & 19) | |||
| 75 | Throttle valve | -- | |
| 76 | Block - Driving - Ext. lg. | R147441 | |
| 77 | Fronthead (Spike driver) (12.69") | R147439 |
