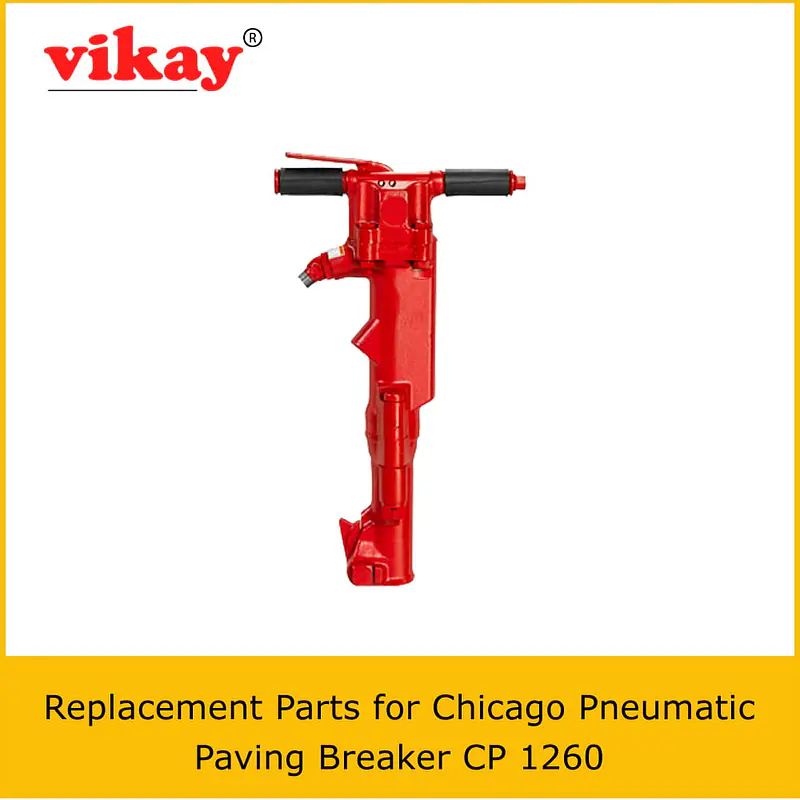

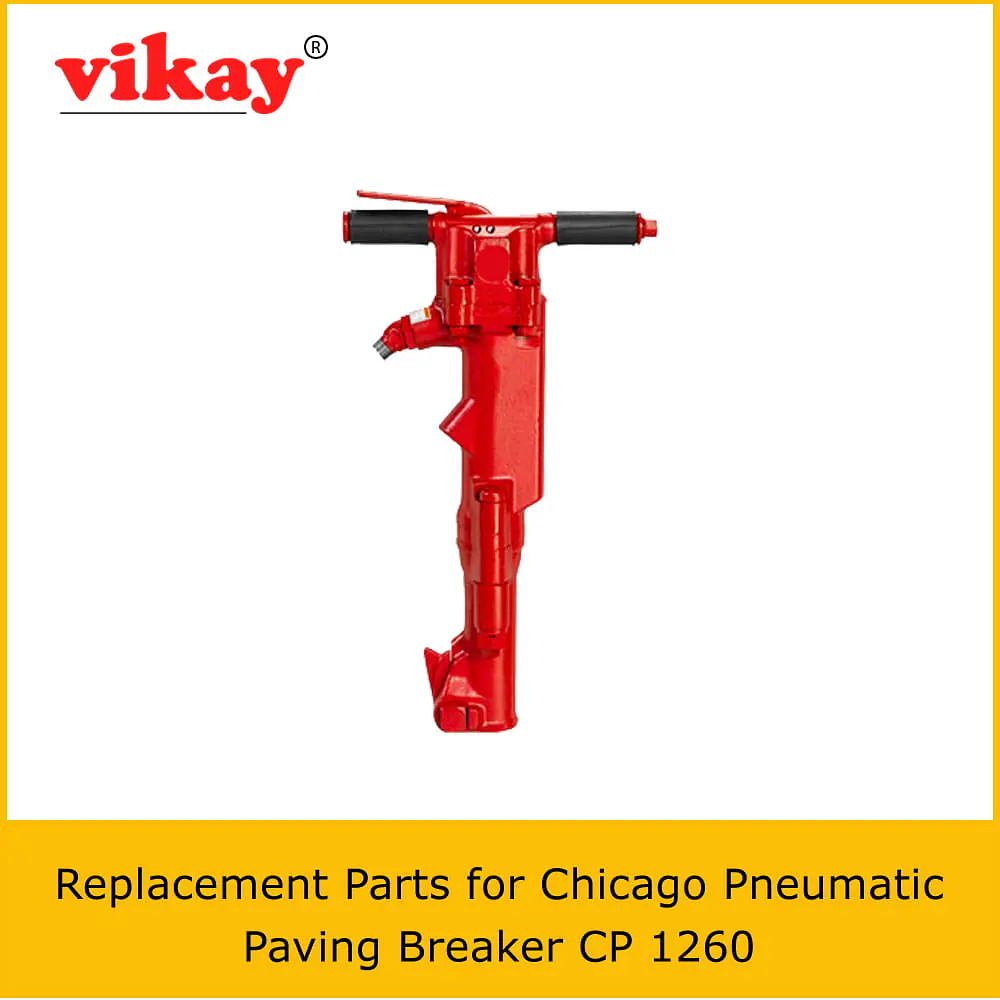

CP 1260 Chicago Pneumatic Paving Breaker Parts
Regular price
₹0.00
CP 1260 Chicago Pneumatic Paving Breaker Parts
Regular price
₹0.00
DESCRIPTION

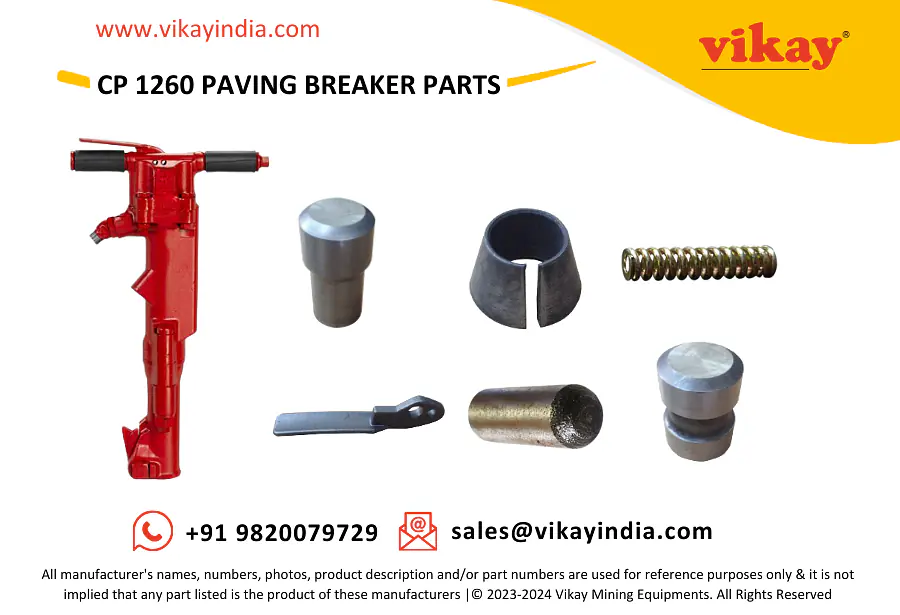

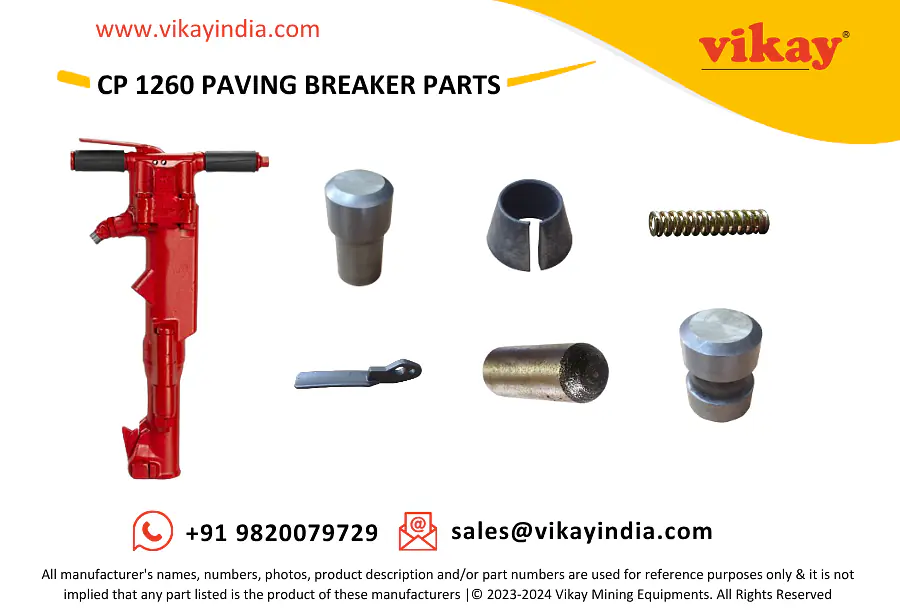

CP-1260 Paving Breaker Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts - Chicago Pneumatic Paving Breaker CP-1260 from India.
Product
- Page 1
Paving Braker CP-1260 Parts
| Sr. No | Description | Ref. Part No. | |
| 1(2-7) | Backhead, complete | 3303005383 | |
| 2 | Backhead | - | |
| 3 | Trigger | F814725 | |
| 4 | Spring pin | R133433 | |
| 5 | Plug - oil | R075031 | |
| 6 | Oil wick | C036901 | |
| 7 | Rubber grip | 3303005276 | |
| 8 | Nut | 261109953 | |
| 9 | Screw | 147195960 | |
| 10(11-16) | Valve case, complete | 3303005384 | |
| 11 | Washer | 3303005311 | |
| 12 | Plug - valve case | P009876 | |
| 13 | O-ring | R049854 | |
| 14 | Valve case | R047958 | |
| 15 | Valve | 3303005327 | |
| 16 | Lid - valve case | R047960 | |
| 17(18-20) | Valve - throttle, complete | R092894 | |
| 18 | Valve - throttle | - | |
| 19 | Seal - throttle valve | R098368 | |
| 20 | Retaining ring - throttle valve | R098369 | |
| 21 | Spring - throttle valve | R005717 | |
| 22 | Seal - cylinder | R047965 | |
| 23 | Cylinder | 3303005271 | |
| 24 | Lock washer | 3310105900 | |
| 25 | Swivel nut | 3310104400 | |
| 26 | O-ring | 663212600 | |
| 27 | Swivel | 3303005012 | |
| 28 | Plug | - | |
| 29 | Piston | R047967 | |
| 30 | Bushing - anvil block | R047966 | |
| 31 | Block - anvil | R085260 | |
| 32 | Drive screw | P081333 | |
| 33(34-37) | Side bolt, complete | 3303005385 | |
| 34 | Bolt - fronthead | R047970 | |
| 35 | Buffer | 3303005312 | |
| 36 | Lock washer - fronthead bolt | R090584 | |
| 37 | Nut - fronthead | R005721 | |
| 38(39-44) | Latch, complete | 3303005388 | |
| 39 | Nut | P008999 | |
| 40 | Bushing - retainer latch | R076562 | |
| 41 | Spring - plunger | R086982 | |
| 42 | Bolt - latch | R076853 | |
| 43 | Plunger - latch | R092497 | |
| 44 | Retainer - latch | 3303005365 | |
| 45 | Data plate | - | |
| 46 | Product label | 3303005310 | |
| 47(48-49) | Fronthead, complete | 3303005391 | |
| 48 | Fronthead | - | |
| 49 | Bushing - fronthead | R040635 | |
| 50(51-52) | Fronthead, complete | 3303005392 | |
| 51 | Fronthead | - | |
| 52 | Bushing - fronthead | R090122 | |
| 53 | Label | 3310160200 |
