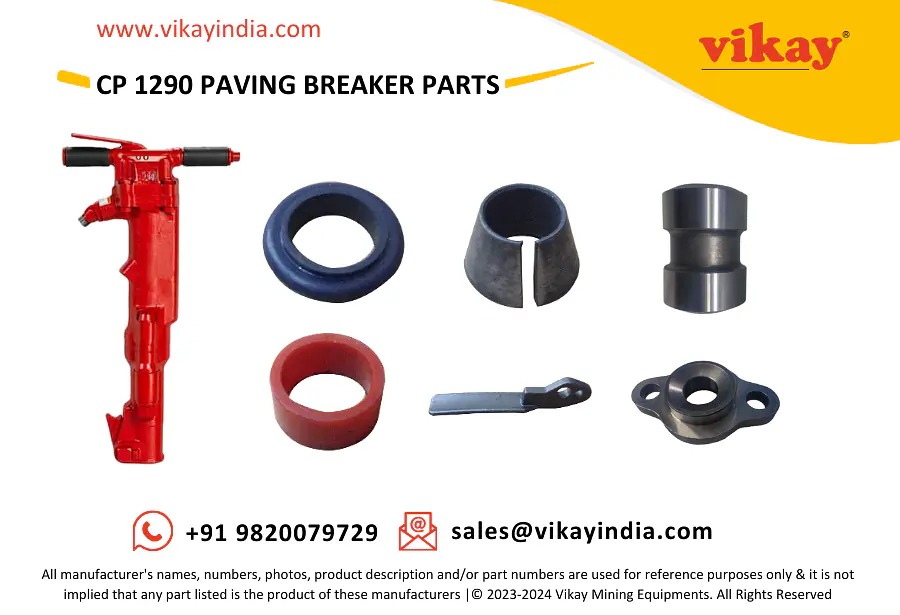

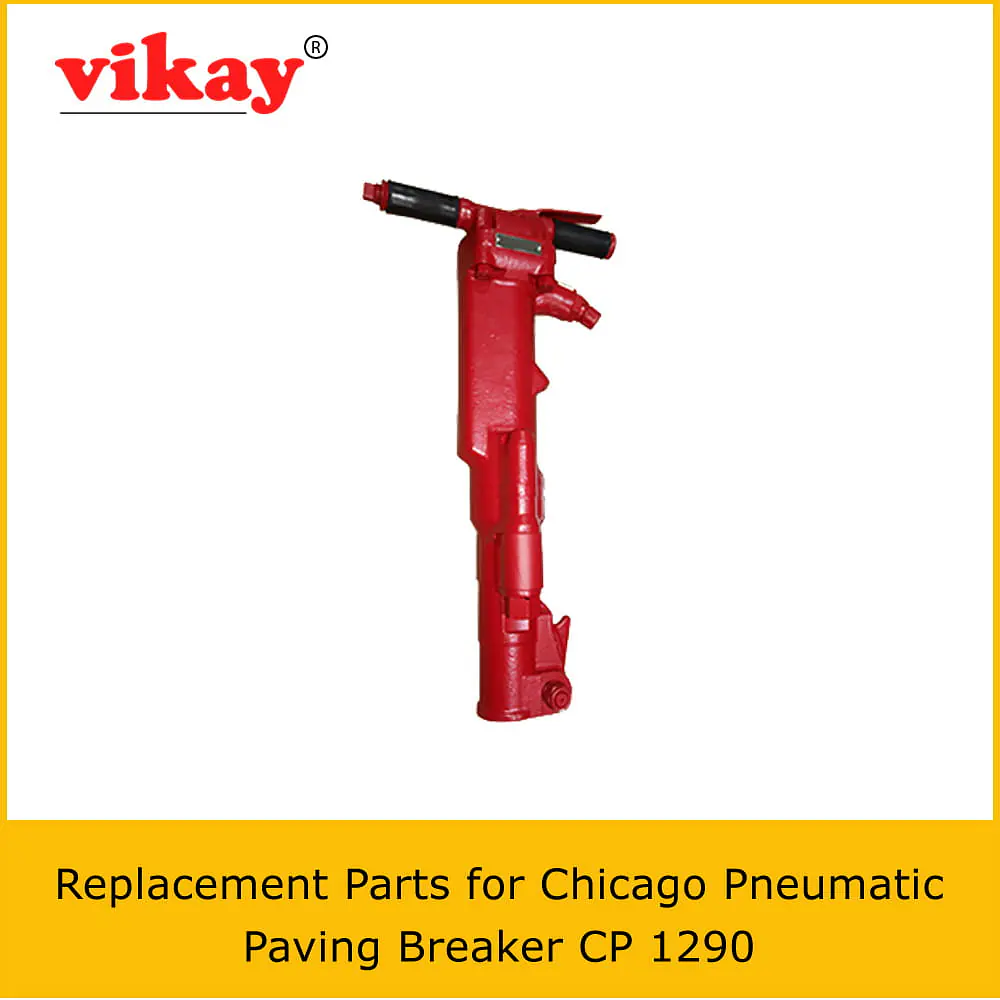

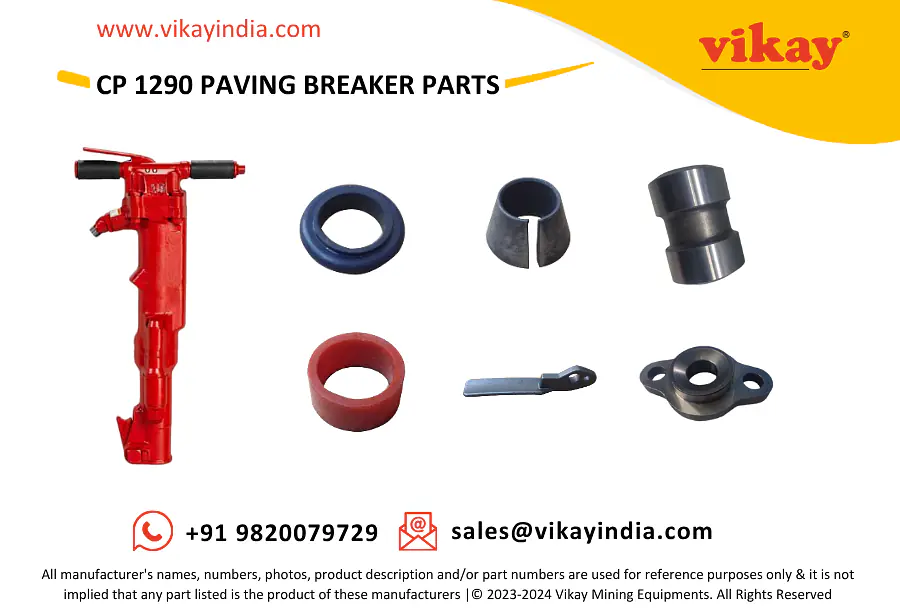

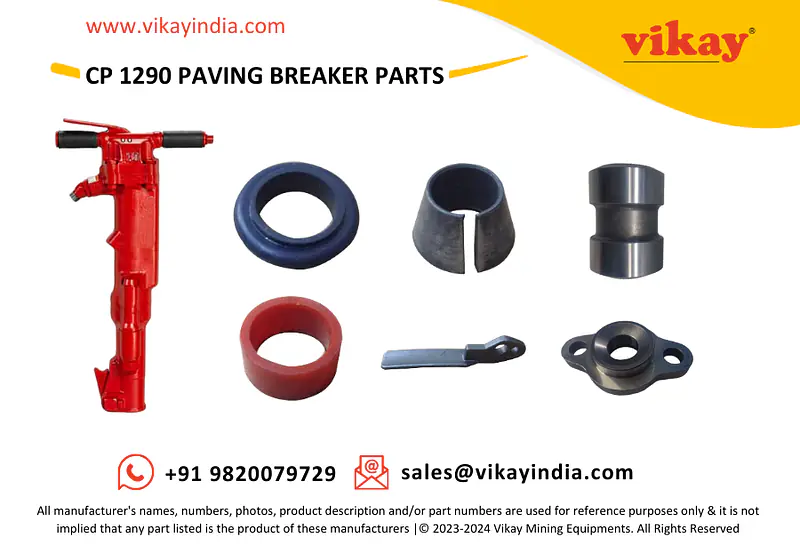

CP 1290 Chicago Pneumatic Paving Breaker Parts
Regular price
₹0.00
CP 1290 Chicago Pneumatic Paving Breaker Parts
Regular price
₹0.00
DESCRIPTION
CP-1290 Paving Breaker Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts - Chicago Pneumatic Paving Breaker CP-1290 from India.
Product
- Page 1
Paving Braker CP-1290 Parts
| Sr. No | Description | Ref. Part No. | |
| 1(2-7) | Backhead, complete | 3303005370 | |
| 2 | Backhead | - | |
| 3 | Trigger | F814725 | |
| 4 | Pin - spring | R133433 | |
| 5 | Plug - oil | R075031 | |
| 6 | Oil wick | C036901 | |
| 7 | Rubber grip | 3303005276 | |
| 8 | Nut | 261109953 | |
| 9 | Screw | 147195960 | |
| 10 | Drive screw | P081333 | |
| 11(12-16) | Valve case, complete | R122977 | |
| 12 | Washer | R085259 | |
| 13 | O-ring | P083094 | |
| 14 | Valve case | R092904 | |
| 15 | Valve | R122975 | |
| 16 | Guide - valve | R122976 | |
| 17(18-20) | Valve throttle, complete | R092894 | |
| 18 | Valve - throttle | - | |
| 19 | Seal - throttle valve | R098368 | |
| 20 | Retaining ring - valve seal | R098369 | |
| 21 | Spring - throttle valve | R005717 | |
| 22 | Seal - cylinder | R047965 | |
| 23 | Cylinder | 3303005285 | |
| 24 | Plug | - | |
| 25 | Lock washer | 3310105900 | |
| 26 | Swivel nut | 3310104400 | |
| 27 | O-ring | 663212600 | |
| 28 | Swivel | 3303005012 | |
| 29 | Piston | R000127 | |
| 30 | Bushing - anvil block | R092907 | |
| 31 | Block - anvil | R096123 | |
| 32 | Product label | 3303005310 | |
| 33(34-37) | Side bolt, complete | 3303005374 | |
| 34 | Bolt - fronthead | F037790 | |
| 35 | Buffer | 3303005313 | |
| 36 | Lock washer - fronthead bolt | R096059 | |
| 37 | Nut - fronthead bolt | F037789 | |
| 38(39-43,44) | Latch, complete | 3303005055 | |
| 39 | Nut | P008999 | |
| 40 | Bushing - retainer latch | R076562 | |
| 41 | Spring - plunger | R092911 | |
| 42 | Bolt - latch | R076853 | |
| 43 | Plunger - latch | R092910 | |
| 44(45-46) | Latch retainer, complete | R092909 | |
| 45 | Bushing | R050894 | |
| 46 | Latch- retainer | - | |
| 47 | Data plate | - | |
| 48(49-50) | Fronthead, complete | R092918 | |
| 49 | Fronthead | - | |
| 50 | Bushing - fronthead | R040635 | |
| 51(52-53) | Fronthead, complete | R092917 | |
| 52 | Fronthead | - | |
| 53 | Bushing - fronthead | R090122 | |
| 54 | Label | 3310160200 |
