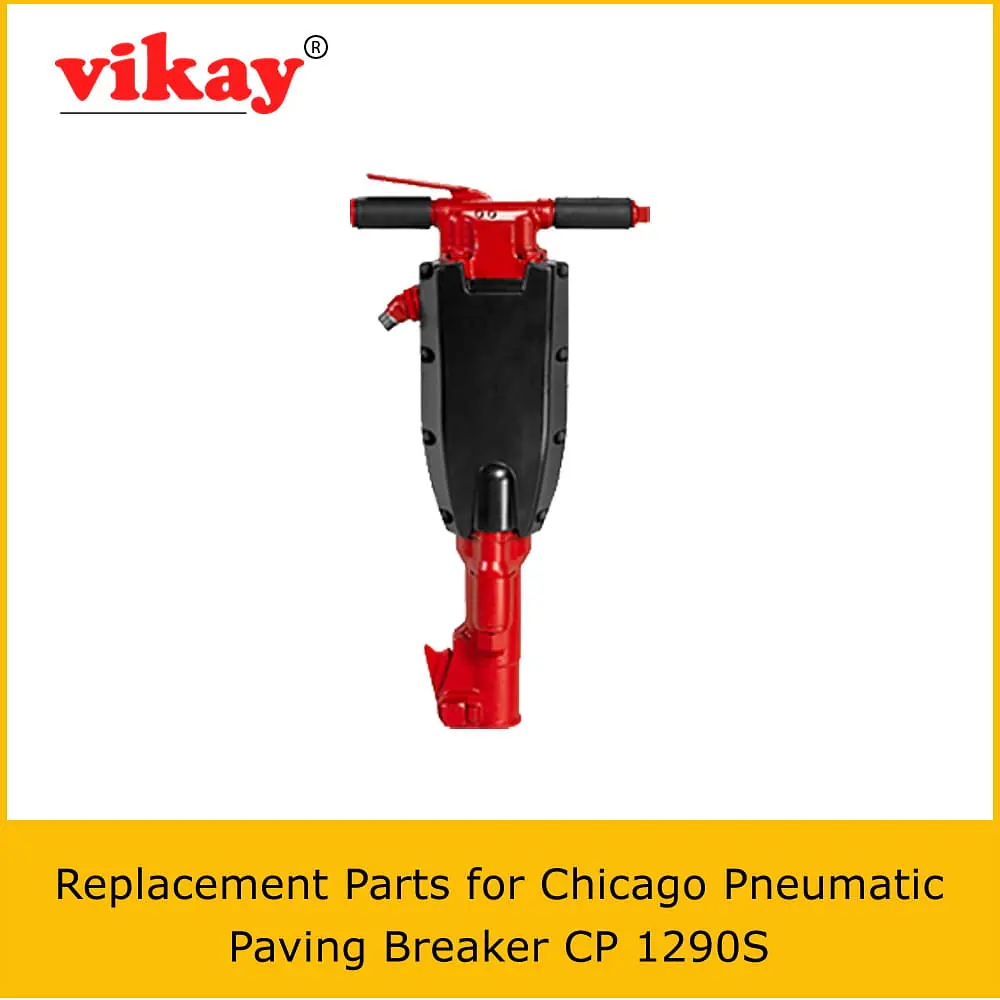

CP 1290S Chicago Pneumatic Paving Breaker Parts
Regular price
₹0.00
CP 1290S Chicago Pneumatic Paving Breaker Parts
Regular price
₹0.00
DESCRIPTION

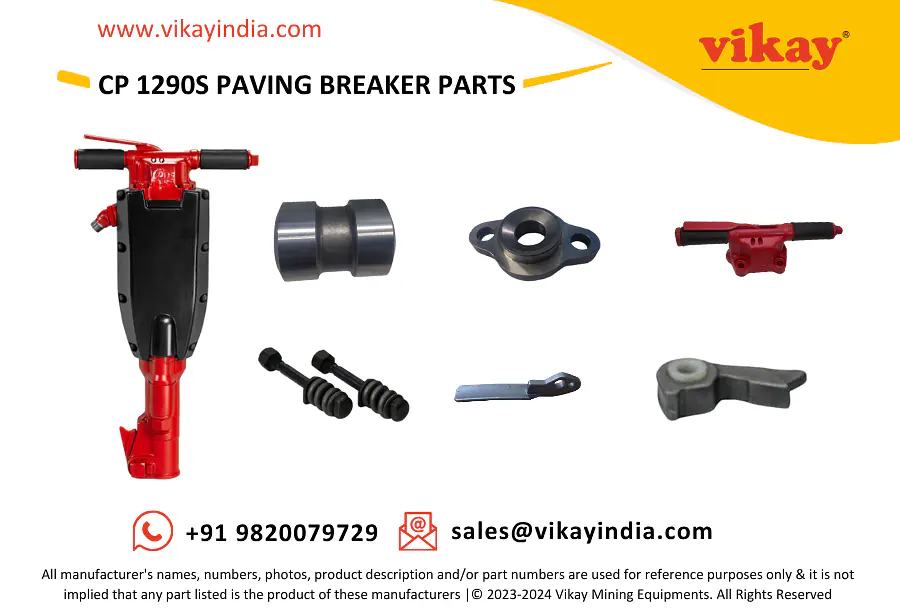

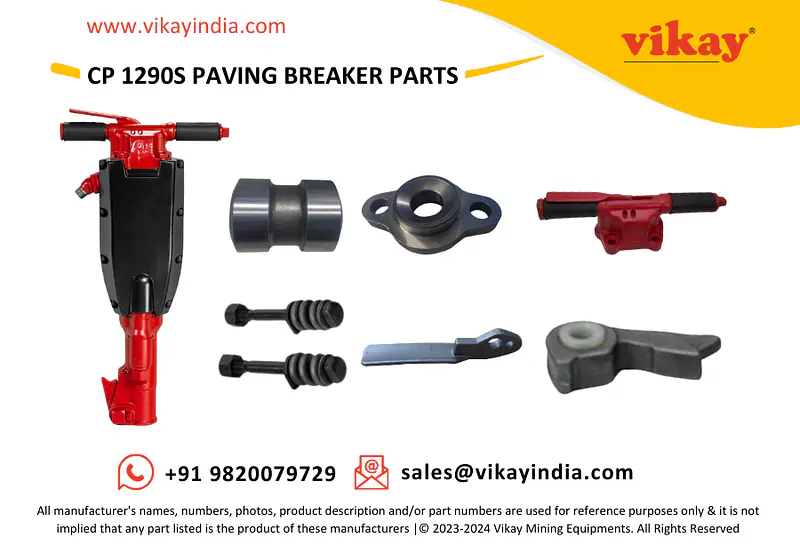

CP-1290S Paving Breaker Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts - Chicago Pneumatic Paving Breaker CP-1290S from India.
Product
- Page 1
Paving Braker CP-1290S Parts
| Sr. No | Description | Ref. Part No. | |
| 1(2-7) | Backhead, complete | 3303005370 | |
| 2 | Backhead | - | |
| 3 | Trigger | F814725 | |
| 4 | Pin - spring | R133433 | |
| 5 | Plug - oil | R075031 | |
| 6 | Oil wick | C036901 | |
| 7 | Rubber grip | 3303005276 | |
| 8 | Screw | 147195960 | |
| 9(10-14) | Valve case, complete | R122977 | |
| 10 | Washer | R085259 | |
| 11 | O-ring | P083094 | |
| 12 | Valve case | R092904 | |
| 13 | Valve | R122975 | |
| 14 | Guide valve | R122976 | |
| 15(16-18) | Throttle valve, complete | R092894 | |
| 16 | Throttle valve | - | |
| 17 | Seal - throttle valve | R098368 | |
| 18 | Retaining ring - valve seal | R098369 | |
| 19 | Spring - throttle valve | R005717 | |
| 20 | Seal - cylinder | R047965 | |
| 21 | Cylinder | 3303005285 | |
| 22 | Swivel nut | 3310104400 | |
| 23 | Lock washer | 3310105900 | |
| 24 | O-ring | 663212600 | |
| 25 | Swivel | 3303005012 | |
| 26 | Plug | C090659 | |
| 27 | Piston | R000127 | |
| 28 | Bushing - anvil block | R092907 | |
| 29 | Block - anvil | R096123 | |
| 30 | Product label | 3303005310 | |
| 31 | Drive screw | P081333 | |
| 32(33-36) | Side bolt, complete | 3303005374 | |
| 33 | Bolt - fronthead | F037790 | |
| 34 | Buffer | 3303005313 | |
| 35 | Lock washer - fronthead bolt | R096059 | |
| 36 | Nut - fronthead bolt | F037789 | |
| 37(38-42,43) | Latch, complete | 3303005055 | |
| 38 | Lock nut | P008999 | |
| 39 | Bushing - latch retainer | R076562 | |
| 40 | Spring - plunger | R092911 | |
| 41 | Plunger - latch | R092910 | |
| 42 | Bolt - latch | R076853 | |
| 43(44-45) | Latch retainer, complete | R092909 | |
| 44 | Bushing | R050894 | |
| 45 | Latch - retainer | - | |
| 46(47-53) | Muffler, complete | 3303005377 | |
| 47 | Muffler | 3303005320 | |
| 48 | Flange screw | 147300032 | |
| 49 | O-ring | 663214600 | |
| 50 | Flange nut | 9232020750 | |
| 51 | Separation wall | 3303005298 | |
| 52 | O-ring | 663214900 | |
| 53 | Separation wall | 3303005297 | |
| 54 | Label | H4184044 | |
| 55 | Label | 3310160200 | |
| 56 | Data plate | - | |
| 57(58-59) | Fronthead, complete | R092918 | |
| 58 | Fronthead | - | |
| 59 | Bushing - fronthead | R040635 | |
| 60(61-62) | Fronthead, complete | R092917 | |
| 61 | Fronthead | - | |
| 62 | Bushing - fronthead | R090122 | |
| 63 | Nut | 261109953 |
