DESCRIPTION

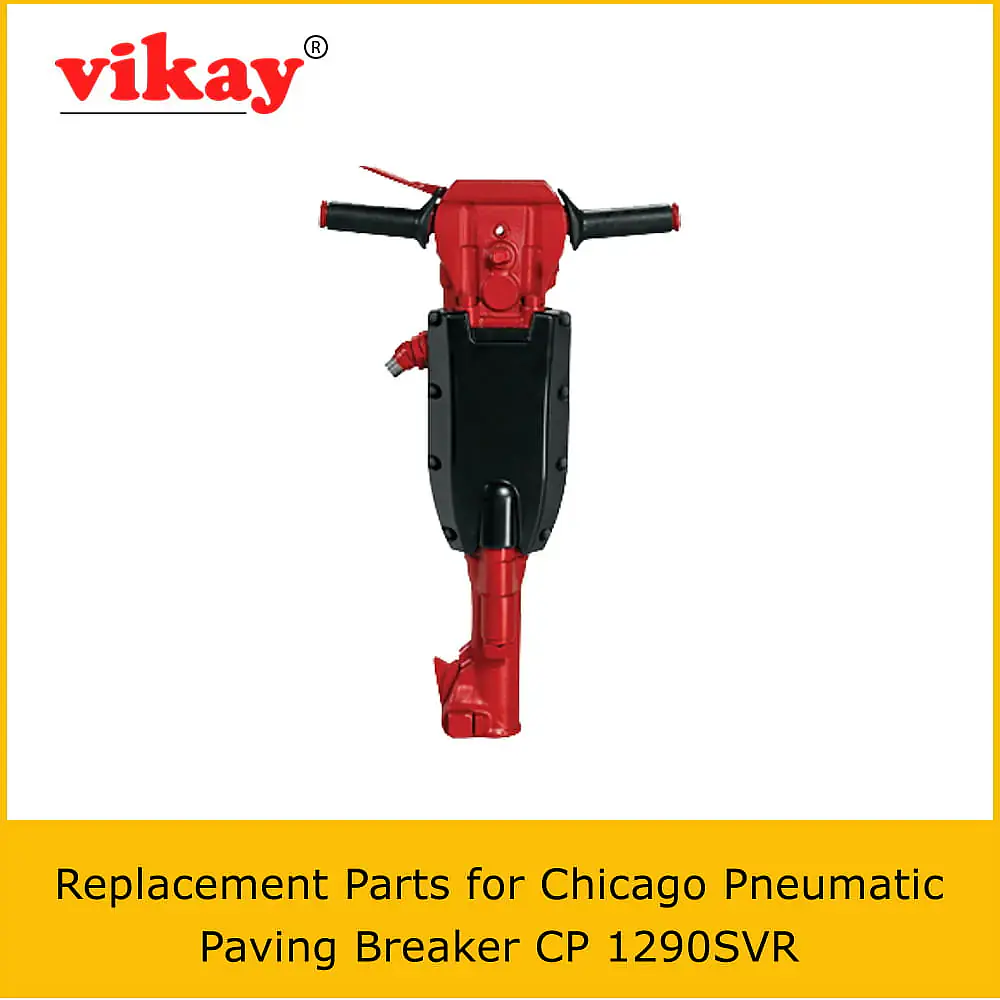

CP-1290SVR Paving Breaker Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts - Chicago Pneumatic Paving Breaker CP-1290SVR from India.
Product
- Page 1

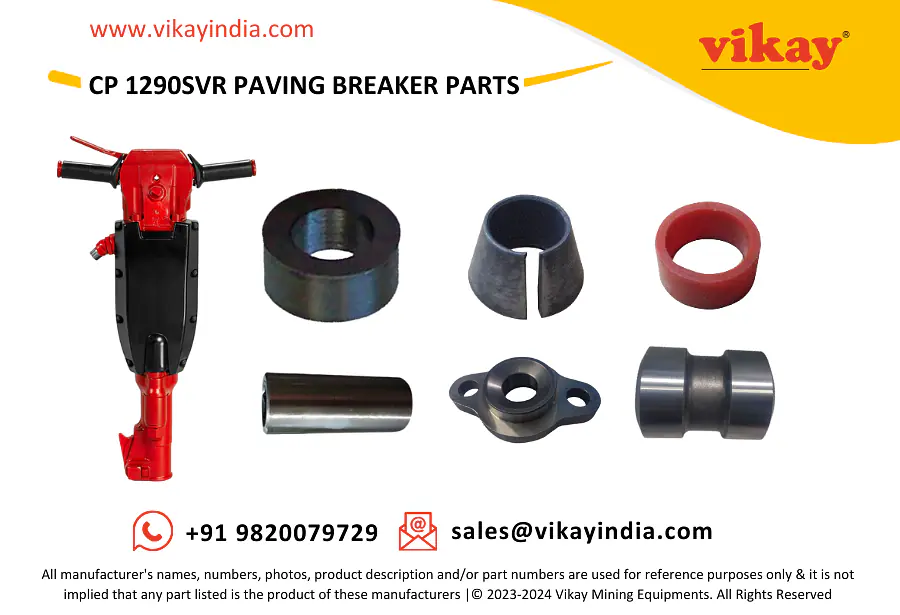

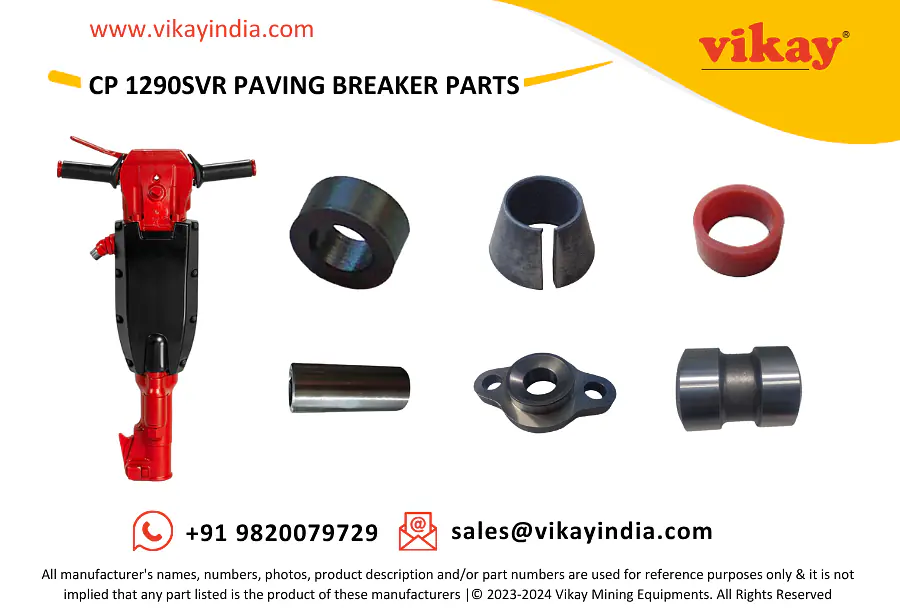

Paving Braker CP-1290SVR Parts
| Sr. No | Description | Ref. Part No. | |
| 1(2-12) | Backhead, complete | 3303005378 | |
| 2 | Cover | 3303005364 | |
| 3 | Spring - handle | 3303005362 | |
| 4 | Backhead | - | |
| 5 | Spring pin | 108132200 | |
| 6 | Spring pin | 108153500 | |
| 7 | Rubber grip | 3303005307 | |
| 8 | Handle | 3303005281 | |
| 9 | Spring pin | 108133100 | |
| 10 | Trigger | 3303005305 | |
| 11 | Oil wick | C036901 | |
| 12 | Plug - oil | R075031 | |
| 13(14-18) | Valve case, complete | R122977 | |
| 14 | Washer | R085259 | |
| 15 | O-ring | P083094 | |
| 16 | Valve case | R092904 | |
| 17 | Valve | R122975 | |
| 18 | Guide - valve | R122976 | |
| 19(20-22) | Valve throttle, complete | 3303005379 | |
| 20 | Valve - throttle | - | |
| 21 | Seal - throttle valve | R098368 | |
| 22 | Retaining ring - valve seal | R098369 | |
| 23 | Spring - throttle valve | R005717 | |
| 24 | Nut | 261109953 | |
| 25 | Screw | 211171105 | |
| 26 | Seal - cylinder | R047965 | |
| 27 | Plug - pipe | C090659 | |
| 28 | Swivel nut | 3310104400 | |
| 29 | Lock washer | 3310105900 | |
| 30 | O-ring | 663212600 | |
| 31 | Swivel | 3303005012 | |
| 32 | Piston | R000127 | |
| 33(34-37) | Side bolt, complete | 3303005374 | |
| 34 | Bolt - fronthead | F037790 | |
| 35 | Buffer | 3303005313 | |
| 36 | Lock washer - fronthead bolt | R096059 | |
| 37 | Nut - fronthead | F037789 | |
| 38 | Bushing - anvil block | R092907 | |
| 39 | Block - anvil | R096123 | |
| 40 | Cylinder | 3303005285 | |
| 41(42-46,47) | Latch, complete | 3303005055 | |
| 42 | Lock nut | P008999 | |
| 43 | Bushing - latch retainer | R076562 | |
| 44 | Spring - plunger | R092911 | |
| 45 | Bolt - latch | R076853 | |
| 46 | Plunger - latch | R092910 | |
| 47(48-49) | Latch retainer, complete | R092909 | |
| 48 | Bushing | R050894 | |
| 49 | Latch - retainer | - | |
| 50 | Product label | 3303005310 | |
| 51 | Drive screw | P081333 | |
| 52 | Label | 3310160200 | |
| 53(54-60) | Muffler, complete | 3303005377 | |
| 54 | Muffler | 3303005320 | |
| 55 | Flange screw | 147300032 | |
| 56 | Flange nut | 9232020750 | |
| 57 | O-ring | 663214600 | |
| 58 | O-ring | 663214900 | |
| 59 | Separation wall | 3303005297 | |
| 60 | Separation wall | 3303005298 | |
| 61 | Label | H4184044 | |
| 62(63-64) | Fronthead, complete | R092918 | |
| 63 | Fronthead | - | |
| 64 | Bushing - fronthead | R040635 | |
| 65(66-67) | Fronthead, complete | R092917 | |
| 66 | Fronthead | - | |
| 67 | Bushing - fronthead | R090122 | |
| 68 | Data plate | - |
