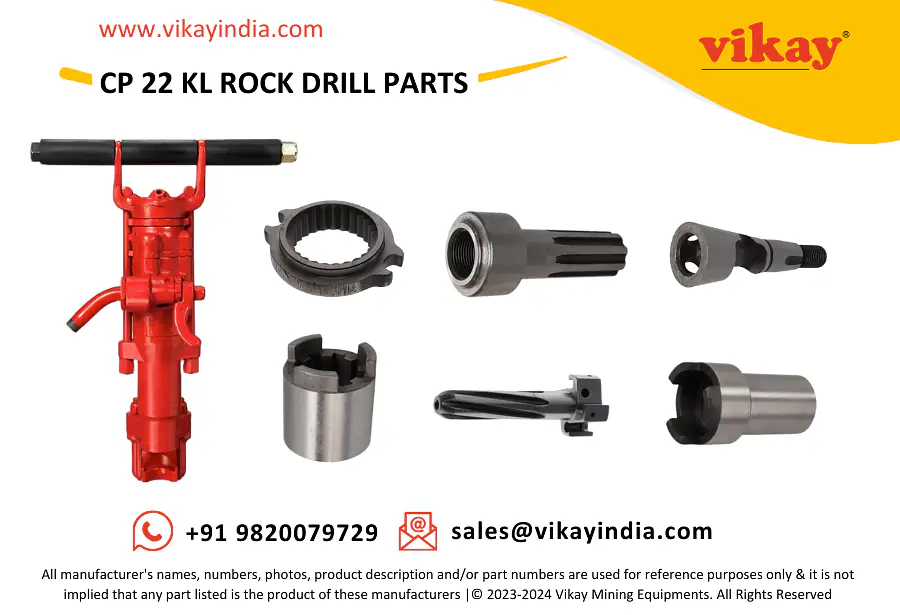

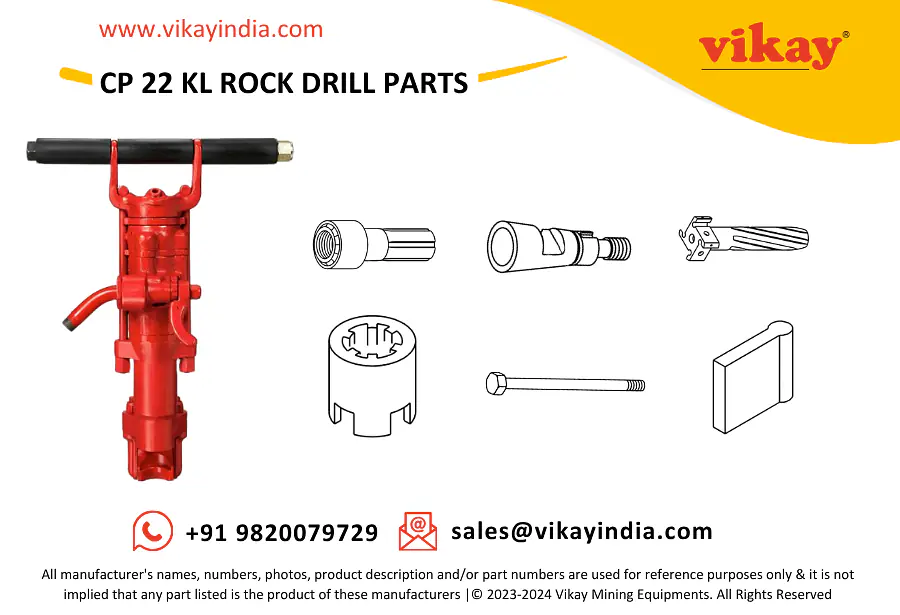

Cp 22 KL Chicago Pneumatic Rock Drill Parts
Regular price
₹0.00
Cp 22 KL Chicago Pneumatic Rock Drill Parts
Regular price
₹0.00
DESCRIPTION

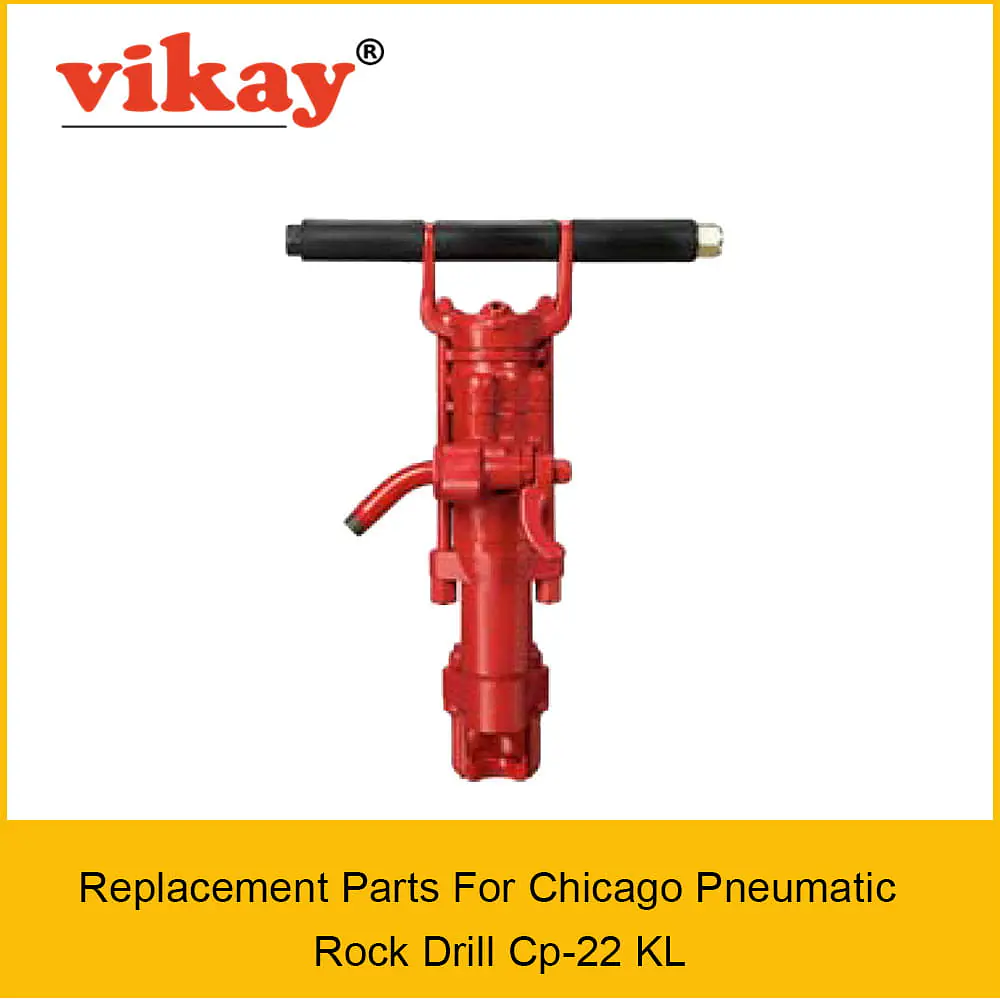

Cp-22 KL Rock Drill Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts - Chicago Pneumatic Rock Drill Cp-22 KL from India.
Cp-22 KL Parts
| Sr. No | Description | Ref. Part No. |
| 1 | Bolt-Handle | R075584 |
| 2 | Grip-Handle | R000692 |
| 3 | Liner-Handle | R000694 |
| 4 | Washer-Bolt Key | R000142 |
| 5 | Nut-Elastic Stop | R005742 |
| 6 | Bolt-Thru | R075601 |
| 7(8-9) | Backhead, Complete | F035373 |
| 8 | Backhead | - |
| 9 | Washer-Backhead | R075580 |
| 1 | Plug-Pipe 3/8" | C077941 |
| 11 | Rod-Air | R075598 |
| 12 | Plunger-Pawl | R009224 |
| 13 | Spring-Pawl Plunger | R000619 |
| 14 | Pawl | R000617 |
| 15 | Bar-Rifle | R075586 |
| 16 | Ring-Ratchet | R075585 |
| 17 | Case-Valve | R075583 |
| 18 | Valve | R075581 |
| 19 | Valve seat | R075582 |
| 20 | Nut-Rifle | R075587 |
| 21 | Piston | R000037 |
| 22 | Cylinder | R075577 |
| 23(24-25) | Throttle Handle Complete | R075589 |
| 24 | Key-Throttle Handle | R075592 |
| 25 | Handle-Throttle Valve | ----- |
| 26 | Plunger-Throttle Handle | R075590 |
| 27 | Spring-Throttle Valve | R000528 |
| 28 | Nut-Elastic stop 1/2" - 20 | R075593 |
| 29 | Pin-Throttle handle 3/32" x 6/18" | P089767 |
| 30 | Valve-Throttle | R075588 |
| 31 | Nut-Air swivel | R075599 |
| 32 | O-ring | C106884 |
| 33 | Swivel-Air inlet | F814720 |
| 34 | Screen-Air Inlet | R005584 |
| 35 | Sleeve-Air Inlet | R005744 |
| 36 | Bushing-Cylinder | R075578 |
| 37 | Nut-Chuck rotation | R075597 |
| 38 | Chuck 7/8" x 3 1/4" (22 x 82.5 mm) | R075596 |
| 39 | Fronthead 7/8" x 3 1/4" (22 x 82.5 mm) | 3303005212 |
| 40 | Nut-Through bolt | R085164 |
| 41 | Trunnion | 3303521600 |
| 42 | Latch-Retainer | 3303521800 |
| 43 | Plate-Buffer | 3111560000 |
| 44 | Buffer | 3111570000 |
| 45 | Nut-Elastic stop | Q2122000 |
