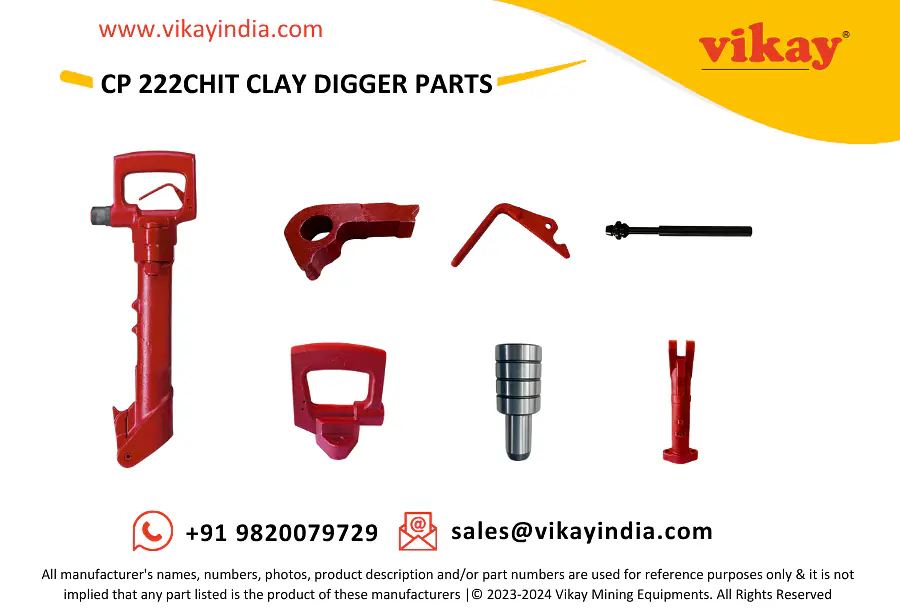

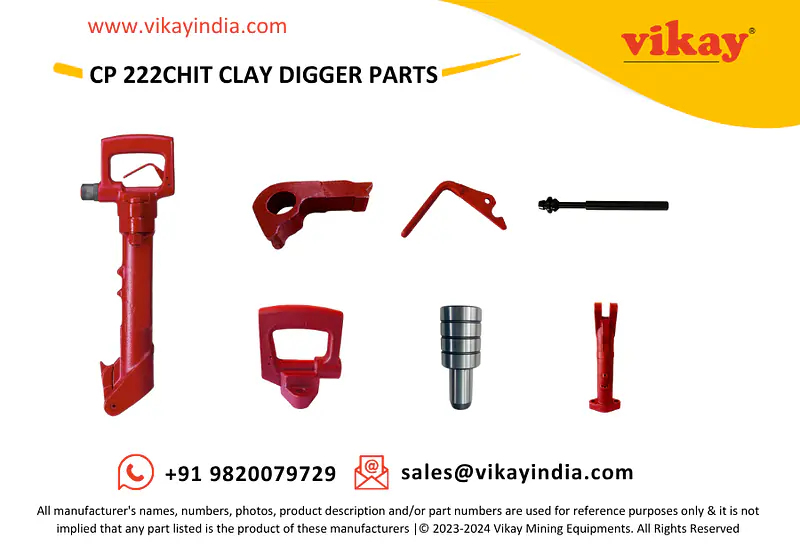

CP 222CHIT Chicago Pneumatic Clay Digger Parts
Regular price
₹0.00
CP 222CHIT Chicago Pneumatic Clay Digger Parts
Regular price
₹0.00
DESCRIPTION

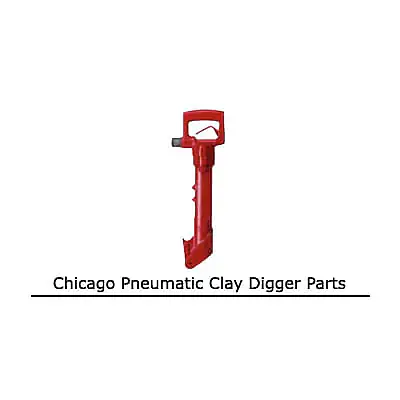

CP-222CHIT Clay Digger Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts - Chicago Pneumatic Clay Digger CP-222CHIT from India.
CP 222CHIT Chicago Pneumatic Clay Digger Parts
| Sr. No | Description | Part Number | Quantity |
| 1 | Outside trigger handle complete (Includes item No. 2, 3, 4, 6, 8, 9, 10, 11 & 36) | F815271 | 1 |
| 2 | Handle - Outside trigger | 1 | |
| 3 | Pin - Throttle lever | R133757 | 2 |
| 4 | Lever - Outside trigger | F815161 | 1 |
| 5 | Nipple - Air inlet NPT | F814130 | 1 |
| 6 | Bush | F813910 | 1 |
| 7 | Valve - Throttle (Incudes item No. 8 & 9) | F814812 | 1 |
| 8 | Valve - Throttle | 1 | |
| 9 | O-ring | P083071 | 1 |
| 10 | Washer - Tab | F814582 | 1 |
| 11 | Plug - Throttle valve (Outside trigger) | P814440 | 1 |
| 12 | Bolt - Handle | F813911 | 2 |
| 13 | Pad - Valve case preload | F813908 | 1 |
| 14 | Lid - Upper valve case | F814774 | 1 |
| 15 | Valve | F012659 | 1 |
| 16 | Case - Valve | F814776 | 1 |
| 17 | Lid - Lower valve case | F814775 | 1 |
| 18 | Piston | F815015 | 1 |
| 19 | Lock washer (5/8 " ) | R000550 | 2 |
| 20 | Nut - Self locking (5/8 - 18) | P081091 | 2 |
| 21 | Cylinder assembly (Includes item No. 22 & 23) | F815268 | 1 |
| 22 | Cylinder | 1 | |
| 23 | Sleeve - Tool | F813919 | 1 |
| 24 | Retainer - Latch (Includes Item No. 25 & 26) | F815269 | 1 |
| 25 | Retainer - Latch | 1 | |
| 26 | Bushing - Latch | F815174 | 1 |
| 27 | Pin - Latch Retainer (1/2 " Dia. X 2 1/2 " ) | R133758 | 2 |
| 28 | Spring-Retainer latch plunger | R086982 | 1 |
| 29 | Plunger - Latch | F813308 | 1 |
| 30 | Muffler (optional) (Includes item No. 31 & 32) | R141765 | 1 |
| 31 | Screw - Hex socket (1/4 - 28 x 5/8) | P072446 | 4 |
| 32 | Muffler | 1 | |
| 33 | Inside - Trigger handle complete (Includes item No. 3, 5, 6, 8, 9, 34, 35) | F815852 | 1 |
| 34 | Lever - Inside trigger | F815167 | 1 |
| 35 | Handle - Inside trigger | F815276 | 1 |
| 36 | Nipple - Air inlet (BSP) | F035769 | 1 |
Useful information
| Tool model | Trigger | Air inlet bushing thread | Muffler present | Part Number |
| CP0222 CHIT | Inside trigger | NPT | no | T022181 |
| CP0222 CHIT BS | Inside trigger | BSP | yes | T022325 |
| CP0222 CHOT BS | Outside trigger | BSP | yes | T022323 |
