DESCRIPTION

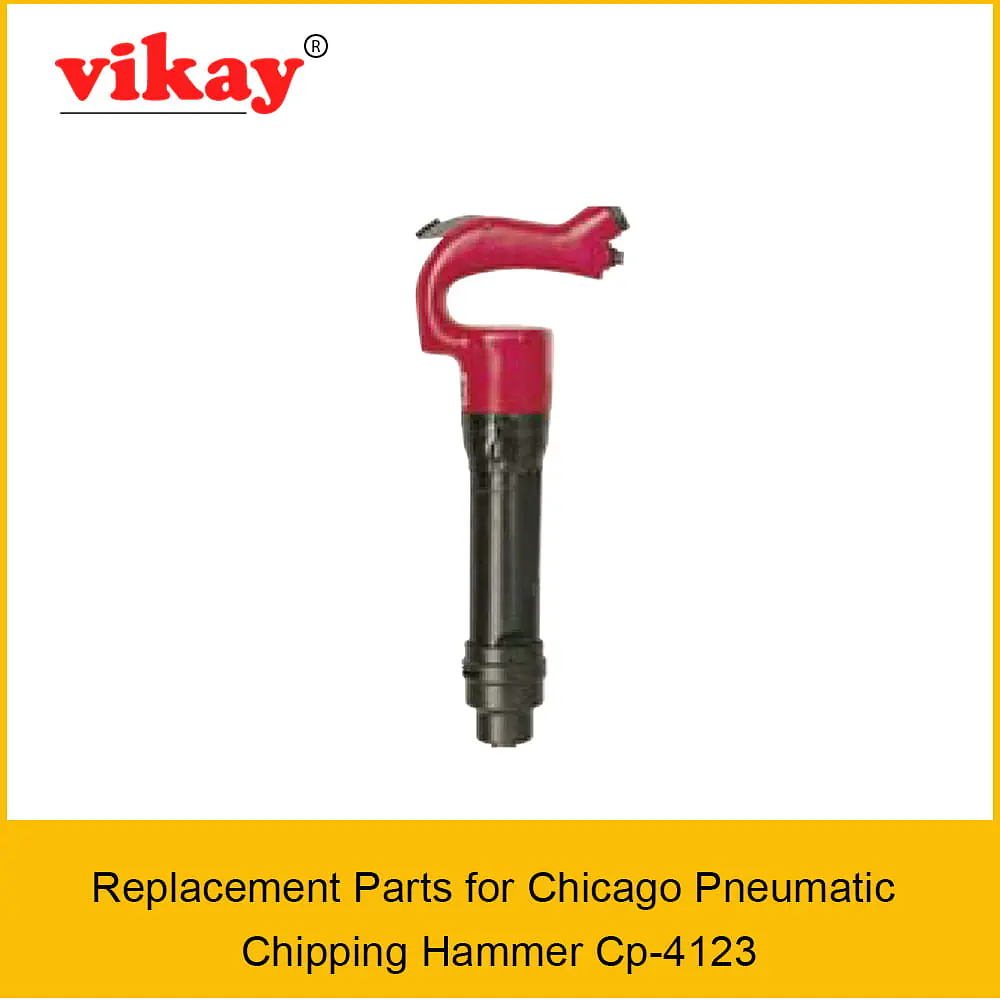

Cp-4123 Chipping Hammer Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts - Chicago Pneumatic Chipping Hammer Cp-4123 from India
Product
- Page 1

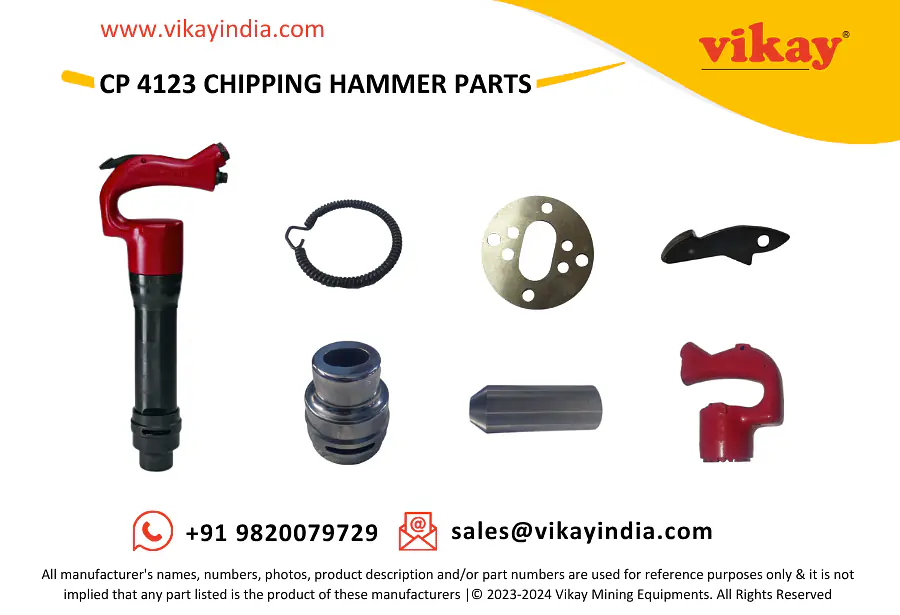

Chipping Hammer Cp-4123 Parts
| Sr. No | Description | Ref. Part No. | |
| 1 | Handle assembly (Includes item No. 2, 3, 5, | Z9983830 | |
| 6, 7, 8, 9, 10, 11, 12, 13 & 14) | |||
| 2 | Plug - Throttle valve | P001873 | |
| 3 | Spring - Throttle valve | P001853 | |
| 4 | Valve - Throttle complete | P001768 | |
| (Includes item No. 5 & 6) | |||
| 5 | Valve - Throttle | -- | |
| 6 | O-ring | P083071 | |
| 7 | Pin - Throttle valve bush | P070719 | |
| 8 | Tube - Throttle valve | P071318 | |
| 9 | Bushing - Push pin | P070733 | |
| 10 | Bushing - Permanent | P009585 | |
| 11 | Handle | -- | |
| 12 | Pin - Throttle lever | A043627 | |
| 13 | Lever - Throttle | P009818 | |
| 14 | Screen | P092485 | |
| 15 | Valve case complete | P077013 | |
| (Includes item No. 16, 17, 18, 19 & 20) | |||
| 16 | Lid - Upper valve case | P071350 | |
| 17 | Valve | P071358 | |
| 18 | Case - Valve | P071352 | |
| 19 | Pin - Dowel (7/32" x 7/8") | A041797 | |
| 20 | Lid - Lower valve case | P071351 | |
| 21 | Piston (for 2" or 3" stroke version) | P118662 | |
| 22 | Piston (for 4" stroke version) | P118678 | |
| 23 | Cylinder | -- | |
| 24 | Sleeve - Chisel (Round) | P001550 | |
| 25 | Sleeve - Chisel (Hex) | P001551 | |
| 26 | Collar - Lock | P128247 | |
| 27 | Shield - Lock | P071355 | |
| 28 | Sleeve - Retainer | P107243 | |
| (Includes item No. 29 & 30) | |||
| 29 | Spring - Lock coil | P070994 | |
| 30 | Sleeve - Retainer | -- |
