DESCRIPTION

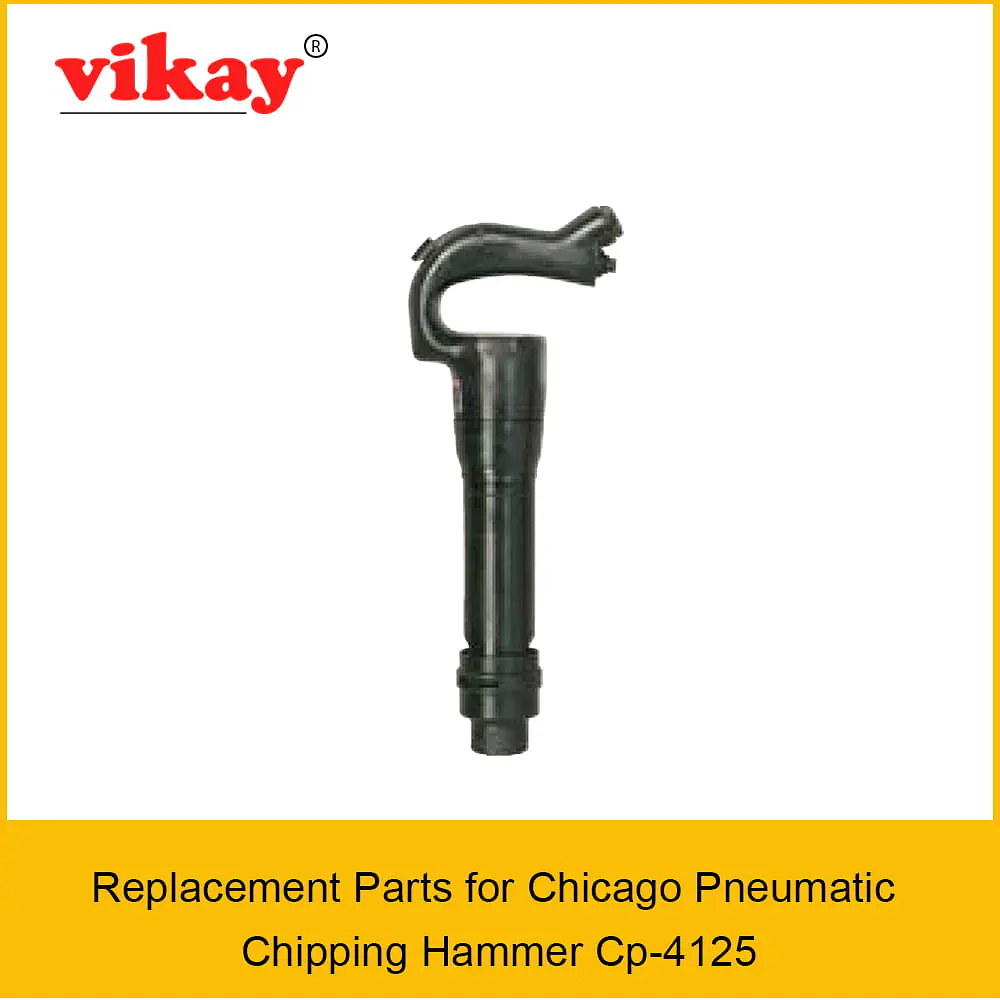

Cp-4125 Chipping Hammer Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts - Chicago Pneumatic Chipping Hammer Cp-4125 from India
Product
- Page 1

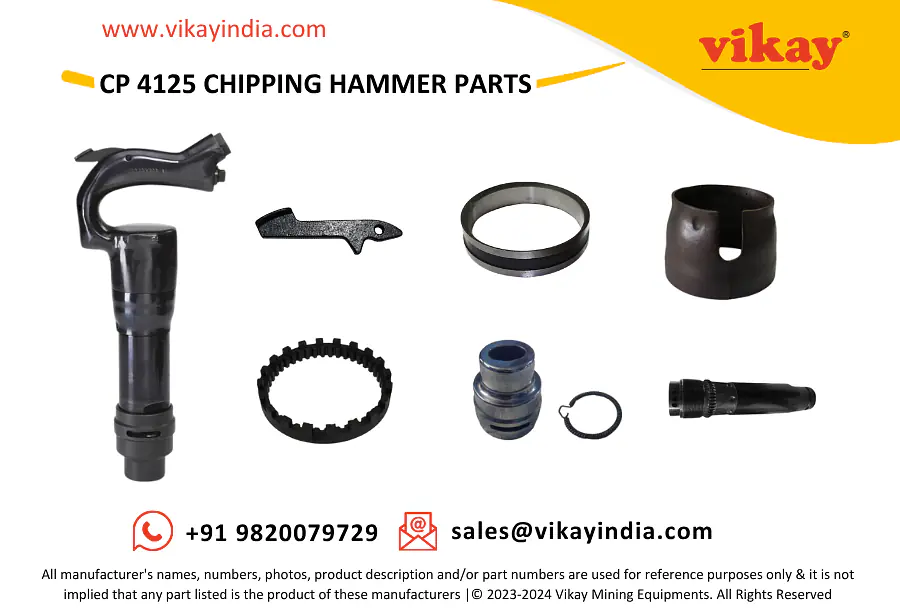

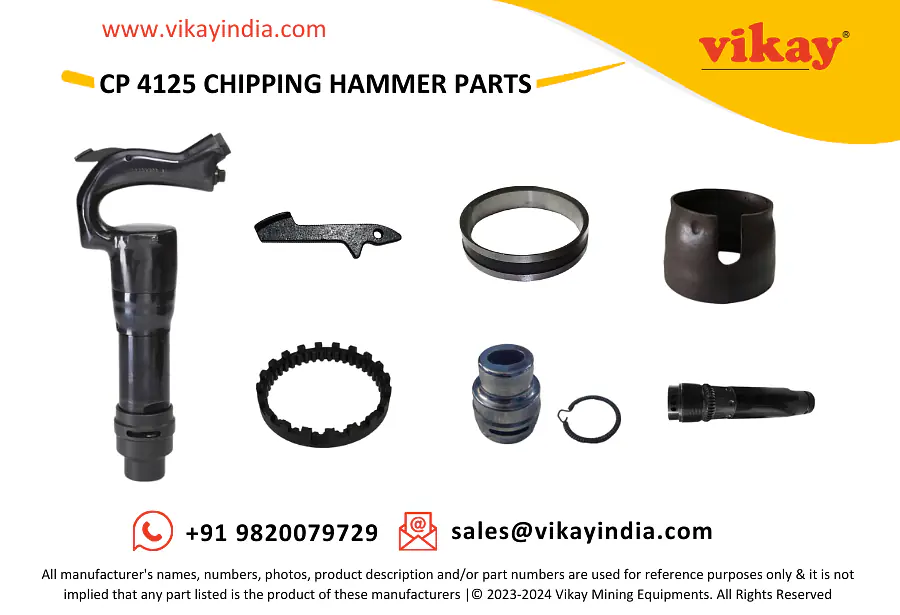

Chipping Hammer Cp-4125 PartsÂ
| Sr. No | Description | Ref. Part No. | |
| 1 | Handle assembly (Includes | P130242 | |
| item No. 2, 3, 5, 6, 7, 8, 9, 10, 11, 12 & 13) | |||
| 2 | Plug - Throttle valve | P001873 | |
| 3 | Spring - Throttle valve | P001853 | |
| 4 | Valve - Throttle complete | P001768 | |
| (Includes item No. 5 & 6) | |||
| 5 | Valve - Throttle | ||
| 6 | O-ring (-011) | P083071 | |
| 7 | Pin - Throttle valve bush | P070719 | |
| 8 | Tube - Throttle valve | P071318 | |
| 9 | Bushing - Push pin | P070733 | |
| 10 | Bushing - Permanent | P009585 | |
| 11 | Handle | ||
| 12 | Pin - Throttle lever | A043627 | |
| 13 | Lever - Throttle | P009818 | |
| 14 | Lid (Ring valve) | P009837 | |
| 15 | Valve (Ring valve) | P009836 | |
| 16 | Piston (for 2" or 3" stroke version) | P118662 | |
| 17 | Piston (for 4" stroke version) | P118678 | |
| 18 | Cylinder | ||
| 19 | Sleeve - Chisel (Round) | P001550 | |
| 20 | Sleeve - Chisel (Hex) | P001551 | |
| 21 | Collar - Lock | P128247 | |
| 22 | Shield - Lock | P071355 | |
| 23 | Sleeve - Retainer (Includes item No. 24 & 25) | P107243 | |
| 24 | Sleeve - Retainer | ||
| 25 | Spring - Lock coil | P070994 |
