DESCRIPTION
CP 4130 Chipping Hammer Spare Parts
Vikay is a worldwide distributor of CP 4130 Chipping Hammer Spare Parts suitable for Chicago Pneumatic Chipping Hammer from India.

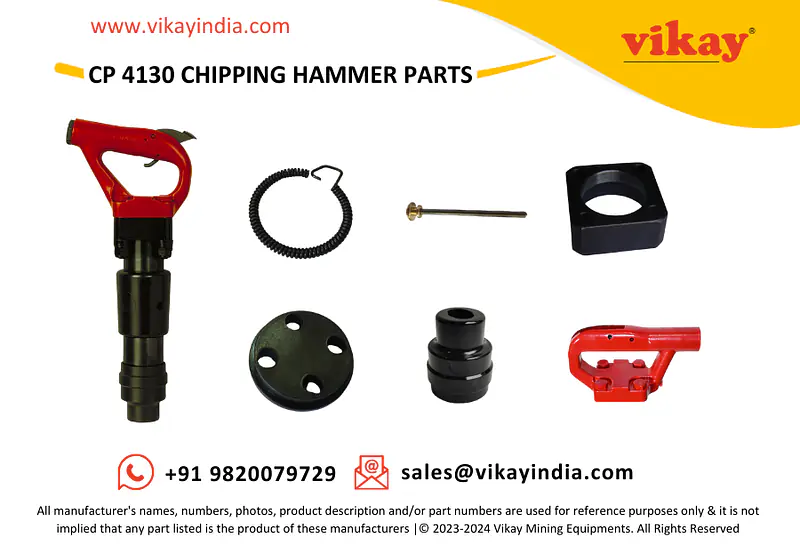

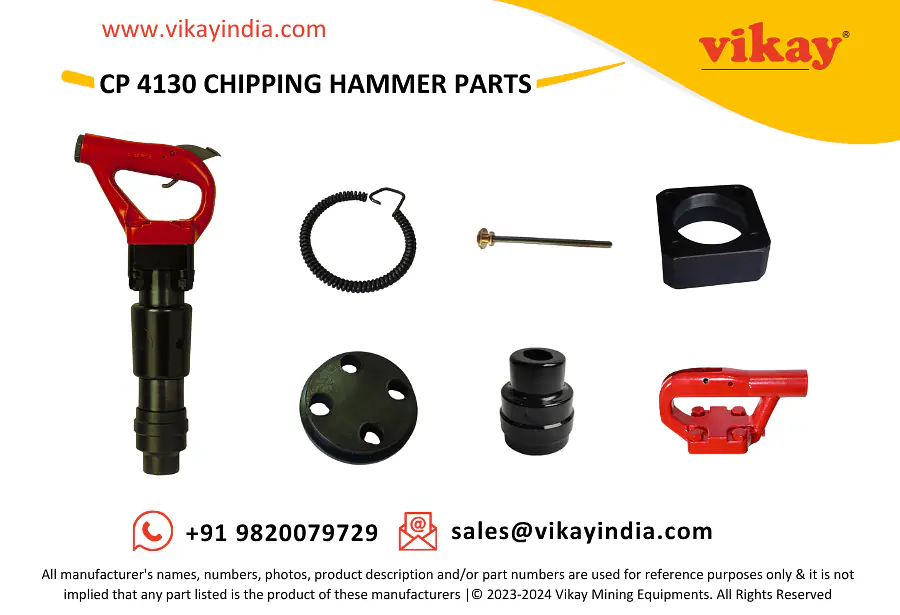

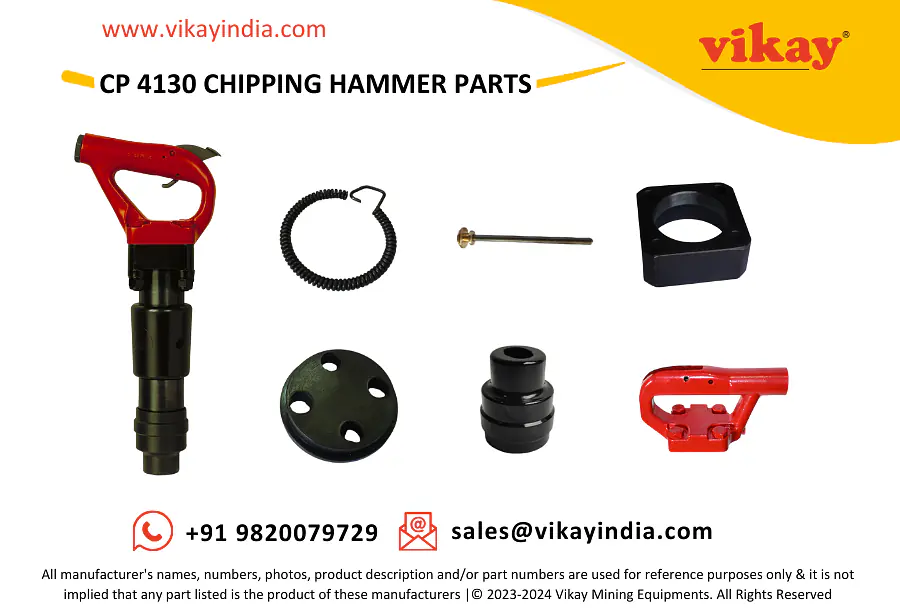

CP 4130 Chicago Pneumatic Chipping Hammer Parts
| Sr. No | Description | Part No. | Qty. |
| 1 | Handle (Includes item No. 2 & 3) | Z8342857 | 1 |
| 2 | Handle | 1 | |
| 3 | Throttle valve Bush | 1 | |
| 4 | Throttle valve (Includes item No. 5 & 6) | R157957 | 1 |
| 5 | O-ring (Throttle valve) | R138140 | 1 |
| 6 | Throttle valve | 1 | |
| 7 | Throttle valve spring | R157960 | 1 |
| 8 | O-ring (Air inlet bushing) | C046471 | 1 |
| 9 | Air inlet bushing | R085595 | 1 |
| 10 | Pin - Lever | A043627 | 1 |
| 11 | Lever | R157990 | 1 |
| 12 | Pin - Stop ( 1/8" ) | G071660 | 1 |
| 13 | Lock-off spring | R157956 | 1 |
| 14 | Pin - Lock-off trigger (5/32") | R158137 | 1 |
| 15 | Pin - Lock-off trigger (3/32") | R158138 | 1 |
| 16 | Lock-off trigger | R157955 | 1 |
| 17 | O-ring | C116352 | 1 |
| 18 | Lid - Upper valve case | P071350 | 1 |
| 19 | Valve | P071358 | 1 |
| 20 | Pin - Dowel | A041797 | 2 |
| 21 | Case - Valve | P071352 | 1 |
| 22 | Lid - Lower valve case | P071351 | 1 |
| 23 | Piston - 3" | P118662 | 1 |
| 24 | Piston - 4" | P118678 | 1 |
| 25 | Cylinder | 1 | |
| 26 | Bushing - Round | P001550 | 1 |
| 27 | Bushing - Hex | P001551 | 1 |
| 28 | Ring - Clamp | R157952 | 1 |
| 29 | Flange - Cylinder | R157951 | 1 |
| 30 | Muffler | P155535 | 1 |
| 31 | Sleeve - Retainer (Includes item No. 32 & 33) | P107243 | 1 |
| 32 | Spring - Lock coil | P070994 | 1 |
| 33 | Sleeve - Retainer | 1 | |
| 34 | Bolt | R157954 | 4 |
| 35 | Bumper | R155421 | 4 |
| 36 | Washer | R158143 | 4 |
| 37 | Nyloc nut | R157953 | 4 |
