DESCRIPTION
CP 4131 Chipping Hammer Spare Parts
Vikay is a worldwide distributor of CP 4131 Chipping Hammer Spare Parts suitable for Chicago Pneumatic Chipping Hammer from India.

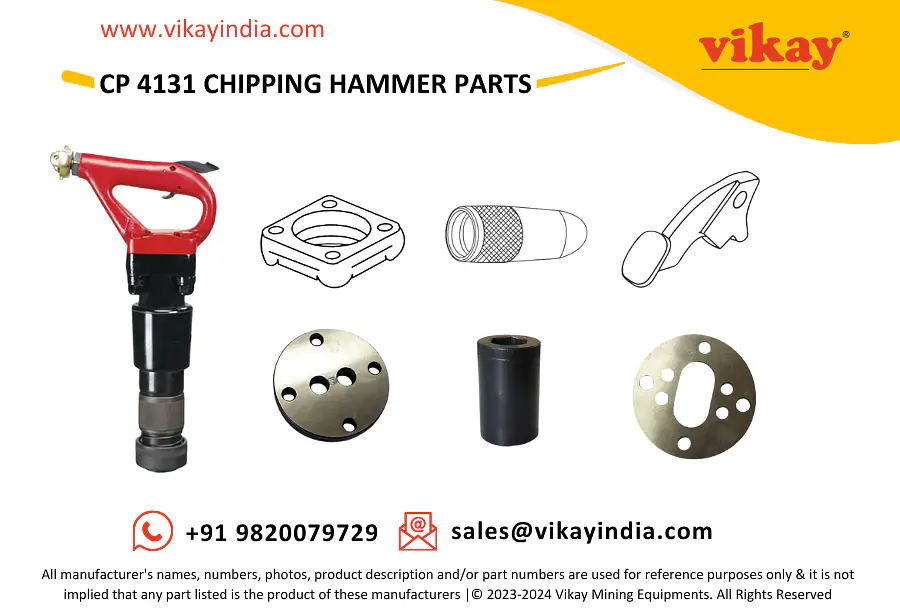

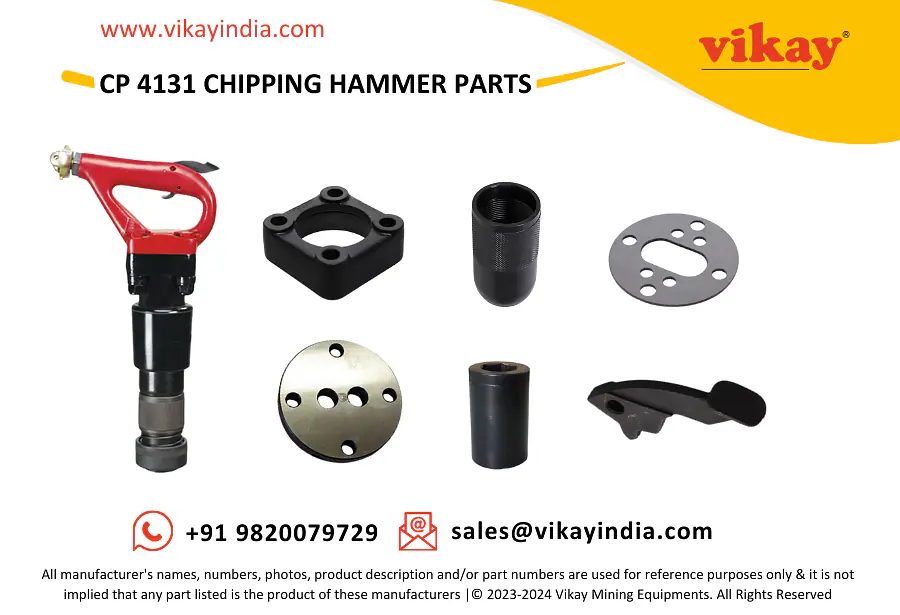

CP 4131 Chicago Pneumatic Chipping Hammer Parts
| Sr. No | Description | Part No. | Qty. |
| 1 | Handle (includes index number 9) | Z8342857 | 1 |
| 2 | Lock-off spring | R157956 | 1 |
| 3 | Pin-Lock-off trigger (5/32") | R158137 | 1 |
| 4 | Pin-Lock-off trigger (3/32") | R158138 | 1 |
| 5 | Lock-off trigger | R157955 | 1 |
| 6 | Lever | R157990 | 1 |
| 7 | Pin - Lever | A043627 | 1 |
| 8 | Pin - stop (1/8") | G071660 | 1 |
| 9 | Bush-Throttle valve | 1 | |
| 10 | O-ring (Throttle valve) | R138140 | 1 |
| 11 | Throttle valve (includes index number 10) | R157957 | 1 |
| 12 | Spring-Throttle valve | R157960 | 1 |
| 13 | O-ring (Air Inlet Bushing) | C046471 | 1 |
| 14 | Air Inlet Bushing | R085595 | 1 |
| 15 | O-ring | C116352 | 1 |
| 16 | Lid - Upper valve case | P071350 | 1 |
| 17 | Pin - Dowel | A041797 | 2 |
| 18 | Valve | P071358 | 1 |
| 19 | Case - Valve | P071352 | 1 |
| 20 | Lid - Lower valve case | P071351 | 1 |
| 21 | Piston - 3" | P118662 | 1 |
| Piston - 4" | P118678 | 1 | |
| 22 | Cylinder | 1 | |
| 23 | Bushing - Round | P001550 | 1 |
| Bushing - Hex | P001551 | 1 | |
| 24 | Ring - Clamp | R157952 | 1 |
| 25 | Flange - Cylinder | R157951 | 1 |
| 26 | Bolt | R157954 | 4 |
| 27 | Bumper | 4 | |
| 28 | Washer | R158143 | 4 |
| 29 | Nyloc Nut | R157953 | 4 |
| 30 | Muffler | P155535 | 1 |
| 31 | Retainer Lock Ring (Dia. 39.2 x 3mm) | H2228858 | 1 |
| 32 | Retainer Assembly (includes index numbers 33,34,35,36 & 37) | Z8389857 | 1 |
| 33 | Retainer | 1 | |
| 34 | Steel Ball (1 set consists of 6 numbers) | Z8754857 | 1 |
| 35 | Spring | H3437857 | 1 |
| 36 | Retainer Sleeve | 1 | |
| 37 | External Circlip | H3275857 | 1 |
| 38 | Buffer (Optional) | H2303858 | 1 |
| 39 | Retainer (Optional) | C8788859 | 1 |
