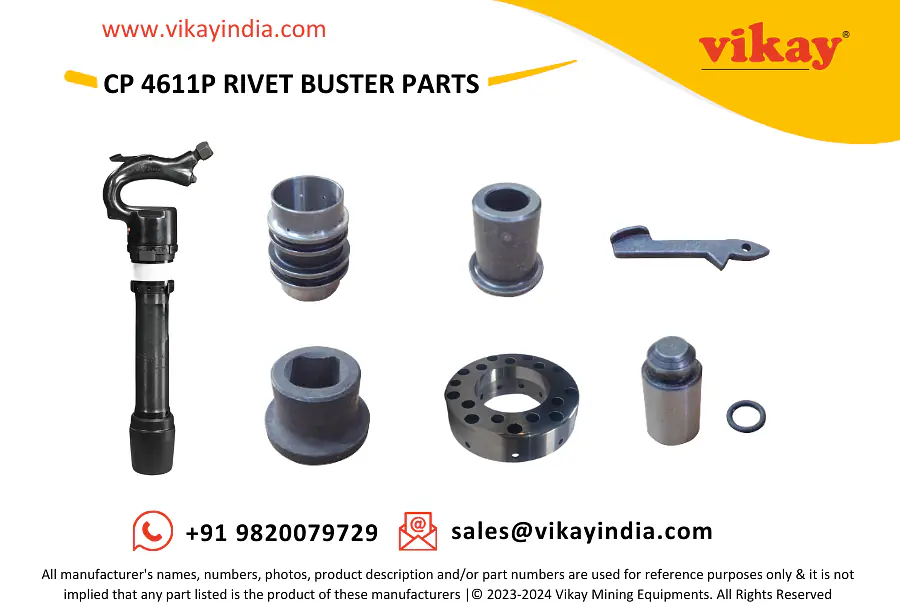

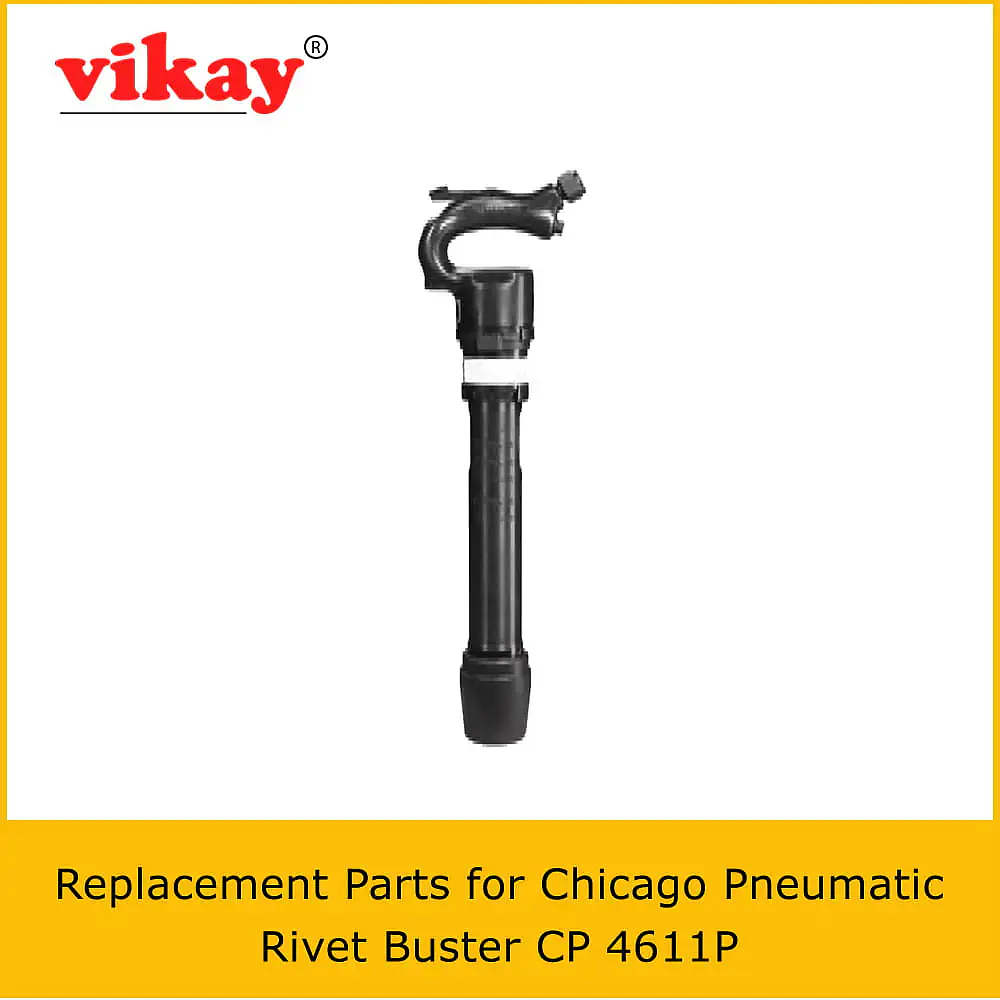

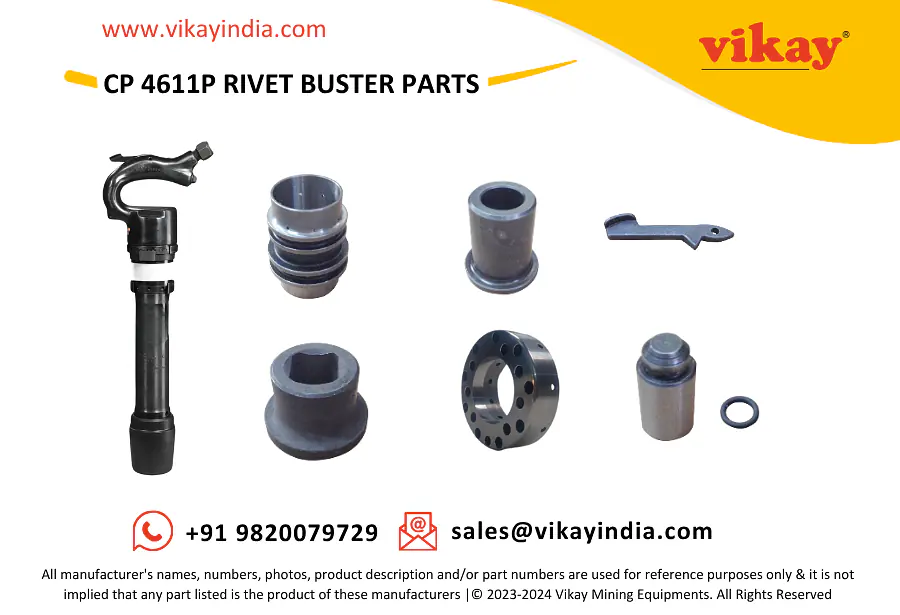

CP 4611P Chicago Pneumatic Rivet Buster Parts
Regular price
₹0.00
CP 4611P Chicago Pneumatic Rivet Buster Parts
Regular price
₹0.00
DESCRIPTION
CP-4611P Rivet Buster Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts - Chicago Pneumatic Rivet Buster CP-4611P from India.
CP 4611P Chicago Pneumatic Rivet Buster Parts
| Sr. No | Description | Part Number | Quantity |
| 1(2-14) | Handle, complete | P007164 | 1 |
| 2 | Plug - Valve tube | P001873 | 1 |
| 3 | Spring - Valve | P001853 | 1 |
| 4(5-6) | Valve - Throttle, complete | P001799 | 1 |
| 5 | Valve - Throttle | - | 1 |
| 6 | O-ring | P083071 | 1 |
| 7 | Pin - Push ( Valve ) | P004834 | 1 |
| 8(9-10) | Tube - Throttle, complete | P007325 | 1 |
| 9 | Bushing | P004839 | 1 |
| 10 | Tube - Throttle | - | 1 |
| 11 | Bushing - Air inlet ( 1⁄2" NPTF (With strainer) ) | P001995 | 1 |
| 12 | Pin - Lever | P001915 | 1 |
| 13 | Lever - Throttle | P001982 | 1 |
| 14 | Handle | - | 1 |
| 15(16-19) | Valve, complete | P007385 | 1 |
| 16 | Case - Valve | P006319 | 1 |
| 17 | Dowel | 3303005086 | 1 |
| 18 | Valve | P001538 | 1 |
| 19 | Lid - Valve case | P006320 | 1 |
| 20 | Cylinder | 3303005091 | 1 |
| 21 | Key - Lock collar | P001430 | 1 |
| 22 | Clip - Spring ( Lock collar ) | P001355 | 1 |
| 23 | Deflector - Exhaust | P001389 | 1 |
| 24 | Collar - Lock | P001399 | 1 |
| 25 | Piston ( 11" Stroke ) | 3303005093 | 1 |
| 26 | Sleeve - Upper | P156988 | 1 |
| 27 | Sleeve - Lower | P072333 | 1 |
| 28 | Bumper | 3303005103 | 1 |
| 29 | Sleeve - Retainer | P071849 | 1 |
| 30 | Spring - Lock | P073942 | 1 |
Working tools
Buster
| No. | Description | W (mm) | L (mm) | W (in.) | L (in.) | Part number |
| 1 | Moil point | - | 145 mm | - | 53⁄4" | 3083414000 |
| - | 195 mm | - | 73⁄4" | 3083414010 | ||
| - | 340 mm | - | 13" | 3083414020 | ||
| 2 | Narrow chisel | - | 145 mm | - | 53⁄4" | 3083414100 |
| - | 195 mm | - | 73⁄4" | 3083414110 | ||
| - | 340 mm | - | 13" | 3083414120 | ||
| 3 | Loose rivet buster | - | 145 mm | - | 53⁄4" | 3083414200 |
| - | 195 mm | - | 73⁄4" | 3083414210 | ||
| - | 340 mm | - | 13" | 3083414620 | ||
| 4 | Tight rivet buster | - | 145 mm | - | 53⁄4" | 3083414500 |
| - | 195 mm | - | 73⁄4" | 3083414510 | ||
| - | 340 mm | - | 13" | 3083414520 | ||
| 5 | Driftpin driver | Ø22 mm | 80 mm | Ø7⁄8" | 3" | 3083414300 |
| 6 | Chisel ripper | - | 120 mm | - | 43⁄4" | 3083414400 |
| 7 | Backout punch | 12.5 mm | 140 mm | 1⁄2" | 51⁄2" | 3083414700 |
| 16 mm | 140 mm | 5⁄8" | 51⁄2" | 3083414710 | ||
| 20 mm | 130 mm | 3⁄4" | 5" | 3083414720 | ||
| 20 mm | 190 mm | 3⁄4" | 71⁄2" | 3083414730 | ||
| 22 mm | 130 mm | 7⁄8" | 5" | 3083414740 | ||
| 25 mm | 190 mm | 1" | 71⁄2" | 3083414770 |
