DESCRIPTION

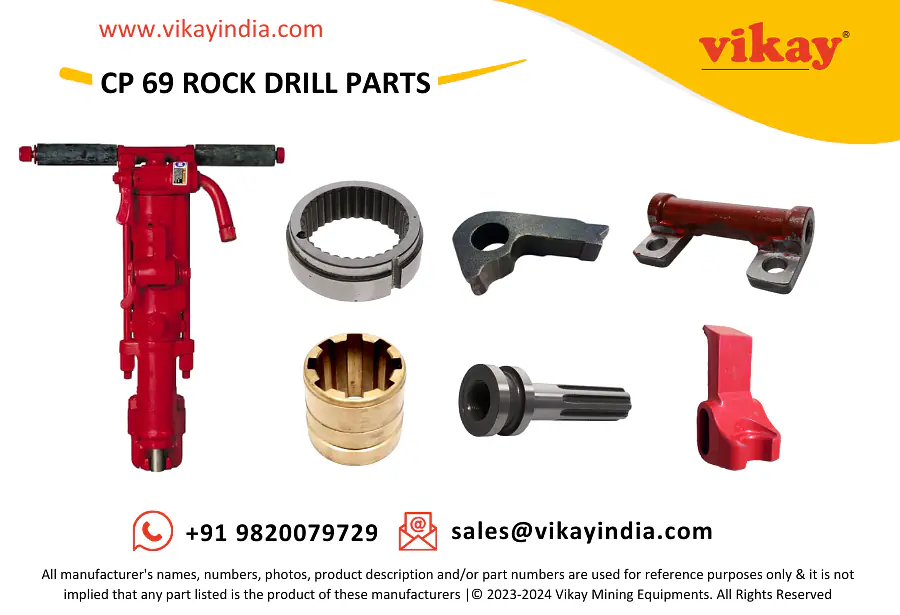

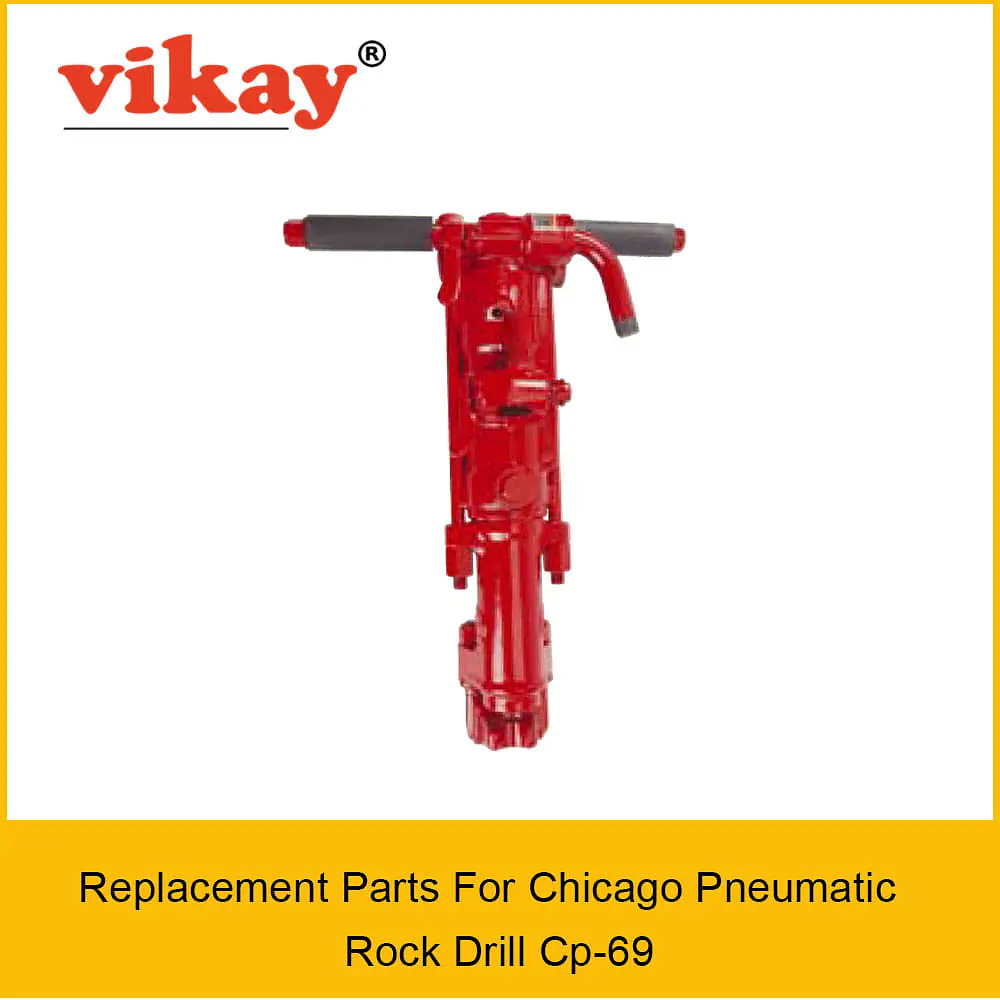

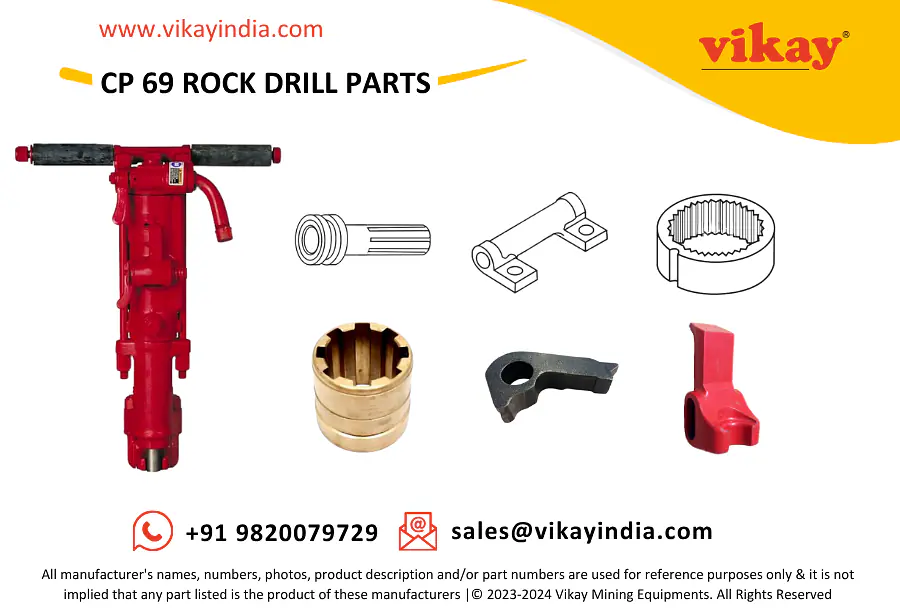

Cp-69 Rock Drill Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts - Chicago Pneumatic Rock Drill Cp-69 from India.
Product
Cp-69 Rock Drill Parts
| Sr. No | Description | Ref. Part No. | |
| 1 | Bolt - Thru | R085755 | |
| 2 | Nut - Elastic stop | R005742 | |
| 3 | Grip - Handle | R075419 | |
| 4 | Bracket - Handle | R086608 | |
| 5 | Liner - Handle | R076172 | |
| 6 | Washer - Handle bolt key | R000142 | |
| 7 | Bolt - Handle | R076173 | |
| 8 | Plug - Air tube | R076793 | |
| 9 | Gasket - Tube plug | R000537 | |
| 10 | Tube - Air | R093907 | |
| 11 | Washer - Air tube | R095169 | |
| 12 | Rubber - Air tube | R090364 | |
| 13 | Pin - Valve plunger | R075802 | |
| 14 | Plug - Water valve | R076372 | |
| 15 | Water valve port plug, complete (16-17) | R079130 | |
| 16 | - Water valve port plug | -- | |
| 17 | - O-ring | C079489 | |
| 18 | Backhead, complete (19-21) | R137744 | |
| 19 | - Bushing - Water valve | R098054 | |
| 20 | - Backhead | -- | |
| 21 | - Bushing - Blow tube | R137739 | |
| 22 | Plug - Pipe | C068064 | |
| 23 | Spring - Valve plunger | R085671 | |
| 24 | Plunger - Throttle valve | R086627 | |
| 25 | Plug - Pipe | C068799 | |
| 26 | Nut - Hexagon | P002149 | |
| 27 | Lock washer - Valve handle | C036717 | |
| 28 | Handle - Throttle valve | R079124 | |
| 29 | Gasket | H0980438 | |
| 30 | Valve - Throttle | R086628 | |
| 31 | O-ring | P103521 | |
| 32 | Swivel - Air inlet | R075265 | |
| 33 | Screen - Air inlet | R005584 | |
| 34 | O-ring | R110317 | |
| 35 | Nut - Air inlet swivel | R000530 | |
| 36 | Pawl | R075267 | |
| 37 | Spring - Pawl | R086654 | |
| 38 | Bar - Rifle | R093887 | |
| 39 | Ring - Ratchet | R137740 | |
| 40 | Cover - Valve case | R093490 | |
| 41 | Pin - Dowel | R137741 | |
| 42 | Spacer - Valve case | R085608 | |
| 43 | Valve | R093900 | |
| 44 | Pin - Oiler | R114133 | |
| 45 | Case - Valve | R085607 | |
| 46 | Nut - Rifle bar | R075839 | |
| 47 | Nut - Rifle bar | R075826 | |
| 48 | Piston | R000126 | |
| 49 | Cylinder, complete (50-51) | R137742 | |
| 50 | - Cylinder | -- | |
| 51 | - Bushing - Blower valve | R085624 | |
| 52 | Valve - Blower | R085623 | |
| 53 | Washer - Blower valve | R075777 | |
| 54 | Spring - Blower valve | R075778 | |
| 55 | Washer - Valve spring | R075780 | |
| 56 | Pin - Spring | R076266 | |
| 57 | Oil plug, complete (58-89) | R085611 | |
| 58 | - Gasket - Oil plug | R091176 | |
| 59 | - Oil plug | -- | |
| 60 | Bushing - Cylinder | R137743 | |
| 61 | Nut - Chuck rotation | R086733 | |
| 62 | Chuck | R093891 | |
| 63 | Sleeve - Chuck | R041324 | |
| 64 | Nut - Thru bolt | R085756 | |
| 65 | Fronthead | R041323 | |
| 66 | Tunnion - Retainer | R093896 | |
| 67 | Buffer - Retainer | R093897 | |
| 68 | Retainer - Latch shoe | R093898 | |
| 69 | Retainer | R093913 |
