DESCRIPTION
CP 9 Hand Drill Spare Parts
Vikay is a worldwide distributor of CP 9 Hand Drill Spare Parts - suitable for Chicago Pneumatic CP 9 Hand Drill from India.

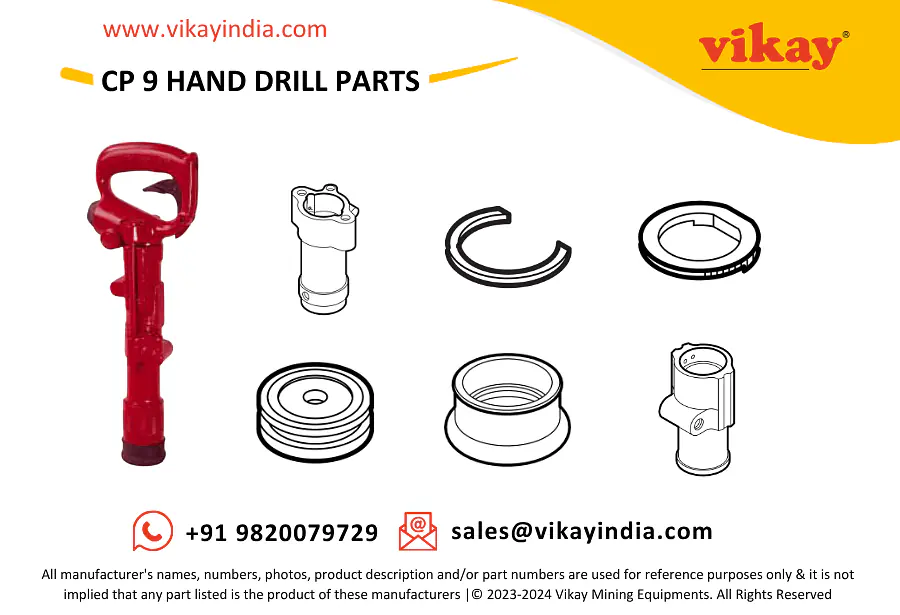

CP 9 Chicago Pneumatic Hand Drill Parts
| Sr. No | Description | Stock No. | Part No. | Qty |
| 1 | Piston | C7501411 | 119 | 1 |
| 2 | Front head | C8601411 | 85885 | 1 |
| 3 | Ball retainer plug | D0601411 | F61888 | 1 |
| 4 | Through bolt | D3003411 | F34249 | 2 |
| 5 | Valve | D4802411 | 85897 | 1 |
| 6 | Rear valve seat | D5303411 | 85896 | 1 |
| 7 | Front valve seat | D5304411 | 85898 | 1 |
| 8 | Retainer plate | D6541411 | F826683 | 1 |
| 9 | Hose nipple | D7053411 | F33505 | 1 |
| 10 | Cylinder bushing | D7358411 | 85887 | 1 |
| 11 | Chuck | D8301411 | F826892 | 1 |
| 12 | Chuck sleeve | D8352411 | 85900 | 1 |
| 13 | Cylinder | D8509411 | 85886 | 1 |
| 14 | Ratchet ring | E0301411 | 85892 | 1 |
| 15 | Pawl | E2401411 | F34066 | 2 |
| 16 | Steel retainer sleeve spring | H3432411 | 86605 | 1 |
| 17 | Pawl spring | H3561411 | 85890 | 2 |
| 18 | Snap ring | H3835411 | F826893 | 1 |
| Alinekey | M5803411 | 5FPS691 | 1 | |
| Single end wrench | M5857411 | 784 | 1 | |
| Handle complete | Z9320411 | F34496 | 1 | |
| 19 | *Oil plug | D3222411 | 4975 | 1 |
| 20 | *Air inlet bushing | D7706411 | 35893 | 1 |
| 21 | *Throttle lever | E2808411 | F27853 | 1 |
| 22 | Oil chember felt | H2501411 | 85895 | 1 |
| 23 | *Throttle valve spring | H3525411 | 85596 | 1 |
| 24 | *Throttle lever pin (Spiral 'T') | M4856411 | 75404 | 1 |
| *Handle with bushes assy | Z9307411 | F34495 | 1 | |
| 25 | **Handle | C5221411 | 877110 | 1 |
| 26 | **Throttle valve stem bushing | D7285411 | F815426 | 1 |
| 27 | **'O' ring | HOI11046 | 86098 | 1 |
| 28 | **Oil plug | Q3104400 | 76262 | 1 |
| **Plug | Q3105400 | 875766 | 1 | |
| *Throttle valve assembly | Z9899411 | 86329 | 1 | |
| 29 | **Throttle valve stem | D1182411 | F61912 | 1 |
| 30 | **Throttle valve head | D3123411 | F61911 | 1 |
| - | **Loctite (Grade 'A') | - | - | - |
| Steel retainer sleeve assy | Z9357411 | F827148 | 1 | |
| 31 | *Retainer sleeve | D9623411 | F815566 | 1 |
| 32 | *Dust excluder | H2111411 | F815343 | 1 |
| 33 | Cylinder exhaust plug | Q1621600 | 72422 | 1 |
| 34 | Steel retainer ball | M6109411 | F35621 | 4 |
| 35 | Steel ball | Q6102000 | S13112 | 17 |
| 36 | Through bolt nut | Q2116000 | S13073 | 2 |
