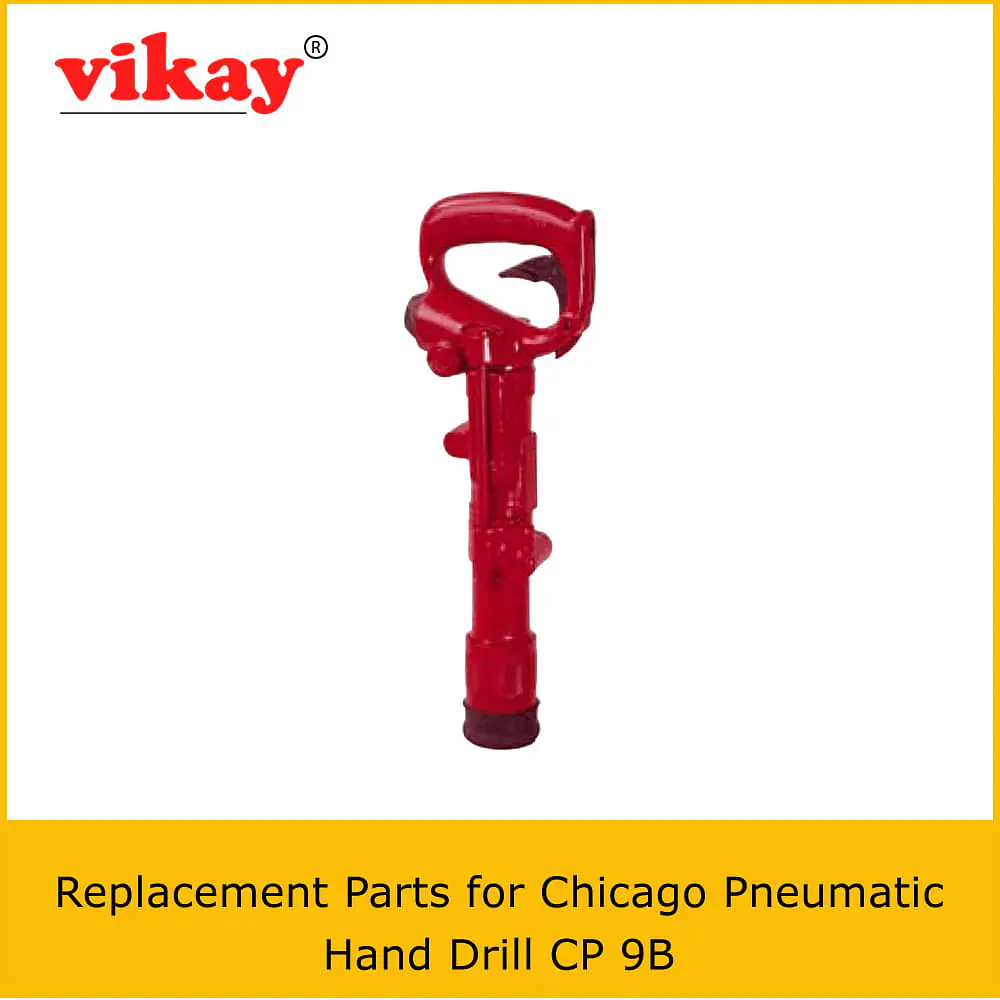

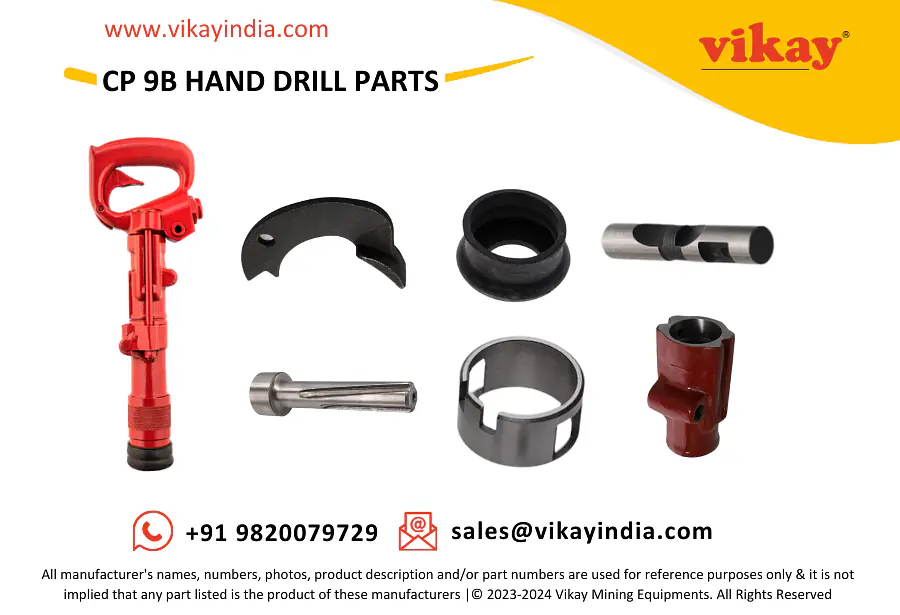

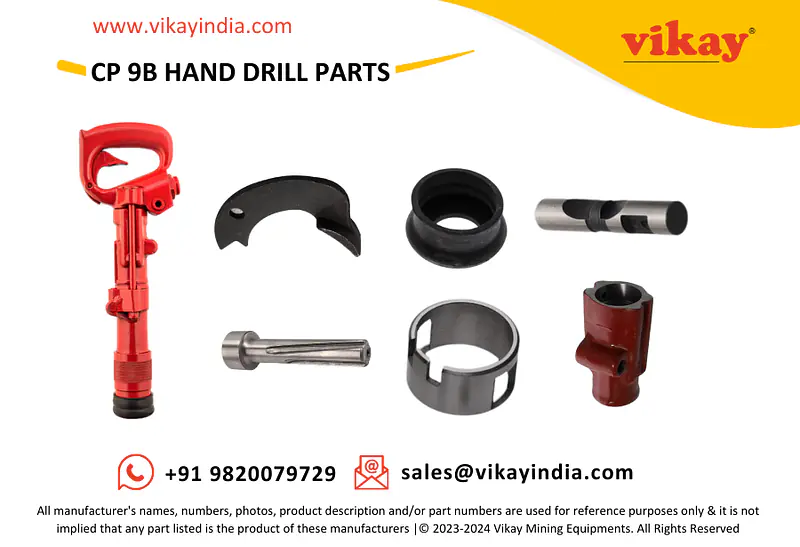

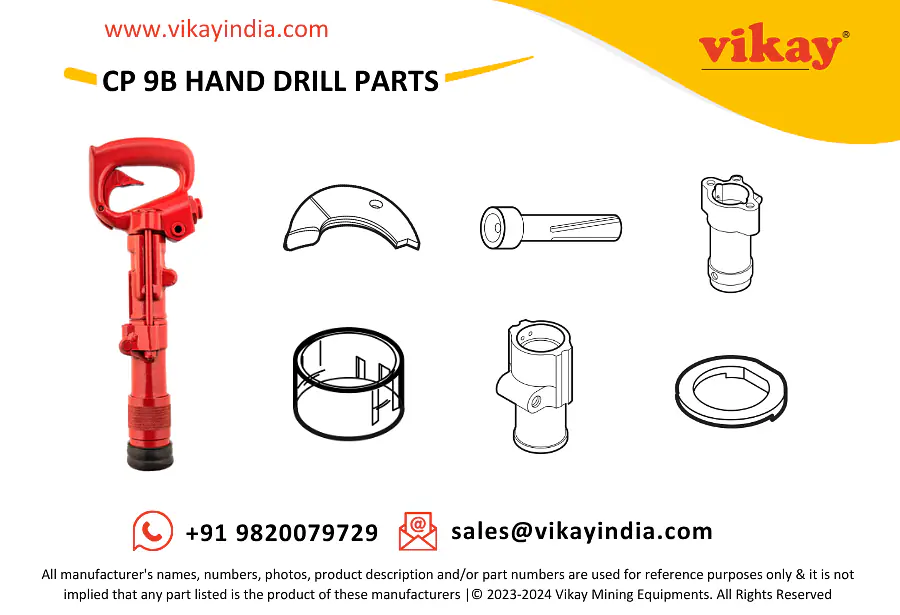

CP 9B Chicago Pneumatic Hand Drill Parts
Regular price
₹0.00
CP 9B Chicago Pneumatic Hand Drill Parts
Regular price
₹0.00
DESCRIPTION
CP-9B Hand Drill Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts for Chicago Pneumatic Hand Drill CP-9B from India.
Product
- Page 1
Hand Drill CP-9B Parts
| Sr. No | Description | Ref. Part No. | |
| 1 | Bushing - Air Inlet | F064697 | |
| 3 | Spring - Throttle Valve | R085596 | |
| 5 | Valve - Throttle | R086329 | |
| 7 | Seat - Throttle Valve | R086098 | |
| 10 | Bushing - Throttle Valve | F815426 | |
| 14 | Lever - Throttle | F027853 | |
| 15 | Pin - Throttle Lever | R075404 | |
| 22 | Seat - Rear Valve | R085896 | |
| 24 | Valve | R085897 | |
| 26 | Seat Front Valve | R085698 | |
| 30 | Felt - Oil Chamber | R085895 | |
| 33 | Plug - Pipe (3/8") | C077941 | |
| 35 | Handle (Incl Index No's 7 & 10) | F034495 | |
| 36 | Handle Complete | R278018 | |
| Â | (Incl Index No's 1, 3, 5, 14, 15, 30, 33 & 35) | ||
| 44 | Bolt - Thru | F034249 | |
| 47 | Nut - Thru Bolt | S013073 | |
| 49 | Pawl | R051355 | |
| 50 | Spring - Pawl | R085890 | |
| 51 | Ring Ratchet | F816123 | |
| 60 | Cylinder | R085886 | |
| 61 | Piston | F816122 | |
| 65 | Bushing - Cylinder | R051356 | |
| 66 | Excluder - Dust | F815343 | |
| 69 | Sleeve - Retainer | F815566 | |
| 70 | Ring - Retainer | F826893 | |
| A | Plug | 875766 | |
| B | Plug | R051357 | |
| 71 | Plate - Retainer | F826683 | |
| 72 | Spring Sleeve Reatiner | R086605 | |
| 73 | Ball - Steel (5/16" Dia) | F035621 | |
| 76 | Chuck | F826892 | |
| C | Oil Regulating Plug | R076262 | |
| 77 | Bail - Chuck Retainer | S013112 | |
| 78 | Sleeve - Chuck | R085900 | |
| 79 | Fronthead | F816120 | |
| 81 | Plug - Ball Retainer | F061888 | |
| 82 | Plunger - Shifter | R051351 | |
| 83 | Plunger - Shifter Detent | R051352 | |
| 84 | Spring - Plunger | R051353 | |
| 85 | Sleeve - Shifter | F816124 | |
| 86 | Plug - Pipe (1/16" NPTF) | C102507 | |
| 139 | Muffler Compl. | F815350 | |
| (Incl. Index 140, 145, 146 & 147) | |||
| 140 | Muffler Assly. | F815448 | |
| (Incl. Index 142, 144, 148 & 149) | |||
| 142 | Rotation Release Button Assly. | F815447 | |
| (Incl. Index No. 143) | |||
| 143 | O-Ring | C045689 | |
| 144 | Muffler Plug Assembly | F815446 | |
| 145 | Dead Handle | R132714 | |
| 146 | Clamping Washer | R132715 | |
| 147 | Depth Gauge | R132716 | |
| 148 | Screw - Cap (1/4" - 28 x 2) | R132717 | |
| 149 | Washer | R132718 | |
| 150 | Gasket - Hose Tail | F064696 | |
| 151 | Hose Tail | F064695 |
