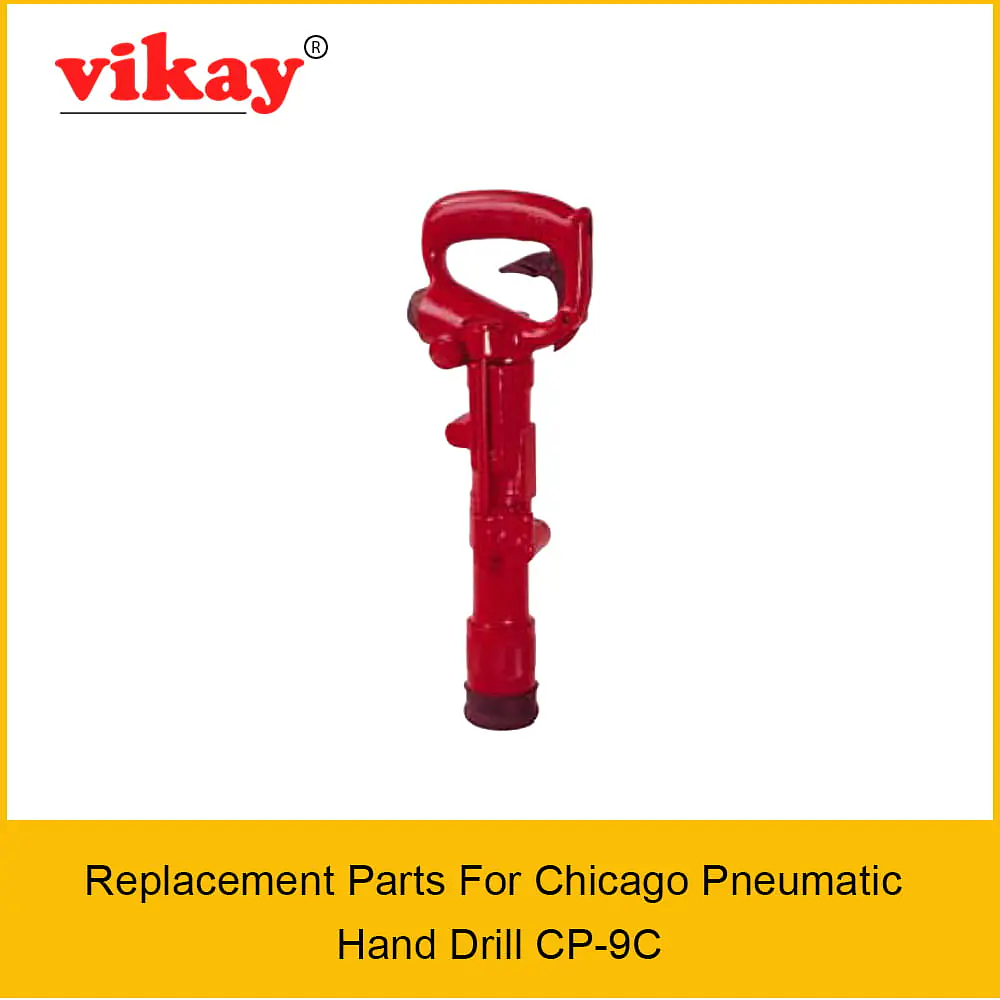

Cp-9C Hand Drill Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts for Chicago Pneumatic Hand Drill Cp-9C from India.
Product
- Page 1

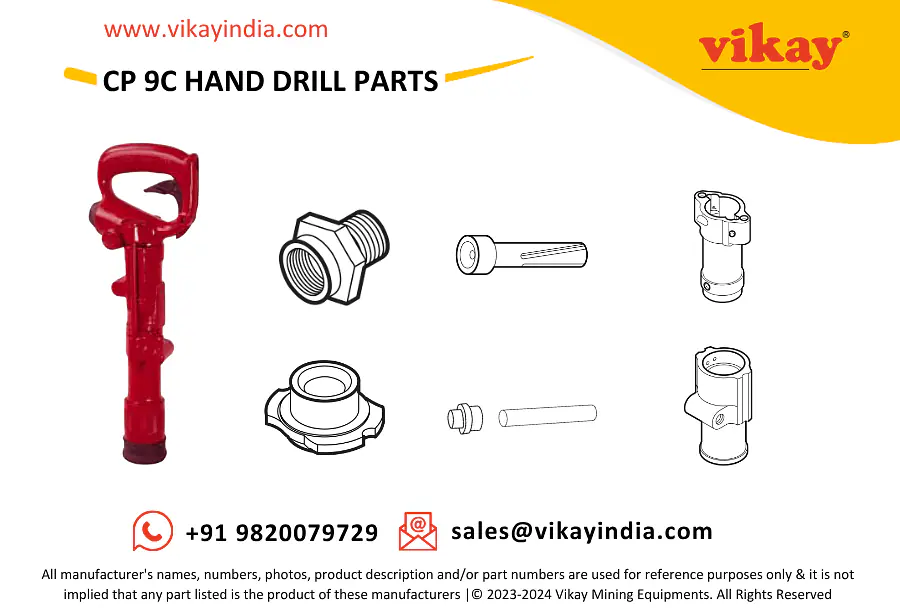

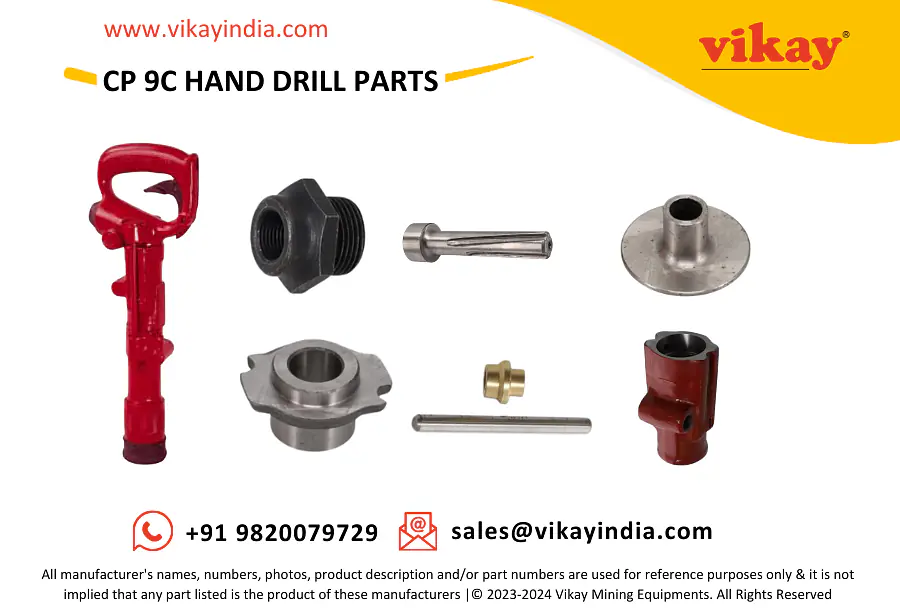

Hand Drill Cp-9C Parts
| Sr. No | Description | Ref. Part No. | |
| 1 | Handle complete | F034496 | |
| (Includes item No.4, 5, 6, 7, 10, 11, 12 & 13) | |||
| 2 | Hose tail ( CP 9C,CS & ES ) | F064695 | |
| 3 | Gasket (CP 9C, CS & ES) | F064696 | |
| 4 | Air inlet bushing - 3/8" BSP collared head | F064697 | |
| (CP 9C, CS & ES) | |||
| 5 | Air inlet bushing - 3/8" NPTF conical head | R085893 | |
| (CP 0009AC) | |||
| 6 | Throttle valve spring | R085596 | |
| 7 | Throttle valve | R086329 | |
| 8 | O-ring (Special) | R086098 | |
| 9 | Throttle valve bushing | R085599 | |
| 10 | Oil plug | C077941 | |
| 11 | Oil chamber felt | R085895 | |
| 12 | Throttle lever pin | A043627 | |
| 13 | Throttle lever | F027853 | |
| 14 | Handle (Includes item No. 8 & 9) | -- | |
| 15 | Through bolt | F034249 | |
| 16 | Rear valve seat | R085896 | |
| 17 | Valve | R085897 | |
| 18 | Front valve seat | R085898 | |
| 19 | Cylinder | R085886 | |
| 20 | Piston | F816122 | |
| 21 | Cylinder bushing | R085887 | |
| 22 | Ratchet ring | F816123 | |
| 23 | Pawl | F034066 | |
| 24 | Pawl spring | R085890 | |
| 25 | Fronthead | R136592 | |
| 26 | Ball retainer plug | F061888 | |
| 27 | Through bolt nut | S013073 | |
| 28 | Chuck sleeve | R085900 | |
| 29 | Round chuck complete | Z8366412 | |
| (Includes item No.30, 31, 32 & 33) | |||
| 30 | Chuck - Round (CP0009C, CS & AC) | F826892 | |
| 31 | Chuck retainer ball | -- | |
| (Only available as set Z8767412 incl. 17 balls) | |||
| 32 | Steel retainer ball | -- | |
| (only available as set Z8768412 incl.8 balls) | |||
| 33 | Retainer sleeve spring | R086605 | |
| 34 | Hex chuck complete | Z8368412 | |
| (Includes item Nos. 31,32,35 & 36) | |||
| 35 | Chuck (CP 0009 ES) | F816159 | |
| 36 | Retainer sleeve spring | F816162 | |
| 37 | Retainer sleeve | Z8375412 | |
| (Includes item No.38, 39, 40 & 41) | |||
| 38 | Retainer | -- | |
| 39 | Retainer plate | F826683 | |
| 40 | Retainer ring | F826893 | |
| 41 | Dust excluder | F815343 | |
| 42 | Muffler complete | F826972 | |
| (Includes item Nos.43, 45, 46 & 47) | |||
| (Supplied with CP0009CS & ES) | |||
| 43 | Muffler | -- | |
| 44 | Muffler Screw Set | Z3631412 | |
| (Includes item No.45, 46 & 47) | |||
| 45 | Capscrew | -- | |
| 46 | Washer | -- | |
| 47 | Nut | -- |
