Cradle Compl. BBC-120F Wagon Drill Parts
Regular price
₹0.00
Cradle Compl. BBC-120F Wagon Drill Parts
Regular price
₹0.00
DESCRIPTION
Cradle Complete Modified For BBC-120F Replacement
Vikay is a global supplier of new aftermarket replacement parts - Cradle Complete Modified For BBC-120F for Atlas Copco Wagon Drill Bvb-25 from India.
Product
- Page 1

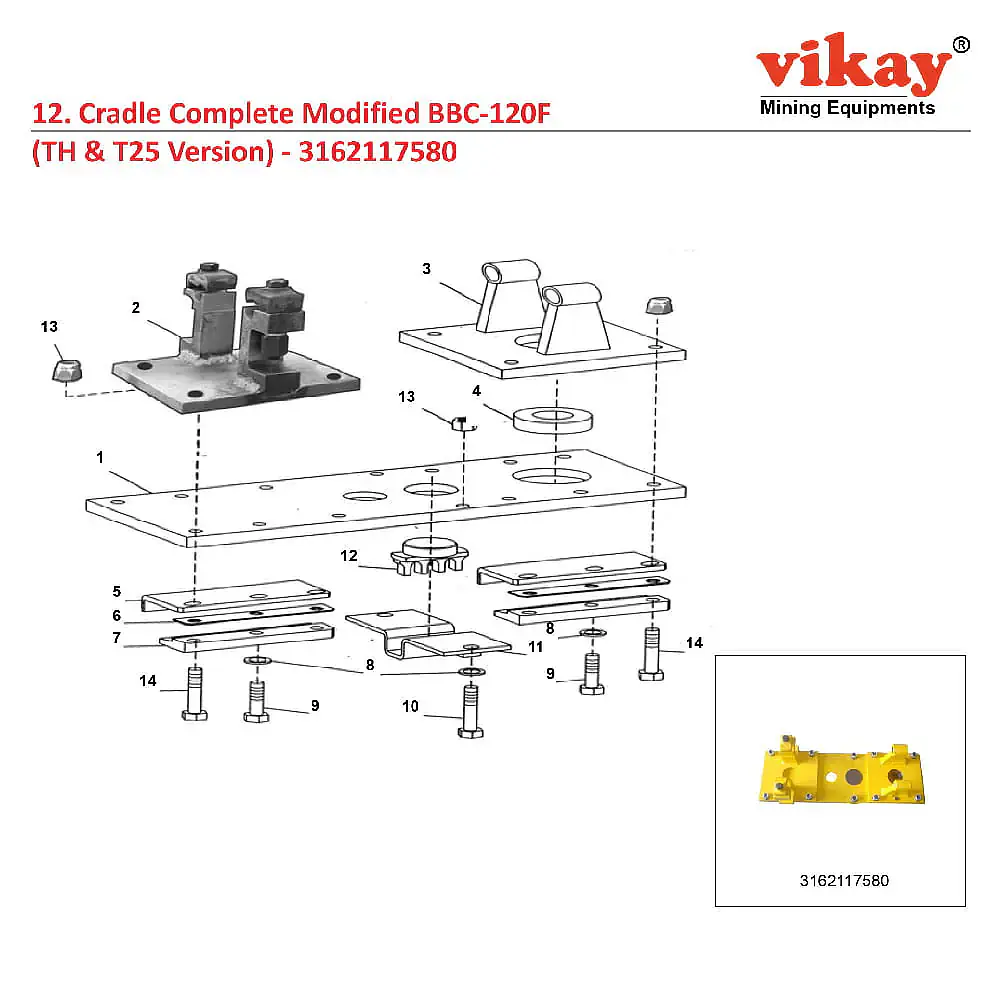

Cradle Complete Modified For BBC-120F
| No. | Description | Modified | Ref. Part No. | ||
| - | Cradle Complete Modified BBC-120F (TH & T25 Version) (9718485683) | 3162117580 | |||
| 1 | - Cradle | 3162117500 | |||
| 2 | - Cradle Retainer Front (Modified) | 3162117300 | |||
| 3 | - Cradle Retainer Rear | 3162117400 | |||
| 4 | - Washer | 3162117900 | |||
| 5 | - Sliding Piece | 3162109100 | |||
| 6 | - Shim | 3162110300 | |||
| 7 | - Guide Rail (Thickness 18mm) (9718485660) | 3162109000 | |||
| 8 | - Spring Washer | M9025 | |||
| 9 | - Screw | 0147148100 | |||
| 10 | - Screw | 0147147900 | |||
| 11 | - Chain Guide (Maximum Height 38mm) | 3162108800 | |||
| 12 | - Driver | 9718351400 | |||
| 13 | - Nut | ||||
| 14 | - Screw |
