DESCRIPTION
Crank Assembly for Atlas Copco Air Compressor
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Crank Assembly for Atlas Copco Air Compressor from India

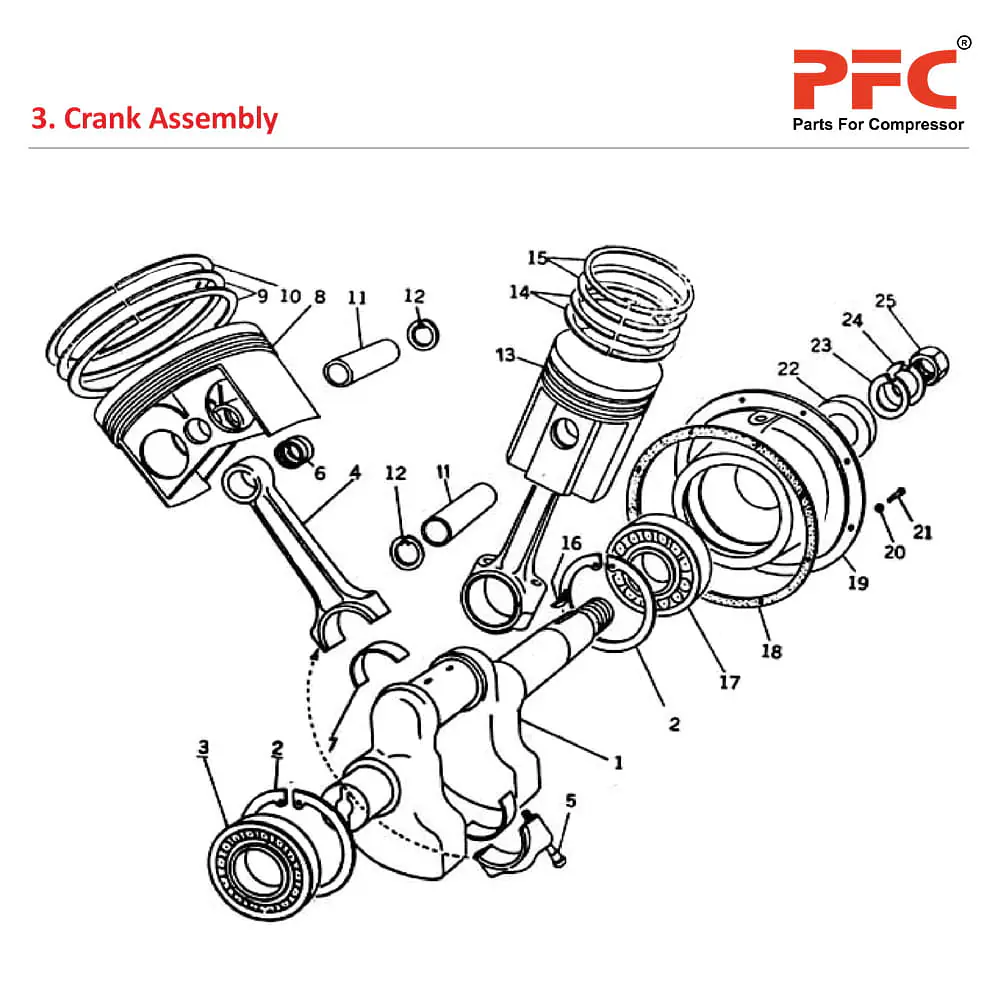

Crank Assembly
| SR. NO. | DESCRIPTION | REF PART NO. | QTY |
| 1 | Crankshaft Vt/Bt - 4 | 1614037405 | 1 |
| 2 | Circlip | 335217800 | 2 |
| 3 | Roller bearing | 508263000 | 1 |
| – | Connecting rod, Vt & Bt - 4/6 (C.D - 237mm) | 1404085082 | 2 |
| 4 | – Rod (Not suppl.sep.) | --- | 1 |
| 5 | – Bolt | 1614032300 | 2 |
| 6 | Bearing needle | 516320600 | 1 |
| 7 | Bearing shell standard | 1404231300 | 4 |
| 7.1 | Bearing 0.01" undersize | 1404231310 | 4 |
| 7.2 | Bearing 0.02" undersize | 1404231320 | 4 |
| 7.3 | Bearing 0.03" undersize | 1404231330 | 4 |
| 7.4 | Bearing 0.04" undersize | 1404231340 | 4 |
| – | Piston Set LP & HP (8&13) | VT PISTON | 1 |
| 8 | Piston, LP | 1404195400 | 1 |
| – | Piston Ring Set STD (Set of 7 pcs.) | VT STD | 1 |
| 9 | – Scraper ring 220 mm | 1404232900 | 1 |
| 10 | – Compression ring 220 mm | 1404232800 | 2 |
| 14 | – Scraper ring 130 mm | 1616037500 | 2 |
| 15 | – Compression ring 130 mm | 1616037600 | 2 |
| 11 | Gudgeon pin | 1404084000 | 2 |
| 12 | Circlip | 335213200 | 4 |
| 13 | Piston, HP | 1404195500 | 1 |
| 16 | Key | 1619011000 | 1 |
| 17 | Roller bearing | 506422400 | 1 |
| 18 | Gasket | 1616037000 | 1 |
| 19 | Bearing housing | 1616030500 | 1 |
| 20 | Spring washer | 333213000 | 8 |
| 21 | Screw | 144328600 | 8 |
| 22 | Seal ring | 666853500 | 1 |
| 23 | Washer | 1614037700 | 1 |
| 24 | Lock washer | 1614037800 | 1 |
| 25 | Nut | 1614037500 | 1 |
