DESCRIPTION
Cylinder and Piston Assembly For Ingersoll Rand Type 30 - Model 231
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Cylinder and Piston Assembly for Ingersoll Rand Type 30 - Model 231

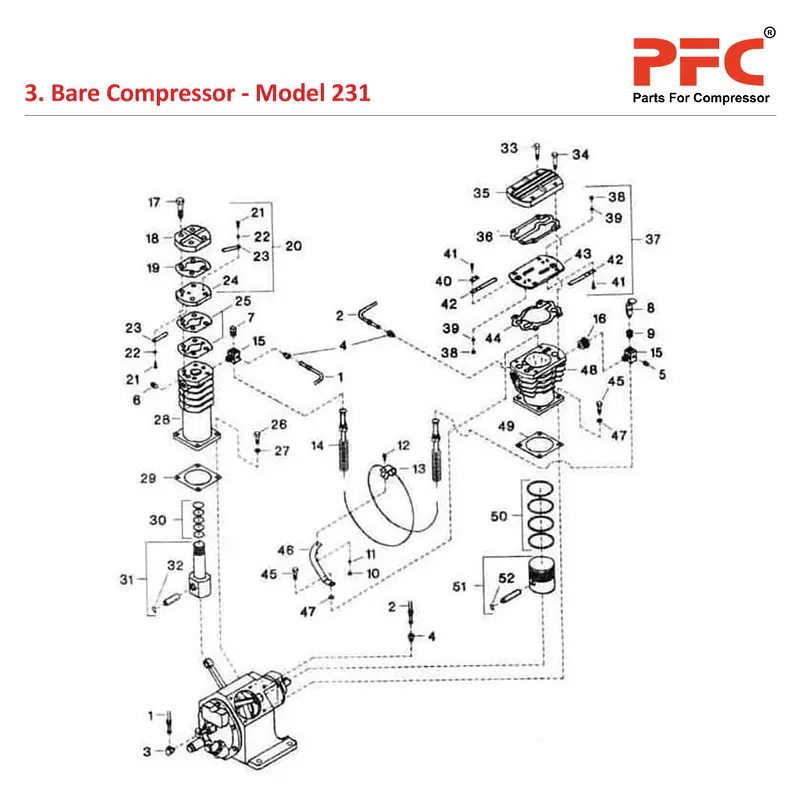

Cylinder and Piston Assembly
| Sr No | Ref. Part Number | Description | Qty |
| 3-1 | 37131349 | Tube Assembly | 1 |
| 3-2 | 37131216 | Tube Assembly, Breather | 1 |
| 3-3 | 95031860 | Tube Elbow | 1 |
| 3-4 | 95082483 | Connector, Male | 3 |
| 3-5 | 95033585 | Plug, Pipe Square Head | 1 |
| 3-6 | 95252409 | Plug, Pipe Square Head | 1 |
| 3-7 | 95033601 | Plug, Pipe Square Head | 1 |
| 3-8 | 30812119 | Valve Safety - 125 PSIG | 1 |
| 3-9 | 95038147 | Bushing, Reducing | 1 |
| 3-10 | 95077681 | Nut-Hex Head | 1 |
| 3-11 | 95043196 | Lockwasher, Spring | 1 |
| 3-12 | 95053070 | Capscrew-Hex Head | 1 |
| 3-13 | 32065641 | Clamp, Tube | 1 |
| 3-14 | 32042632 | Tube Assembly, Finned - Intercooler | 1 |
| 3-15 | 30282727 | Tee, Manifold - Inlet/Discharge | 2 |
| 3-16 | 95037446 | Bushing, Reducing | 1 |
| 3-17 | 95104196 | Capscrew-Hex Head | 4 |
| 3-18 | 37127305 | Airhead-High Pressure | 1 |
| 3-19 | 30280341 | Gasket, Airhead | 1 |
| 3-20 | 32058760 | Assembly-Spacer/Valve-High Pressure | 1 |
| 3-21 | 32035495 | – Screw, Fillister Head | 2 |
| 3-22 | 30326573 | – Washer, Flat | 2 |
| 3-23 | 30220115 | – Valve, Finger | 2 |
| 3-24 | 32015661 | – Spacer | 1 |
| 3-25 | 30278964 | Gasket, Spacer | 2 |
| 3-26 | 95079612 | Capscrew, Hex Head | 4 |
| 3-27 | 95674677 | Gasket, Copper | 4 |
| 3-28 | 37218550 | Cylinder, Air-1.25" High Pressure | 1 |
| 3-29 | 30294227 | Gasket, Flange | 1 |
| 3-30 | 37138229 | Set, Ring | 1 |
| 3-31 | 30215412 | Piston, Air - Complete | 1 |
| 3-32 | 35151067 | – Ring, Lock | 2 |
| 3-33 | 95103792 | Capscrew-Hex Head | 3 |
| 3-34 | 95103800 | Capscrew-Hex Head | 1 |
| 3-35 | 37127354 | Airhead-Low Pressure | 1 |
| 3-36 | 30280507 | Gasket, Airhead | 1 |
| 3-37 | 32141194 | Assembly-Spacer/Valve-Low Pressure | 1 |
| 3-38 | 95416335 | – Nut-Hex | 4 |
| 3-39 | 32035479 | – Lockwasher, Spring | 4 |
| 3-40 | 32035461 | – Crew-Fillster Head | 4 |
| 3-41 | 32139891 | – Shim, Finger Valve | 1 |
| 3-42 | 30221170 | – Valve, Finger" | 2 |
| 3-43 | 37127248 | – Spacer | 1 |
| 3-44 | 30280499 | Gasket, Spacer | 1 |
| 3-45 | 95053146 | Capscrew-Hex Head | 4 |
| 3-46 | 30298202 | Brace, Intercooler | 1 |
| 3-47 | 95674677 | Gasket, Copper | 4 |
| 3-48 | 37130630 | Cylinder, Air | 1 |
| 3-49 | 30294227 | Gasket, Flange | 1 |
| 3-50 | 32194276 | Set, Ring | 1 |
| 3-51 | 30292429 | Piston, Air - Complete | 1 |
| 3-52 | 35151067 | – Ring, Lock | 2 |
