DESCRIPTION
Cylinder and Piston Assembly For Ingersoll Rand Type 30 - Model 234
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Cylinder and Piston Assembly For Ingersoll Rand Type 30 - Model 234 from India

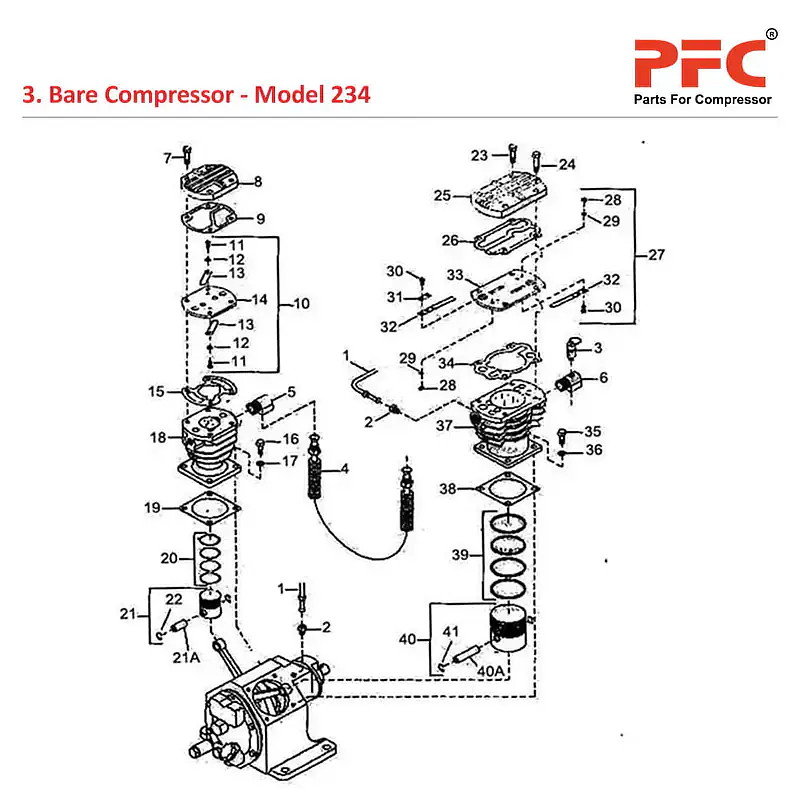

Cylinder and Piston Assembly
| Sr.No | Ref. Part Number | Description | Qty |
| 3-1 | 37003746 | Tube Assembly Breather | 1 |
| 3-2 | 95082483 | Connector, Male | 2 |
| 3-3 | 72062151 | Valve safety | 1 |
| 3-4 | 30335574 | Tube Assy, finned-inter cooler | 1 |
| 3-5 | 95031761 | Elbow, tube | 1 |
| 3-6 | 30212682 | Elbow, tube-intercooler | 1 |
| 3-7 | 95103792 | Capscrew Hex | 4 |
| 3-8 | 32144578 | Airhead -Highpressure | 1 |
| 3-9 | 32144552 | Gasket, Airhead | 1 |
| 3-10 | 32145872 | Assembly, Spacer/valve - H.P | 1 |
| 3-11 | 32035495 | – Screw, Fillister Head | 2 |
| 3-12 | 32217382 | – Washer Belleville | 2 |
| 3-13 | 30220115 | – Valve, Finger | 2 |
| 3-14 | 32144560 | – Spacer | 1 |
| 3-15 | 32144545 | Gasket, Spacer | 2 |
| 3-16 | 95053146 | Capscrew Hex | 4 |
| 3-17 | 95674677 | Gasket, Copper | 4 |
| 3-18 | 32144586 | Cylinder,Air High pressure | 1 |
| 3-19 | 30294227 | Gasket, Flange | 1 |
| 3-20 | 37138237 | Set, ring1.75 | 1 |
| 3-21 | 30215180 | Piston, Air complete - 1.75 | 1 |
| 3-21A | 30297089 | – Pin Piston | 1 |
| 3-22 | 35151067 | – Ring Lock | 2 |
| 3-23 | 95103792 | Capscrew | 3 |
| 3-24 | 95103800 | Capscrew | 1 |
| 3-25 | 37127354 | Airhead - Low Pressure | 1 |
| 3-26 | 32154163 | Gasket,Airhead | 1 |
| 3-27 | 32141194 | Assembly, Spacer/valve -low pressure | 1 |
| 3-28 | 95416335 | – Nut - Hex | 4 |
| 3-29 | 32035479 | – Lockwasher, Spring | 4 |
| 3-30 | 32035461 | – Screw, Filliste Head | 4 |
| 3-31 | 32139891 | – Shim, Finger valve | 1 |
| 3-32 | 30221170 | – Valve, Finger | 2 |
| 3-33 | 37127248 | – Spacer | 1 |
| 3-34 | 30280499 | Gasket , Spacer | 1 |
| 3-35 | 95053146 | Capscrew Hex | 4 |
| 3-36 | 95674677 | Gasket, Cooper | 4 |
| 3-37 | 37160630 | Cylinder, Air-3" | 1 |
| 3-38 | 30294227 | Gasket, Flange | 1 |
| 3-39 | 32194276 | Set, Ring | 1 |
| 3-40 | 30292429 | Piston, Air complete | 1 |
| 3-40A | 30297113 | – Pin Piston | 1 |
| 3-41 | 35151067 | – Ring Lock | 2 |
| REF | 37093275 | Tune up kit | 1 |
| REF | 30420327 | Set Gasket | 1 |
| REF | 32011082 | Set Piston Rings | 1 |
