DESCRIPTION

Cylinder and Piston Assembly For Ingersoll Rand Type 30 - Model 242

PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Cylinder and Piston Assembly For Ingersoll Rand Type 30 - Model 242 from India

View PDF

Product

  • Page 1

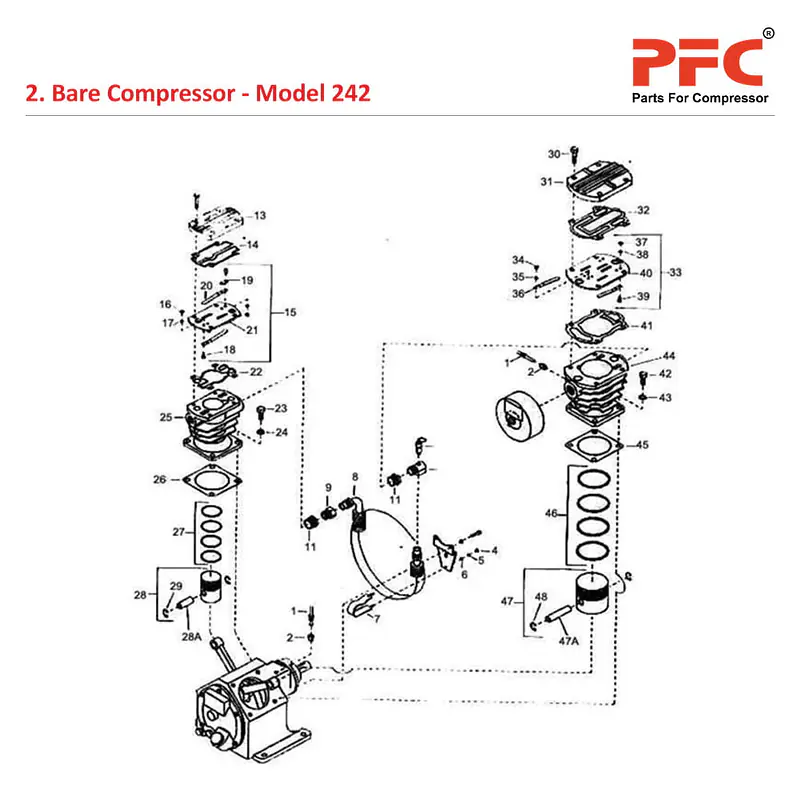

1. Cylinder and Piston Assembly

Sr.NoRef. Part NumberDescription
2-137008042Tube Assembly, Breather
2-295082483Connector, Tube
2-372062151Valve, Safety-60 PSIG
2-495416335Nut-Hex
2-532035479Lockwasher, Spring - 1/4"
2-695094298Washer, Flat -1/4"
2-732157356Clamp Tube
2-832125262Tube Assembly, Finned-Intercooler
2-995083275Connector, Tube
2-1030212682Elbow, Tube
2-1195038048Bushing Reducing
2-1295103800Capscrew Hex Head
2-1337127354Airhead - Highpressure
2-1432154163Gasket, Airhead-Highpressure
2-1532141194Assembly, Spacer/Valve- High Pressure
2-1695416335* Nut-Hex
2-1732035479* Lockwasher, Spring-1/4"
2-1832035461* Screw, Fillister Head
2-1932139891* Shim, Finger Valve
2-2030221170* Valve, Finger
2-2137127248* Spacer
2-2232154247Gasket, Space
2-2395053567Capscrew - Hex Head
2-2495674701Gasket, Copper - 1/2"
2-2537128634Cylinder, Air- 2.5" -High Pressure
2-2630289870Gasket, Flange
2-2732198368Set, Ring - 2.5"
2-2830288515Piston, Air-Complete - 2.5-High Pressure
2-28 I30287783Pin Piston
2-2930298020* Ring Lock
2-3095104188Capscrew- Hex Head
2-3137127362Airhead - Lowpressure
2-3230279038Gasket, Airhead-Low Pressure
2-3332024283Assembly, Spacer/Valve - Low Pressure
2-3432035495* Screw, Fillister Head
2-3532217382* Washer Belleville - 1/4"
2-3630221170Valve Finger
2-3795416335* Nut.Hex
2-3832035479* Lockwasher Spring
2-3932035461* Screw, Fillister Head
2-4037127289* Spacer
2-4130280515Gasket, Spacer
2-4295053567Capscrew-Hex Head
2-4395674701Gasket, Copper - 1/2"
2-4437128535Cylinder, Air-4" - Low Pressure
2-4530289870Gasket - Flange
2-4632194151Set, Ring -4"
2-4730215263Piston, Air-Complete - 4" - Low Pressure
2-47 I30288393Pin Piston
2-4830298020* Ring, Lock
