DESCRIPTION
Cylinder and Piston Assembly For Ingersoll Rand Type 30 Model 253
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Cylinder and Piston Assembly For Ingersoll Rand Type 30 - Model 253 from India.

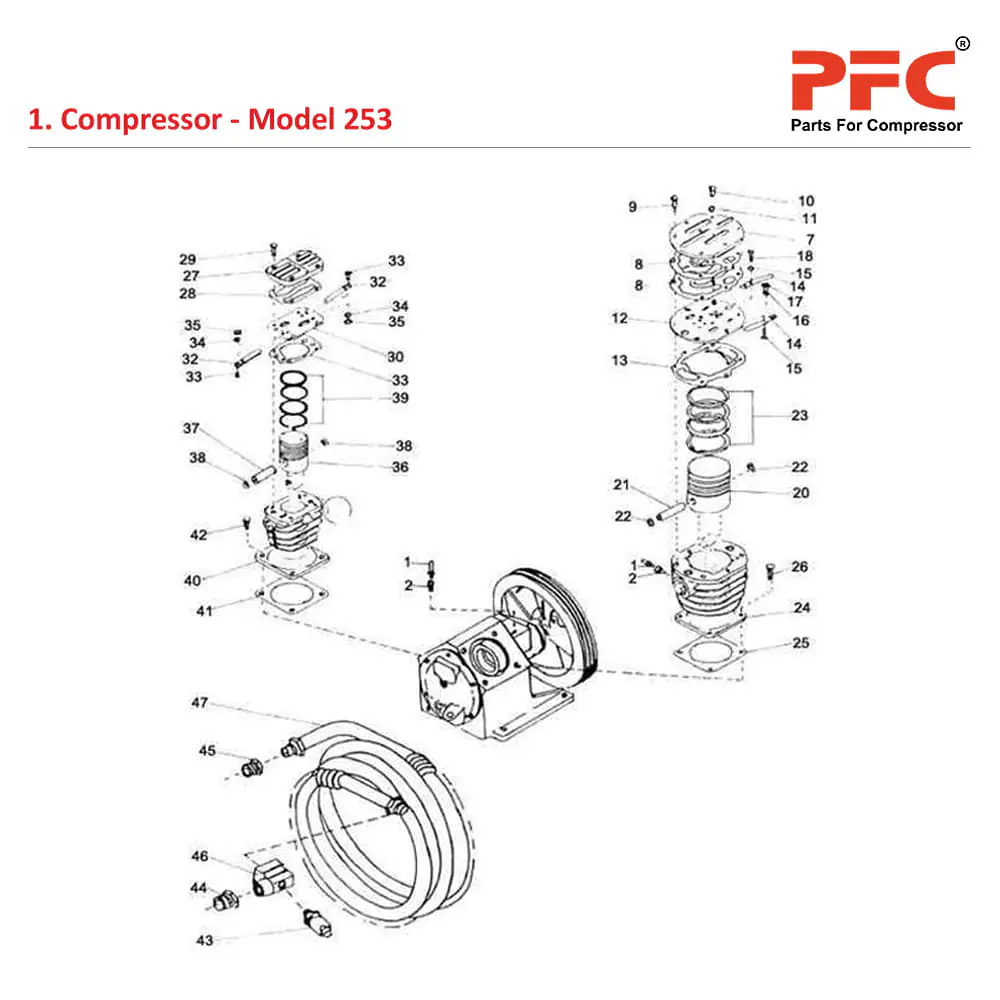

Cylinder and Piston Assembly
| Sr.No | Ref. Part Number | Description | Qty |
| 1-1 | 37003761 | Tube Asm. Breather W/Nuts | 1 |
| 1-2 | 95082475 | Connector - Tube | 2 |
| 1-* | 32166555 | Bracket Intercooler Clamp | 1 |
| 1-* | 32157356 | Clamp Intercooler Bracket | 1 |
| 1-* | 95416335 | Nut Hex 1/4" | 2 |
| 1-* | 97012868 | Washer Steel | 2 |
| 1-7 | 37127370 | Head - Air 5 Inch | 1 |
| 1-8 | 30280358 | Gasket - Air Head | 1 |
| 1-9 | 95104188 | Capscrew Hex Head | 5 |
| 1-* | 95104196 | Capscrew Hex Head | 1 |
| 1-10 | 95468443 | Capscrew Hex Head | 2 |
| 1-11 | 30345227 | Washer - Steel | 2 |
| 1-12 | 30218770 | Spacer Complete | 1 |
| 1-13 | 30280366 | Gasket - Spacer | 1 |
| 1-14 | 30221170 | – Valve - Finger | 4 |
| 1-15 | 32035503 | – Screw Fillister Head | 4 |
| 1-16 | 32035479 | – Washer - Lock | 4 |
| 1-17 | 95416335 | – Nut - Hex | 4 |
| 1-18 | 32035511 | – Screw - Fillister Head | 4 |
| - | 30326573 | Washer Steel | 4 |
| 1-20 | 32054389 | Piston/Pin Assembly 5 Inch | 1 |
| 1-21 | 30297022 | – Pin - Piston | 1 |
| 1-22 | 30287791 | – Ring - Lock | 2 |
| 1-23 | 32015174 | Set - Piston Ring | 1 |
| 1-24 | - | B Cylinder 5 Inch | 1 |
| 1-25 | 30294201 | Gasket - Flange | 1 |
| 1-26 | 95053575 | Capscrew Hex Head | 4 |
| 1-27 | 37127354 | Head - Air 3 Inch | 1 |
| 1-28 | 32232761 | Gasket Air Head | 1 |
| 1-29 | 95103818 | Capscrew Hex Head | 3 |
| 1-* | 95103826 | Capscrew Hex Head | 1 |
| 1-30 | 30218788 | Spacer Complete | 1 |
| 1-31 | 32232779 | Gasket - Spacer | 1 |
| 1-32 | 30221170 | – Valve Finger | 3 |
| 1-33 | 32035508 | – Screw - Fillister Head | 4 |
| 1-34 | 32217382 | – Washer Lock | 4 |
| 1-35 | 95416335 | – Nut - Hex | 4 |
| 1-36 | 32054322 | Piston/Pin Assembly 3 Inch | 1 |
| 1-37 | 30297063 | – Pin - Piston | 1 |
| 1-38 | 30287791 | – Ring - Lock | 2 |
| 1-39 | 32015133 | Set - Piston Ring | 1 |
| 1-40 | 37128592 | Cylinder - 3 Inch | 1 |
| 1-41 | 30294201 | Gasket - Flange | 1 |
| 1-42 | 95053575 | Capscrew Hex Head | 4 |
| 1-43 | 72062151 | Valve - Intercooler Safety | 1 |
| 1-44 | 95056073 | Bushing, Reducing | 1 |
| 1-45 | 95083275 | Connector Male | 1 |
| 1-46 | 30212682 | Elbow, Tube - 3/4" | 1 |
| 1-47 | 32164246 | Tube Assy. Intercooler | 1 |
