Cylinder and Piston For Ingersoll Rand Type 30 Model 7T2
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Cylinder and Piston For Ingersoll Rand Type 30 Model 7T2 from India.

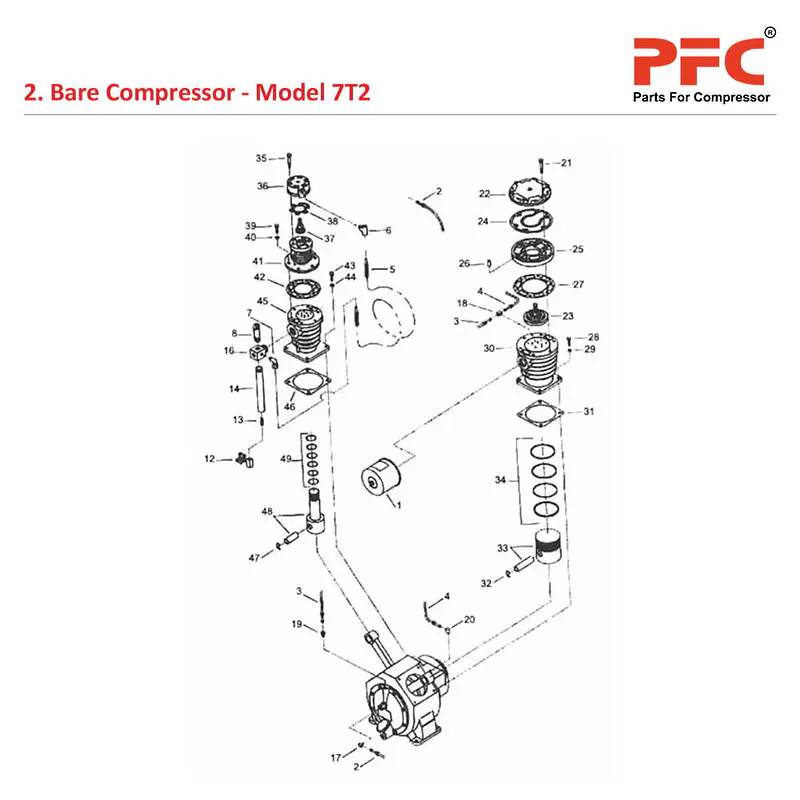

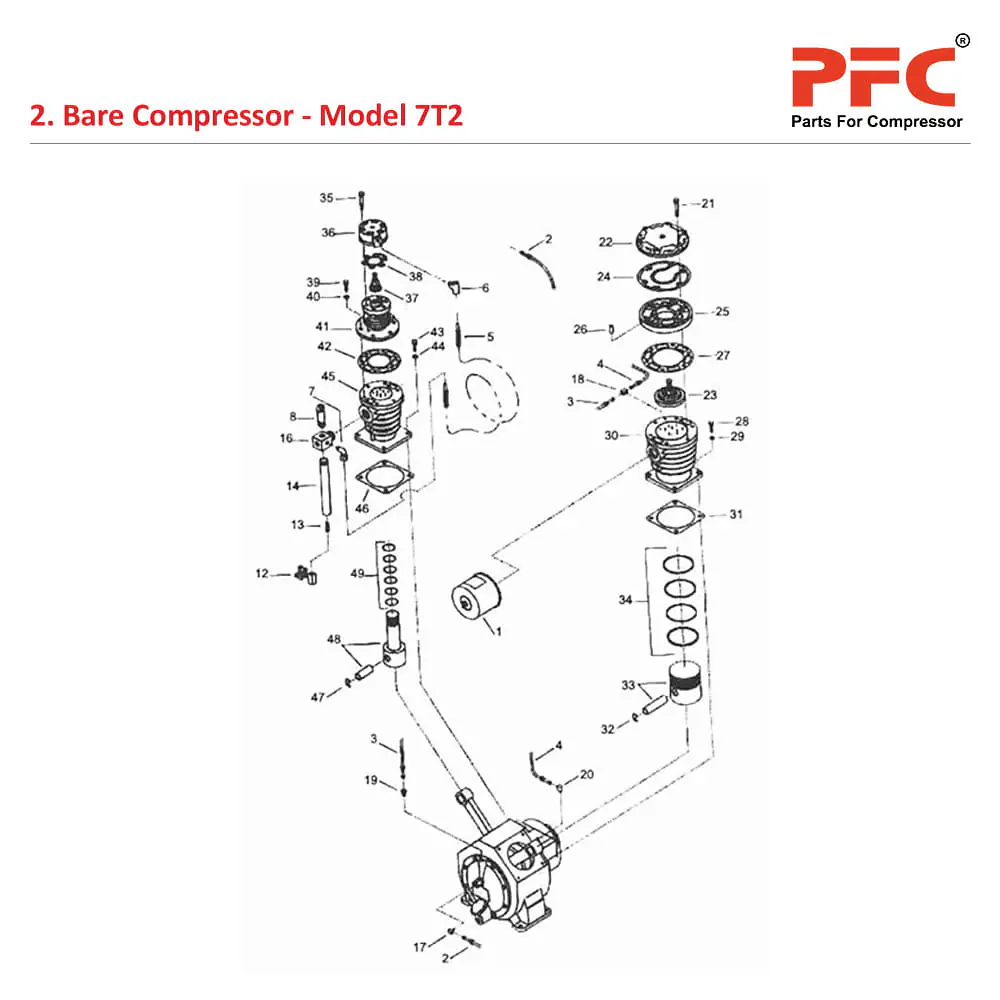

Cylinder and Piston
| Sr.No | Ref. Part Number | Description | Qty |
| 2-1 | 32109779 | Filter 10 Micron | 1 |
| 2-2 | 37152196 | Tube Assembly Intercooler/P.V | 1 |
| 2-3 | 37152154 | Tube Assembly Fec PV/Inlet/A/H | 1 |
| 2-4 | 37152147 | Tube Assembly Breather Frame/Inlet | 1 |
| 2-5 | 30812028 | Tube Intercooler Without Nut | 1 |
| 2-6 | 95040184 | Elbow Tube 1/2" od * 3/8 * NPT Male | 1 |
| 2-7 | 95083184 | Connector Tube 1/2" * 3/8" NPT | 1 |
| 2-8 | 31385503 | Valve Safety 1/2 X 600 PSIG | 1 |
| 2-12 | 30666002 | Valve Needle 1/4 | 1 |
| 2-13 | 32175051 | Nipple Hex 1/4 WP 1000 PSIG | 2 |
| 2-14 | 94495686 | Leg Condensate Assembly | 1 |
| 2-15 | 95033593 | Plug Pipe Sq. HD.1/4" | 1 |
| 2-16 | 94495694 | Connection Air Outlet | 1 |
| 2-17 | 95110441 | Elbow Tube 5/16" OD * 1/4" NPT Male | 1 |
| 2-18 | 95007522 | Tee Tube 5/16" Tube X 18" NPT | 1 |
| 2-19 | 95082491 | Connector Tube 5/16" * 1/4" NPT | 2 |
| 2-20 | 95110441 | Elbow Tube 5/16" * 1/4" NPT Male | 1 |
| 2-21 | 95053054 | Screw Cap Hex 1/2" X 3" | 6 |
| 2-22 | 37130481 | Head Air Top AS & S | 1 |
| 2-23 | 37004843 | Valve Assembly 50 | 1 |
| 2-24 | 37007747 | Gasket Air Head Center | 1 |
| 2-25 | 37130499 | Head Air Elbow 5" | 1 |
| 2-26 | 37114030 | Down Pin for Air Head | 1 |
| 2-27 | 30294193 | Gasket Air Head | 1 |
| 2-28 | 95053567 | Capscrew -Hex Head 1/2" X 1-1/4" | 4 |
| 2-29 | 95674701 | Washer Copper 1/2" | 4 |
| 2-30 | 37128782 | Cylinder LP 5" 15T | 1 |
| 2-31 | 30294235 | Gasket Cylinder Flange | 1 |
| 2-32 | 30288450 | Ring Lock | 2 |
| 2-33 | 32054504 | Piston Pin Assembly 5" LP | 1 |
| 2-33A | 30288427 | – Pin Piston | 1 |
| 2-34 | 32198376 | Ring Piston Set LP - 5" Dia. (32015174) | 1 |
| 2-35 | 95104212 | Screw Cap Hex 1/2" X 2-3/4" | 6 |
| 2-36 | 37130655 | Head Air 1-5/8" | 1 |
| 2-37 | 31517725 | Valve Complete 1-5/8" | 1 |
| 2-38 | 30294284 | Gasket Air Head | 1 |
| 2-39 | 95053567 | Screw Cap Hex Head 1/2" X 1-1/4" | 6 |
| 2-40 | 95674701 | Washer Copper 1/2" | 6 |
| 2-41 | 37128519 | Cylinder HP 2" | 1 |
| 2-42 | 30294508 | Gasket Air Head | 1 |
| 2-43 | 95053567 | Screw Cap Hex Head 1/2" X 1-1/4" | 4 |
| 2-44 | 95674701 | Washer Copper 1/2" | 4 |
| 2-45 | 37128501 | Cylinder HP 3-1/2" | 1 |
| 2-46 | 30294235 | Gasket Cylinder Flange | 1 |
| 2-47 | 30288450 | Ring Lock | 2 |
| 2-48 | 32054538 | Piston Pin Assembly 3" | 1 |
| 2-48A | 30288385 | – Pin Piston HP | 1 |
| 2-49 | 37138088 | Ring Piston Set 2" | 1 |
