Cylinders - Atlas Copco Air Compressor Parts

availability: This product is not available in the selected currency.

  • Nothing

Description

Air Filters And Cylinders for Atlas Copco Air Compressor

PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Air Filters And Cylinders for Atlas Copco Air Compressor from India

View PDF

 Product

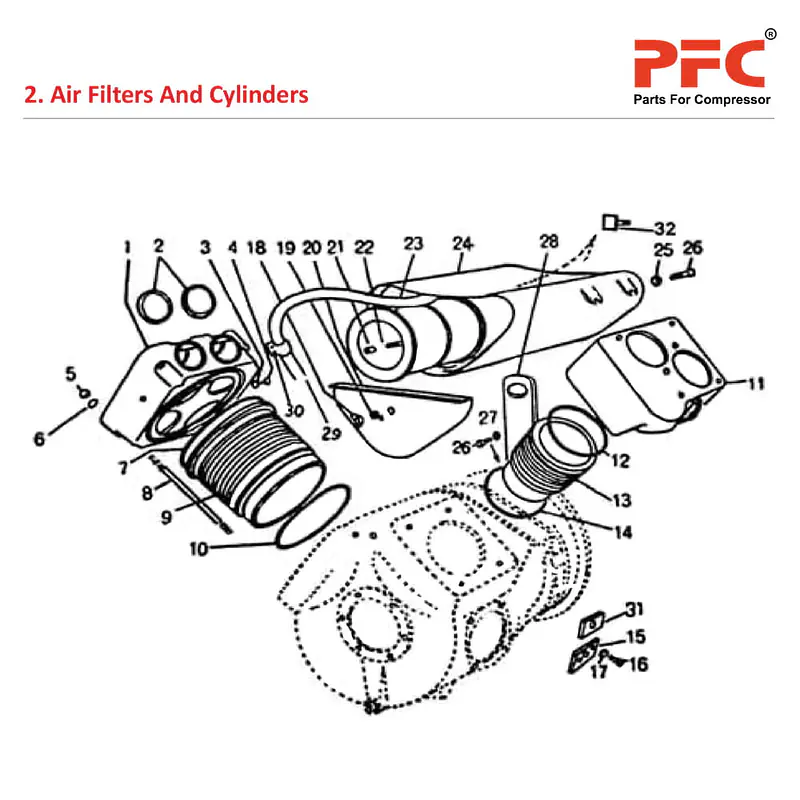

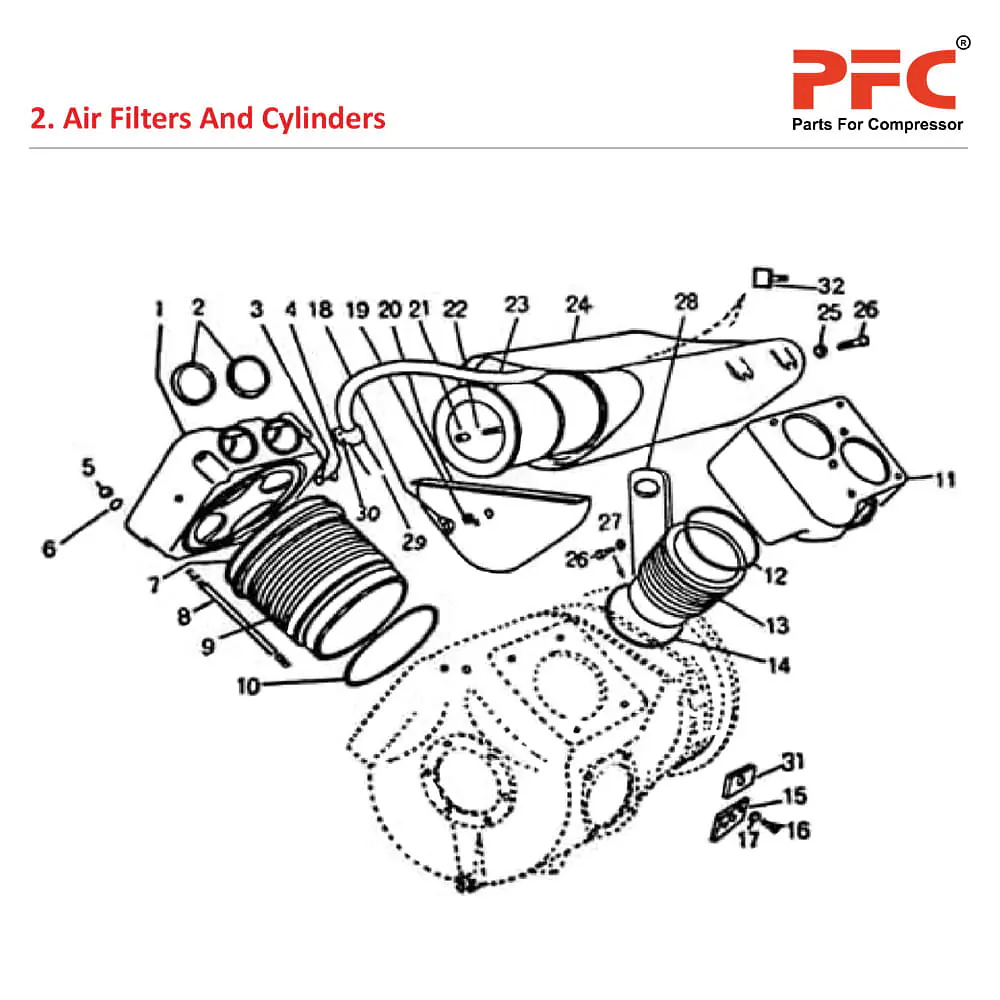

02. Air Filters And Cylinder

No. Description   Ref. Part No.
1 Head, LP    1614030202
2 Rubber ring   1404178000
3 Copper washer   0653104100
4 Plug   0686370100
5 Nut   0268310800
6 Spring washer   0333213800
7 Cord 3 x 796   1619033300
8 Stud   1404124800
- Liner Set LP & HP (9&13)   VT LINER
9 Liner LP   1614130002
10 O-ring   0663786800
11 Head, HP   1614030302
12 Cord 3 x 512   1619033400
13 Liner HP   1614030102
14 O-ring   0663785400
15 Plate, mounting   1613023700
16 Screw   0144344700
17 Spring washer   0333214300
18 Nut, wing   0296130600
19 Washer   0300014800
20 Cover   1615015802
21 Nylon tube   1615017800
22 Stem   1613018700
23 Element, filter   1619161300
24 Housing, air filter   1613017004
25 Spring washer   0333213800
26 Screw   0144336000
27 Copper washer   0653106200
28 Eye, lifting   1613043002
29 Plastic tube (drain)   1613121702
30 Clamp   0346210800
31 Shim   1613120600
32 Warning device   1619122100

Details

  • type: product
  • SKU: VT402
