DESCRIPTION

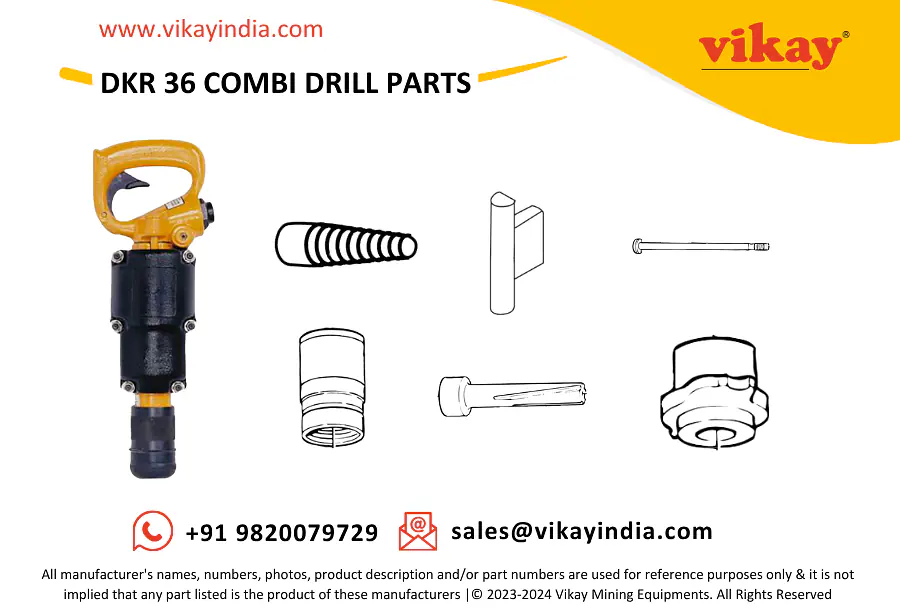

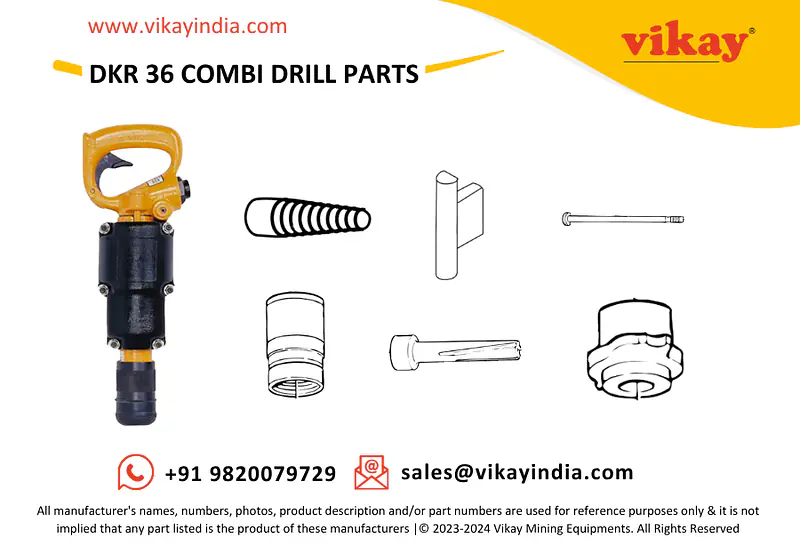

DKR 36 Combi Drill Spare Parts
Vikay is a worldwide distributor of DKR 36 Combi Drill Spare Parts suitable for Atlas Copco DKR 36 Combi Drill from India.
| No. | Description | Part number | Quantity |
| 1(2-10) | Handle, complete | 3315126880 | 1 |
| 2 | Handle | - | 1 |
| 3 | Bushing | - | 1 |
| 4 | O-ring | 3315127000 | 1 |
| 5 | Valve stem | 3315127100 | 1 |
| 6 | Spring | 3315127200 | 1 |
| 7 | Nipple | 3315127300 | 1 |
| 8 | Oil felt | 3315127400 | 1 |
| 9 | Oil plug | 3315127500 | 1 |
| 10 | Pin | 3315127600 | 1 |
| 11 | Trigger | 3315127700 | 1 |
| 12 | Gasket | 3315127800 | 1 |
| 13 | Hose nipple | 3315127900 | 1 |
| 14 | Valve cover | 3315128000 | 1 |
| 15 | Valve | 3315128100 | 1 |
| 16 | Valve housing | 3315128200 | 1 |
| 17 | Piston | 3315128300 | 1 |
| 18 | Side bolt | 3315128400 | 2 |
| 19 | Nut | 3315128500 | 2 |
| 20 | Cylinder | 3315128600 | 1 |
| 21 | Intermediate part | 3315128700 | 1 |
| 22 | Ratchet ring | 3315128800 | 1 |
| 23 | Pawl spring | 3315128900 | 2 |
| 24 | Pawl | 3315129000 | 2 |
| 25 | Driver | 3315129100 | 1 |
| 26 | Front head | 3315129200 | 1 |
| 27 | Plug | 3315129300 | 1 |
| 28 | Chuck bolt | 3315129400 | 17 |
| 29 | Rotation chuck ( Round 19 mm. Hexagon 14.7 x 89 mm Round 3⁄4 in. Hexagon 9⁄16 x 3 1⁄2 in.) | 3315129600 | 1 |
| 30 | Steel retainer ball | 3315129700 | 4 |
| 31 | Retainer spring | 3315129900 | 1 |
| 32(33-34) | Retainer, complete | 3315130000 | 1 |
| 33 | Retainer | - | 1 |
| 34 | Dust hood | 3315130100 | 1 |
| 35 | Lock ring | 3315130200 | 1 |
| 36 | Washer | 3315130300 | 1 |
| 37(38-41) | Silencer, complete | 3315130400 | 1 |
| 38 | Silencer | - | 1 |
| 39 | Screw | 3315130500 | 6 |
| 40 | Washer | 12 | |
| 41 | Nut | 3315130700 | 6 |
| 42 | Noise level label | - | 1 |
| 43 | Safety label | 3310160200 | 1 |
| 44 | Data plate | - | 1 |
Working tools
Round 9⁄16 x 31⁄2 in. (14.7 x 89 mm)
| No. | Description | W (in.) | L (in.) | LT (in.) | Wt (lb) | Part number |
| 1 | Moil point | - | 81⁄4 | 12 | 1.3 | 3083326300 |
| 2 | Narrow chisel | - | 81⁄4 | 12 | 1.3 | 3083326400 |
Round 3⁄4 x 3 1⁄4 in. (19 x 95 mm)
| No. | Description | W (in.) | L (in.) | LT (in.) | Wt (lb) | Part number |
| 1 | Moil point | - | 6 | 10 | 1.5 | 3083416000 |
| - | 11 | 15 | 2.2 | 3083326100 | ||
| 2 | Narrow chisel | - | 6 | 10 | 1.5 | 3083416100 |
| - | 11 | 15 | 2.2 | 3083326200 | ||
| 3 | Wide chisel | 3 | 6 | 10 | 1.8 | 3083416500 |
| 4 | Shaft for bush hammer | - | 5 | 9 | 1.3 | 3083416200 |
| 5 | Bush hammer TC head | 11⁄2 | - | - | 1.1 | 3083322600 |
| 6 | Bush hammer TC head | 11⁄2 | - | - | 1.1 | 3083322700 |
| 7 | Bush hammer steel head | 11⁄4 | - | - | 0.4 | 3083416300 |
Round 14.7 x 89 mm ( 9⁄16 x 3 1⁄2 in.)
| No. | Description | W (mm) | L (mm) | LT (mm) | Wt (kg) | Part number |
| 1 | Moil point | - | 210 | 300 | 0.6 | 3083326300 |
| 2 | Narrow chisel | - | 210 | 300 | 0.6 | 3083326400 |
Round 19 x 95 mm ( 3⁄4 x 3 1⁄4 in.)
| No. | Description | W (mm) | L (mm) | LT (mm) | Wt (kg) | Part number |
| 1 | Moil point | - | 150 | 255 | 0.7 | 3083416000 |
| - | 275 | 380 | 1.0 | 3083326100 | ||
| 2 | Narrow chisel | - | 150 | 255 | 0.7 | 3083416100 |
| - | 275 | 380 | 1.0 | 3083326200 | ||
| 3 | Wide chisel | 75 | 150 | 255 | 0.8 | 3083416500 |
| 4 | Shaft for bush hammer | - | 125 | 230 | 0.6 | 3083416200 |
| 5 | Bush hammer TC head | 40 | - | - | 0.5 | 3083322600 |
| 6 | Bush hammer TC head | 40 | - | - | 0.5 | 3083322700 |
| 7 | Bush hammer steel head | 32 | - | - | 0.2 | 3083416300 |
