Drill Steel Support Comp. (102 mm) 3162111085A Replacement
This product is not available in the selected currency.
In Stock
Backordered
Out of Stock
Description

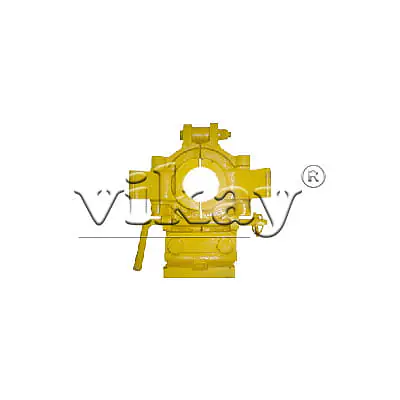

Drill Steel Support Comp with plate & bolt (102 mm) AirROC D40 3162111085A Replacement
Vikay is a global supplier of new aftermarket replacement parts - Drill Steel Support Comp with plate & bolt (102 mm) AirROC D40 3162111085A Replacement for Atlas Copco Wagon Drill Bvb-25 from India
Product
- Page 1

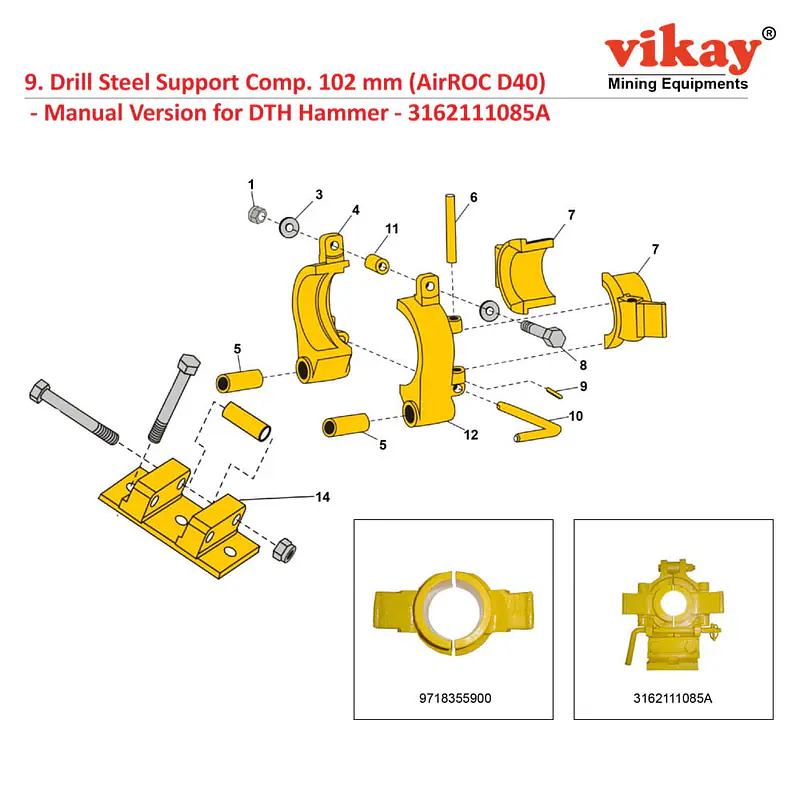

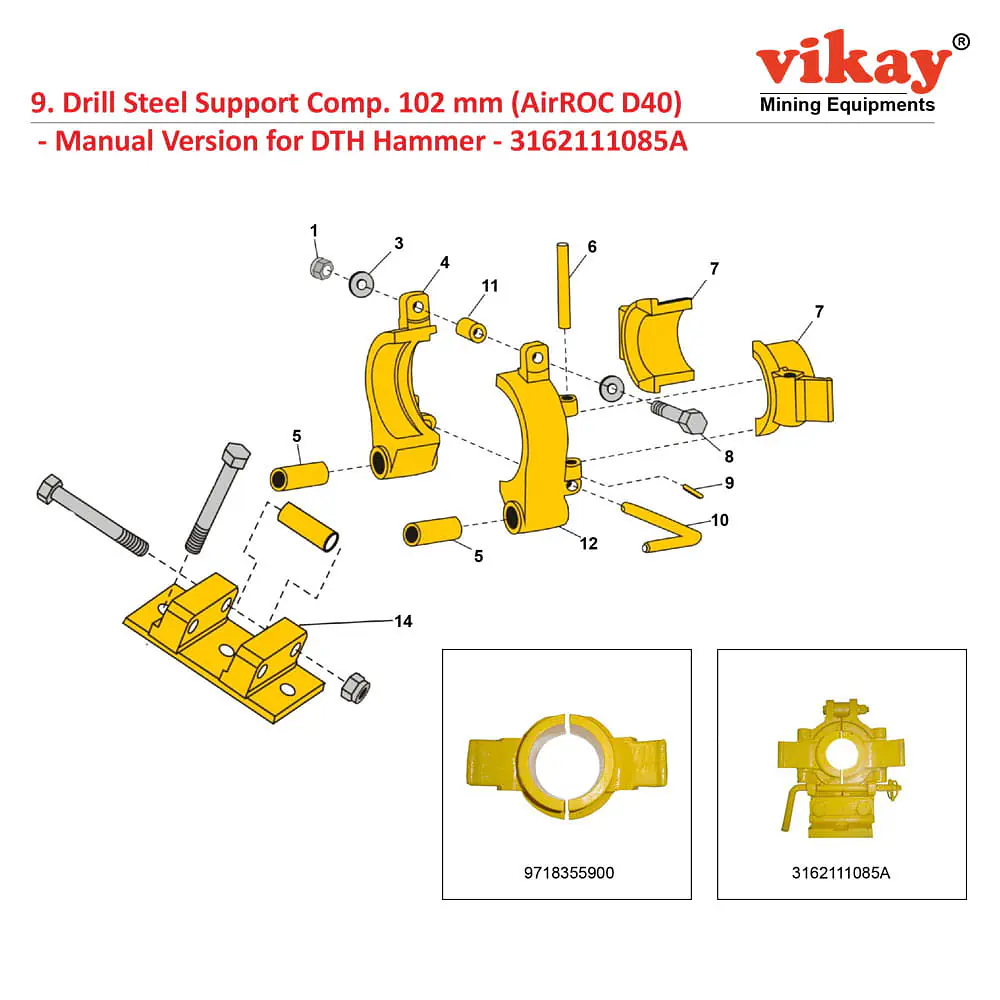

Drill Steel Support Comp (102 mm) AirROC D40 3162111085A Replacement
| No. | Description | Modified | Ref. Part No. | ||
| - | Drill Steel Support Comp. With Plate & Bolt (102mm)-ROC D40 | 3162111085A | |||
| 1 | - Nut (Modified) | * | M100190 | ||
| 3 | - Washer | 3161014300 | |||
| 4 | -- Support Right | ||||
| 5 | - Bushing | 3162104800 | |||
| 6 | - Shaft | 3162105400 | |||
| 7 | - Insert For 102mm (4-) | 9718355900 | |||
| 8 | - Screw | 0147148900 | |||
| 9 | - Spring Pin | 0108130100 | |||
| 10 | - Locking Rod Complete (Modified) | * | M100198 | ||
| 11 | Bushing | 3162111700 | |||
| 12 | -- Support Left | ||||
| 13A | Drill Still Support - 102mm (4) | 3162111085 | |||
| 14 | Drill Tube Support Attachment (See Page No. 24) |
Details
- type: product
- SKU: 3162111085A
