Drill Steel Support Comp. (32 mm) 3162111084A Replacement
Regular price
₹0.00
Drill Steel Support Comp. (32 mm) 3162111084A Replacement
Regular price
₹0.00
DESCRIPTION
Drill Steel Support Comp. 32 mm With Plate and Bolt Replacement
Vikay is a global supplier of new aftermarket replacement parts - Drill Steel Support Comp. 32 mm With Plate and Bolt Replacement for Atlas Copco Wagon Drill Bvb-25 from India
Product
- Page 1

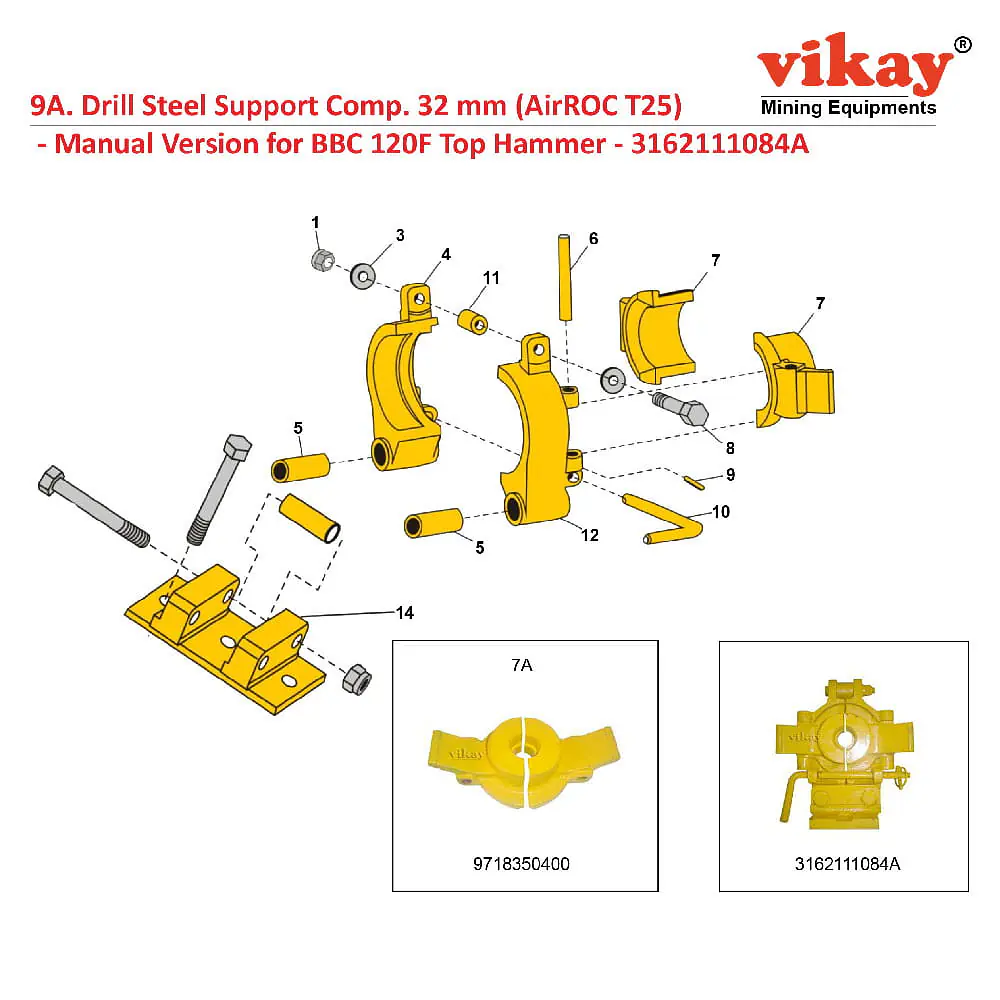

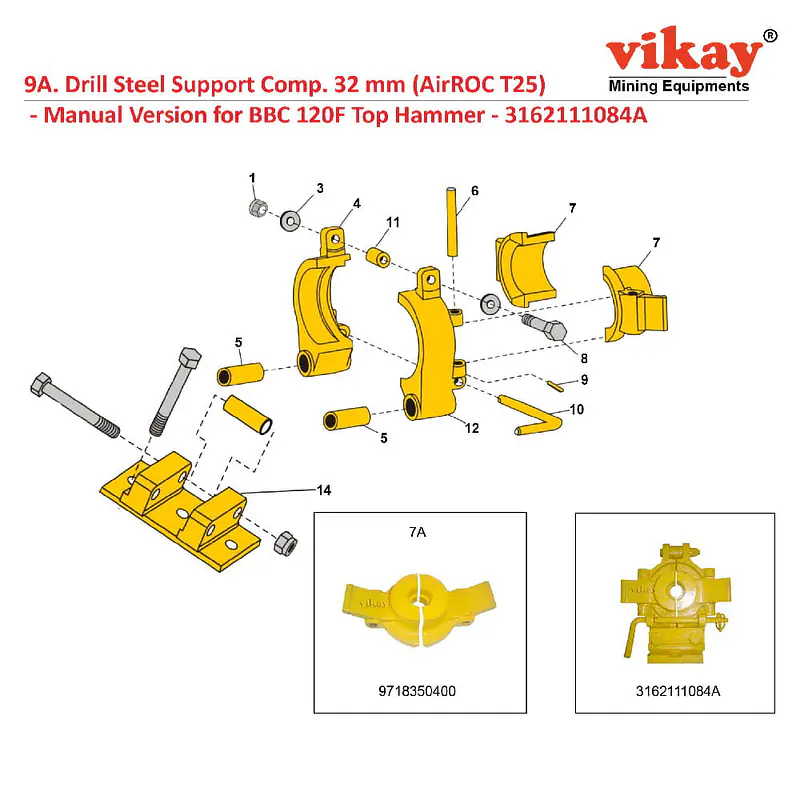

Drill Steel Support Comp. 32 mm With Plate and Bolt Replacement
| No. | Description | Modified | Ref. Part No. | QTY | |
| - | Drill Steel Support Comp. With Plate & Bolt (32mm) - Bbc-120F | 3162111084A | 1 | ||
| 1 | - Nut (Modified) | * | M100190 | 1 | |
| 3 | - Washer | 3161014300 | 1 | ||
| 4 | -- Support Right | 1 | |||
| 5 | - Bushing | 3162104800 | 2 | ||
| 6 | - Shaft | 3162105400 | 2 | ||
| 7A | - Insert For 32mm (1 1/4-) | 9718350400 | 2 | ||
| 8 | - Screw | 0147148900 | 1 | ||
| 9 | - Spring Pin | 0108130100 | 2 | ||
| 10 | - Locking Rod Complete (Modified) | * | M100198 | 1 | |
| 11 | - Bushing | 3162111700 | 1 | ||
| 12 | -- Support Left | 1 | |||
| 13A | - Drill Still Support - 32mm (1 1/4-) | 3162111084 | 1 | ||
| 14 | - Drill Tube Support Attachment (See Page No. 25) | 1 |
