DESCRIPTION
Drill Steel Support Comp Pneumatic Version
Vikay is a global supplier of new aftermarket replacement parts - Drill Steel Support Comp Pneumatic Version for Atlas Copco Wagon Drill Bvb-25 from India
Product

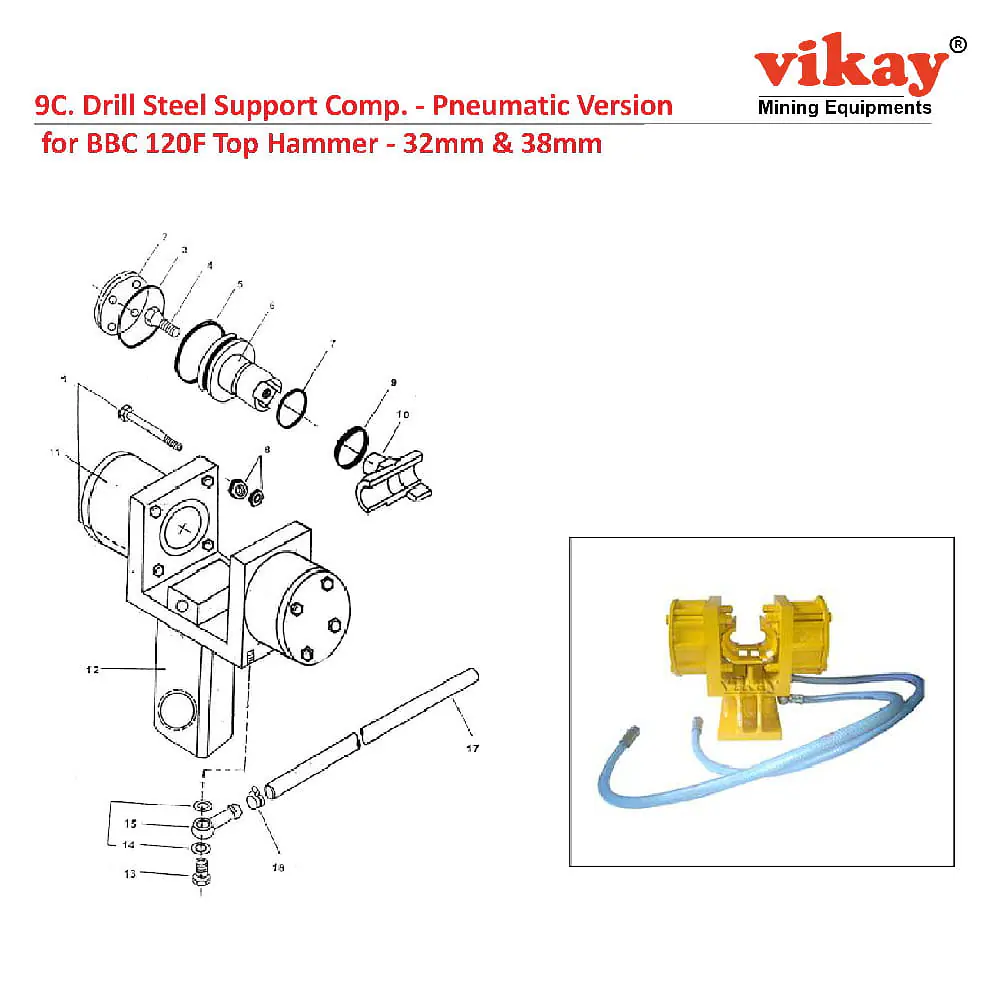

Drill Steel Support Comp Pneumatic Version
| No. | Description | Modified | Ref. Part No. | QTY | |
| - | Drill Steel Support (38mm) - Pneumatic Version | VK PDSX38 | 1 | ||
| - | Drill Steel Support (32mm) - Pneumatic Version | VK PDSX32 | 1 | ||
| 1 | Bolt | M9062 | 8 | ||
| 2 | Cover | M9063 | 2 | ||
| 3 | O Ring | 0663614800 | * | M9064 | 2 |
| 4 | Screw | 3142026400 | 2 | ||
| 5 | O Ring | 0663214900 | 2 | ||
| 6 | Piston | M9067 | 2 | ||
| 7 | O Ring | 0663613500 | * | M9068 | 2 |
| 8 | Nut | M9069 | 16 | ||
| 9 | Seal Ring | 0665919300 | * | M9070 | 2 |
| 10A | Drill Steel Support Hal, 38 mm (11/2-) Round | M9071A | 2 | ||
| 10B | Drill Steel Support Hal, 32 mm (11/4-) Round | 3142026200 | * | M9071 | 2 |
| 11 | Cylinder | M9072 | 2 | ||
| - | Cylinder & Piston Complete Assembly | M9072 & 67 | 2 | ||
| 12 | Drill Steel Support | M9073 | 1 | ||
| 13 | Pressure Screw | 0627511300 | * | M9074 | 2 |
| 14 | Packing | 0653107000 | * | M9075 | 4 |
| 15 | Banjo Connection | 9000029400 | * | M9076 | 2 |
| 16 | Hose Clamp | 0347610400 | * | M9077 | 2 |
| 17 | - Air Hose | 9030020000 | * | M9078 | 2 |
| - | Bushing For BSP-10 | 3142026100 | |||
| - | Piston For BSP-10 | 3142026300 | |||
| - | Lock Ring For BSP-10 | 0335217700 | |||
| - | Cover For BSP-10 | 3142026500 |
