DESCRIPTION
Drive Unit VK RRWP Replacement Parts
Vikay is a global supplier of new aftermarket replacement parts - Drive Unit for Alimak Pneumatic Raise Climber from India
Product
- Page 1

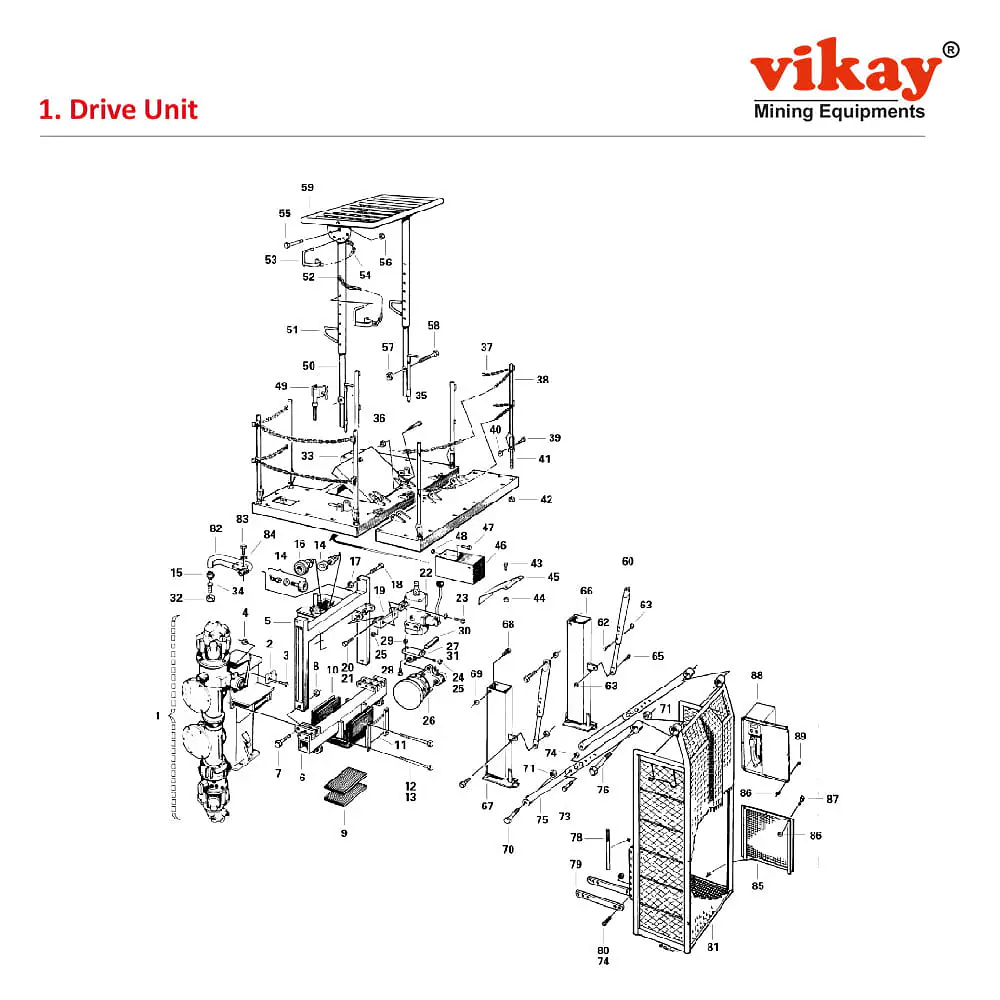

Drive Unit VK RRWP
| No. | Description | Designation | Ref. Part No. | ||
| Work Platform With Cages & Safety Equipments | VK RRWP | ||||
| 1 | Drive unit | 0178694000 | |||
| 2 | Stop cleat | 0471155000 | |||
| 3 | Screw | M6S 16x45-8.8-fz | 3000071629 | ||
| 4 | Lock nut | L-K M6M-16-8.-fz | 3000438124 | ||
| 5 | Frame | 0271156000 | |||
| 6 | Supporting beam | 0371152000 | |||
| 7 | Screw | M6S 24x150-8.8-fz | 3000071736 | ||
| 8 | Lock nut | L-K M6M24-8.-fz | 3000438128 | ||
| 9 | Rubber sheet | 0471150000 | |||
| 10 | Rubber sheet | 0471149000 | |||
| 11 | Anchoring plate | 9001011000 | |||
| 12 | Screw | M6S 20x200-8.8-fz | 3000071697 | ||
| 13 | Lock nut | L-K M6M20-8.-fz | 3000438126 | ||
| 14 | Guide roller Ø 72 | 438665 | 9018650000 | ||
| 15 | Hexagon nipple | 3000969347 | |||
| 16 | Guide roller | Ø 124 | 0471138000 | ||
| Screw | MC6S 20x70-8.8-fz | 3000669678 | |||
| Lock nut | L-K M6M20-8.-fz | 3000438126 | |||
| 17 | Lock nut | L-K M6M24-8.-fz | 3000438128 | ||
| 18 | Screw | M6S 24x140-8.8-fz | 3000071735 | ||
| 19 | Bracket | 0373685000 | |||
| 20 | Screw | M6S 12x50-8.8.-fz | 3000071542 | ||
| 21 | Lock nut | L-K M6M 12-8.-fz | 3000438122 | ||
| 22 | Control valve | 0145097000 | |||
| 23 | Screw | M6S 12x50-8.8-fz | 3000071542 | ||
| 24 | Stop screw | T6SS 8x25 | 3000150453 | ||
| 25 | Nut | M6M 8-8,-fz | 3000081118 | ||
| 26 | Safety device | 0184338000 | |||
| 27 | Bracket | 9064710000 | |||
| 28 | Screw | M6S 16x50-8.8-fz | 3000071630 | ||
| 29 | Lock nut | L-K M6M 16-8.-fz | 3000438124 | ||
| 30 | Shaft | 0484360000 | |||
| 31 | Grease nipple | 3000221026 | |||
| 32 | Nut | 3000970335 | |||
| 33 | Platform | ||||
| 34 | Nipple | 3000969177 | |||
| 35 | Screw | M6S 20x110-8.8-fz | 3000071686 | ||
| 36 | Lock nut | L-K M6M 20-8.-fz | 3000438126 | ||
| 37 | Chain | 0444814000 | |||
| 38-42 | Rail post | 0373481000 | |||
| 43 | Screw | M6S 12x35-8.8-fz | 3000071538 | ||
| 44 | Lock nut | L- K M6M 12-8.-fz | 3000438122 | ||
| 45 | Protective plate | 0374503000 | |||
| 46 | Tool box | 0274736000 | |||
| 47 | Screw | M6S 10x30-8.8-fz | 3000071495 | ||
| 48 | Lock nut | L-K M6M12-8.-fz | 3000438122 | ||
| 49 | Mounting pin | 0381399000 | |||
| 50-58 | Compl. support leg | 0374295000 | |||
| 50 | Support leg | 0374293000 | |||
| 51 | Support leg, upper | 0374292000 | |||
| 52 | Chain | 3000308040 | |||
| 53 | Cotter | 0474294000 | |||
| 54 | Chain | 3000308040 | |||
| 55 | Screw | M6S 20x120-8.8-fz | 3000071688 | ||
| 56 | Lock nut | L-K M6M 20-8.-fz | 3000438126 | ||
| 57 | Lock nut | L-K M6M 20-8.-fz | 3000438126 | ||
| 58 | Screw | M6S 20x120-8.8-fz | 3000071688 | ||
| 59 | Safety roof | 0274291000 | |||
| 60-65 | Telescopic tube | 0474863000 | |||
| 66 | Drill holder | 0374864000 | |||
| 67 | Drill holder | 0374859000 | |||
| 68 | Screw | M6S 12x35-8.8-fz | 3000071538 | ||
| 69 | Lock nut | L-K M6M12-8.-fz | 3000438122 | ||
| 70 | Screw | M6S 24x140-8.8-fz | 3000071735 | ||
| 71 | Lock nut | L-K M6M 24-8.-fz | 3000438128 | ||
| 72 | |||||
| 73 | Screw | M6S 16x90-8.8.-fz | 3000071638 | ||
| 74 | Lock Nut | L-K M6M 16-8.-fz | 3000438124 | ||
| 75 | Compl. Support Leg. | 975-1825 mm | 0473895000 | ||
| Compl. Support Leg. | 1655-2555 mm | 0474256000 | |||
| 76 | Screw | M6S 24x260-8.8-fz | 3000071744 | ||
| 77 | |||||
| 78 | Hand Lever | 0417396000 | |||
| 79 | Bracket | 0487703000 | |||
| 80 | Screw | M6S 16x50-8.8.-fz | 3000071630 | ||
| 81 | Cage | 0273695000 | |||
| 82 | Hose Guide | 0373683000 | |||
| 83 | Screw | M6S 16x30-8.8.-fz | 3000071624 | ||
| 84 | Washer | BRB 17x30-fz | 3000091186 | ||
| 85 | Door Plate | 0486973000 | |||
| 86 | Lock Nut | L-K M6M 8-8.-fz | 3000438118 | ||
| 87 | Screw | M6S 8x25-8.8-fz | 3000071453 | ||
| 88 | Box W. Telephone | See circuit diagram | |||
| 89 | Hook | 9001068000 |
