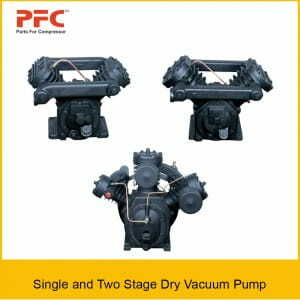

Single and Two Stage Dry Bare Vacuum Pump
PFC Parts for Compressor is a global supplier of Single and Two Stage Dry Bare Vacuum Pump from India.
These Dry Bare vacuum pumps are single acting , air cooled reciprocating units in single and two stage constructions These piston type vacuum pumps achieve vacuum up to 29.0-Hg (737 mm ) for single stage and up to 29.6-Hg (752mm) for two stage configuration
These dry Type Vacuum Pump ideally designed for Printing, Plastics, Material Handling, Food Processing Packing, health care and many other Industries.
Model :V285 , V285T , V294 , V294T , V305 , V305T , V57 , V57T , V65 , V65T
| Single and Two Stage Dry Vacuum Pumps | |||||
| Model | Motor hp |
No. of Cylinders |
Piston Displacement cfm |
Vacuum (Hg) Pressure | |
| Inches | mm | ||||
| V285 | 1.5 | 2 | 21.6 | 29 | 736.6 |
| V285T | 1.5 | 2 | 10.8 | 29.6 | 751.8 |
| V294 | 2 | 2 | 34.6 | 29 | 736.6 |
| V294T | 2 | 2 | 17.3 | 29.65 | 753.1 |
| V305 | 5 | 2 | 60 | 29 | 736.6 |
| V305T | 5 | 2 | 30 | 29.7 | 754.4 |
| V57 | 7.5 | 2 | 110 | 29 | 736.8 |
| V57T | 7.5 | 2 | 55 | 29.65 | 753.1 |
| V65 | 10 | 3 | 149.6 | 29.2 | 741.7 |
| V65T | 10 | 3 | 99 | 29.65 | 753.1 |
