DESCRIPTION
Dumping Cylinder Parts
Vikay is a global supplier of new aftermarket replacement parts - Dumping Cylinder for Atlas Copco Mucking Loader Cavo-310 from India
Product
- Page 1

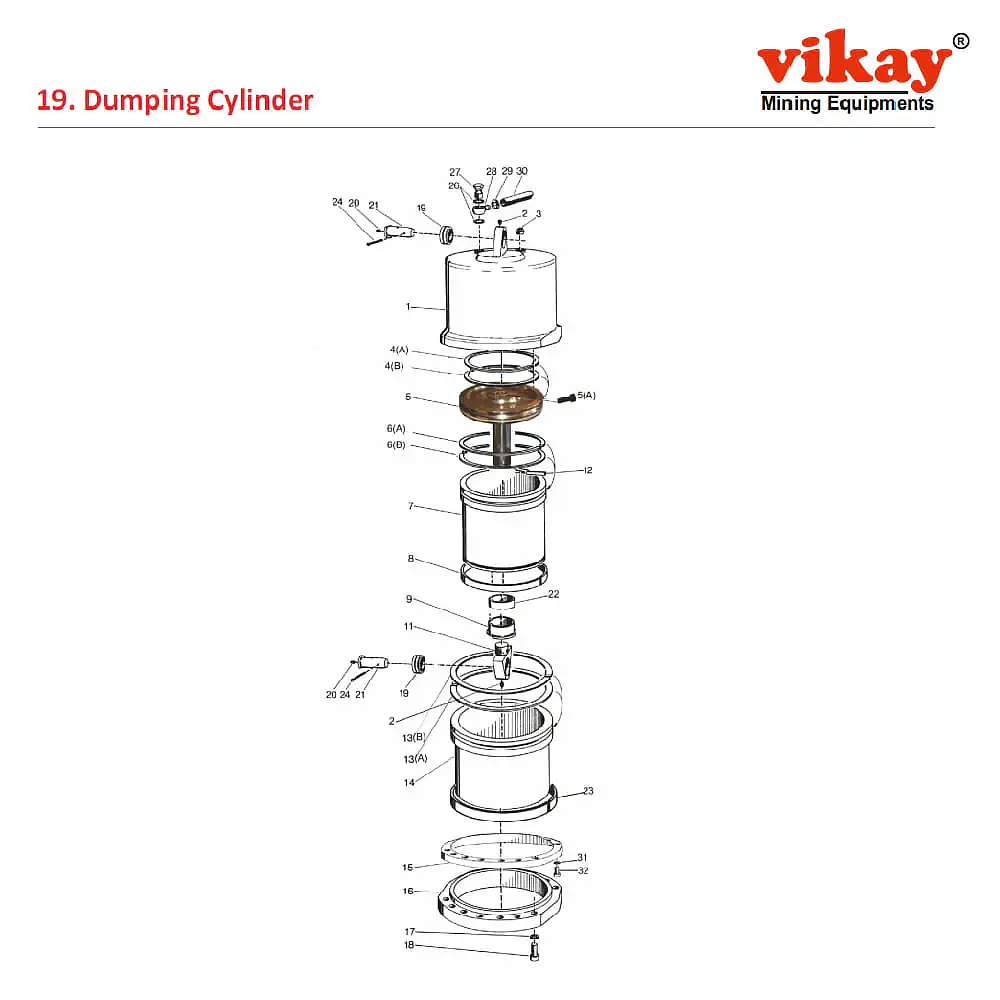

Dumping Cylinder Parts
| No. | Description | Modified | Ref. Part No. | ||
| - | Dumping Cylinder | 5112105080 | * | M10614 | |
| 1 | - Cylinder (Top) | 5112105000 | * | M10581 | |
| 2 | - Stop Screw | 0192124300 | * | M10582 | |
| 3 | - Plug | 0686310500 | * | M10583 | |
| 4(A) | - U-Seal | * | M10584 | ||
| 4(B) | - Slide Ring | * | M10585 | ||
| 5 | - Piston | 5112104900 | * | M10586 | |
| 5(A) | - Allen Bolt | * | M10586(A) | ||
| 6(A) | - U-Seal | * | M10587 | ||
| 6(B) | - Slide Ring | * | M10588 | ||
| 7 | - Cylinder (Middle) | 5112105400 | * | M10589 | |
| 8 | - Slide Ring | 5112105300 | * | M10590 | |
| 9 | - Bushing | 5112104800 | * | M10591 | |
| 10 | - Screw | 0216136300 | * | M10592 | |
| 11 | - Eye Bolt | 5112105200 | * | M10593 | |
| 12 | - Pin | 0108133400 | * | M10594 | |
| 13(A) | - Slide Ring | * | M10595(A) | ||
| 13(B) | - U Seal | * | M10595(B) | ||
| 14 | - Cylinder (Bottom) | 5112105500 | * | M10596 | |
| 15 | - Ring | 0335121000 | * | M10597 | |
| 16 | - Ring | 5112104700 | * | M10598 | |
| 17 | - Spring Washer | 0333213600 | * | M10599 | |
| 18 | - Screw | 5112106200 | * | M10600 | |
| 19 | - Bearing | 5112104600 | * | M10601 | |
| 20 | Grease Nipple/Lubricating Nipple | 0544216200 | * | M9040 | |
| 21 | Stud(Pin) | 5112105800 | * | M10603 | |
| 22 | DU bush. | 5114093600 | * | M10604 | |
| 23 | Slide Ring | 5112108100 | * | M10605 | |
| 24 | Split Pin | 0111151700 | * | M10606 | |
| 26 | Gasket | 0653116300 | * | M10607 | |
| 27 | Pressure Screw | 0627512600 | * | M10608 | |
| 28 | Banjo Nipple | 3175029500 | * | M10609 | |
| 29 | Clamp | 0347610900 | * | M10610 | |
| 30 | - Clamp | * | M10611 | ||
| 31 | - Spring Washer | * | M10612 | ||
| 32 | - Screw | * | M10613 |
