First Stage Valve Plate IR 3000 Compressor Parts
Regular price
₹0.00
DESCRIPTION
First Stage Valve Plate Assembly For Ingersoll Rand Type 30 - Model 3000
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - First Stage Valve Plate Assembly For Ingersoll Rand Type 30 - Model 3000 from India.
Product
- Page 1

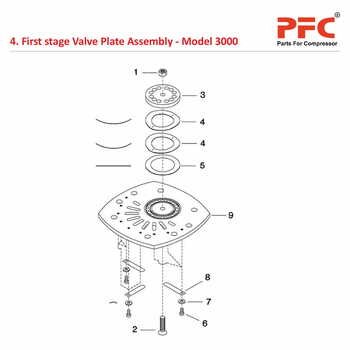

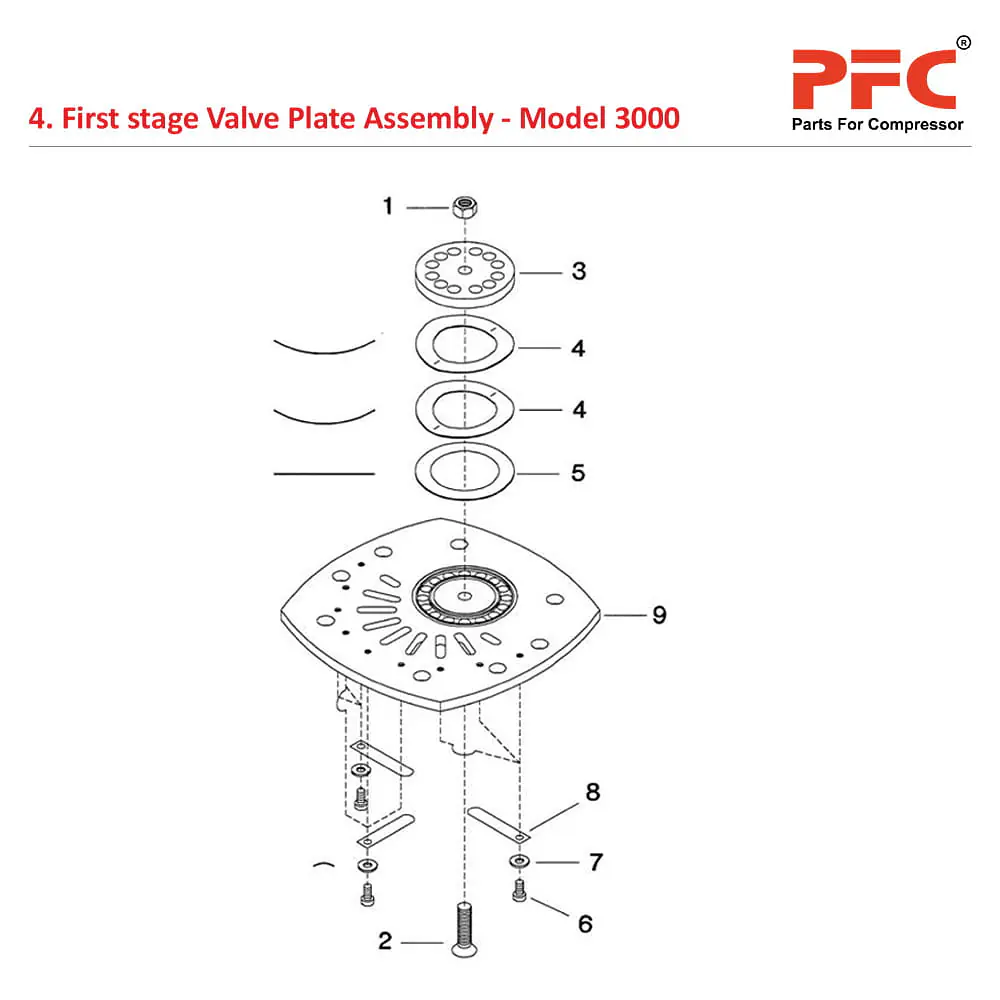

1. First Stage Valve Plate Assembly
Sr.No | Ref. Part Number | Description |
REF. | 32228330 | Assembly, First Stage Valve Plate |
4-1 | 97166946 | * Nut, Whiz-Lock -7/16-14 Hex |
4-2 | 32223927 | * Bolt, Valve |
4-3 | 32228314 | * Plate, Stop - Discharge |
4-4 | 30221501 | * Spring, Valve - Discharge |
4-5 | 30181499 | * Plate, Valve - Discharge |
4-6 | 32035511 | * Screw, Fillister Head - 1/4-20 X 3/8" |
4-7 | 32217382 | * Washer, Belleville - 1/4" |
4-8 | 30220115 | * Valve, Finger |
4-9 | 32228249 | * Plate, Valve Seat |
