First Stage Valve Plate IR 7100 Compressor Parts
Regular price
₹0.00
First Stage Valve Plate IR 7100 Compressor Parts
Regular price
₹0.00
DESCRIPTION
First Stage Valve Plate Assembly for Ingersoll Rand Type 30 - Model 7100
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - First Stage Valve Plate Assembly from India.

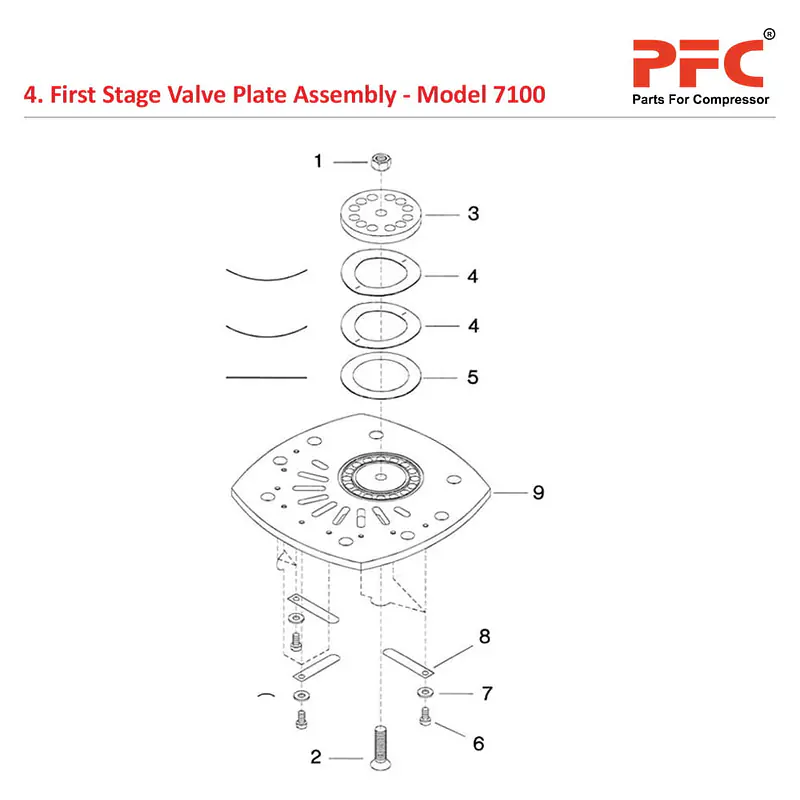

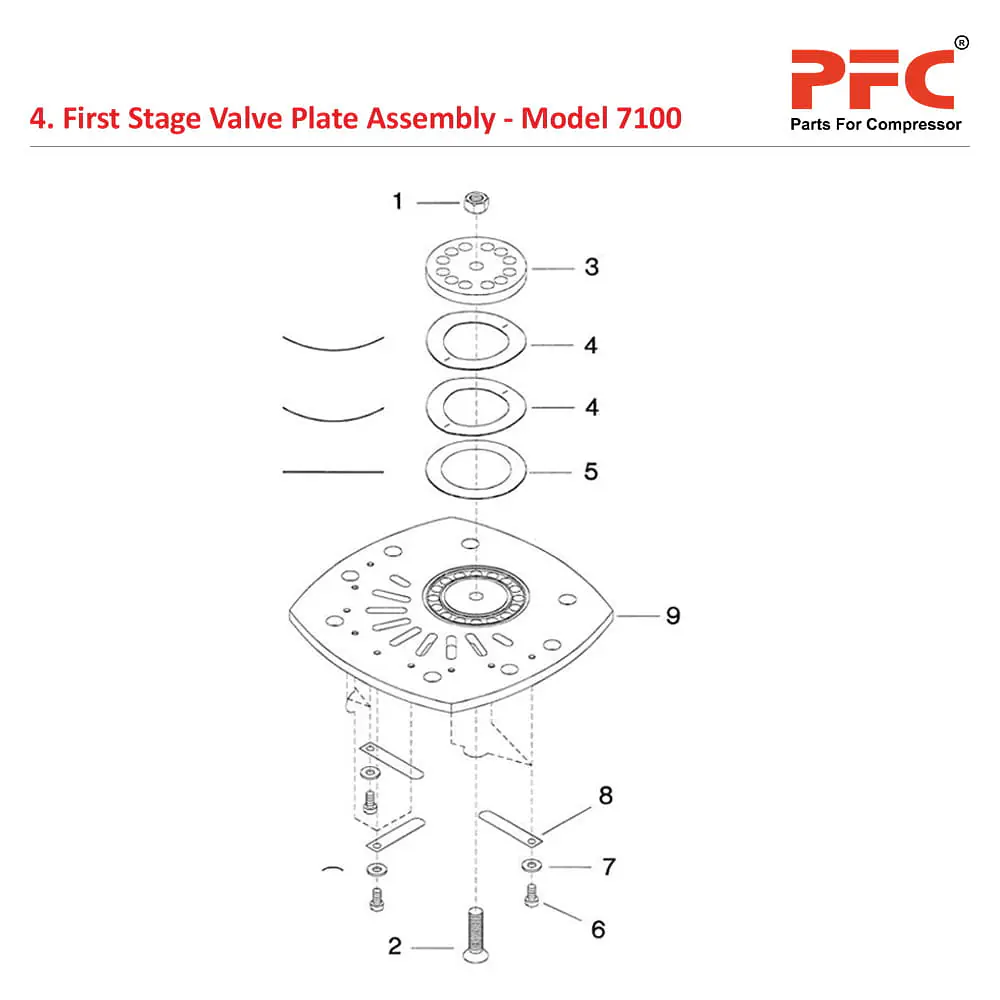

First Stage Valve Plate Assembly
| Sr.No | Ref. Part Number | Description | Qty |
| REF | 32228330 | Ass'y, First Stage Valve Plate (see-2-34) | 1 |
| 4-1 | 97166946 | – Nut, Whiz-Lock - 7/16 - 14 Hex | 1 |
| 4-2 | 32223927 | – Bolt Valve | 1 |
| 4-3 | 32228314 | – Plate, Stop - Discharge | 1 |
| 4-4 | 30221501 | – Spring, Valve - Discharge | 2 |
| 4-5 | 30181499 | – Plate, Valve - Discharge | 1 |
| 4-6 | 32035511 | – Screw, Fillister Head - 1/4-20 X 3/8" | 9 |
| 4-7 | 32217382 | – Washer, Belleville - 1/4" | 9 |
| 4-8 | 30220115 | – Valve, Finger | 9 |
| 4-9 | 32228249 | – Plate, Valve Seat | 1 |
