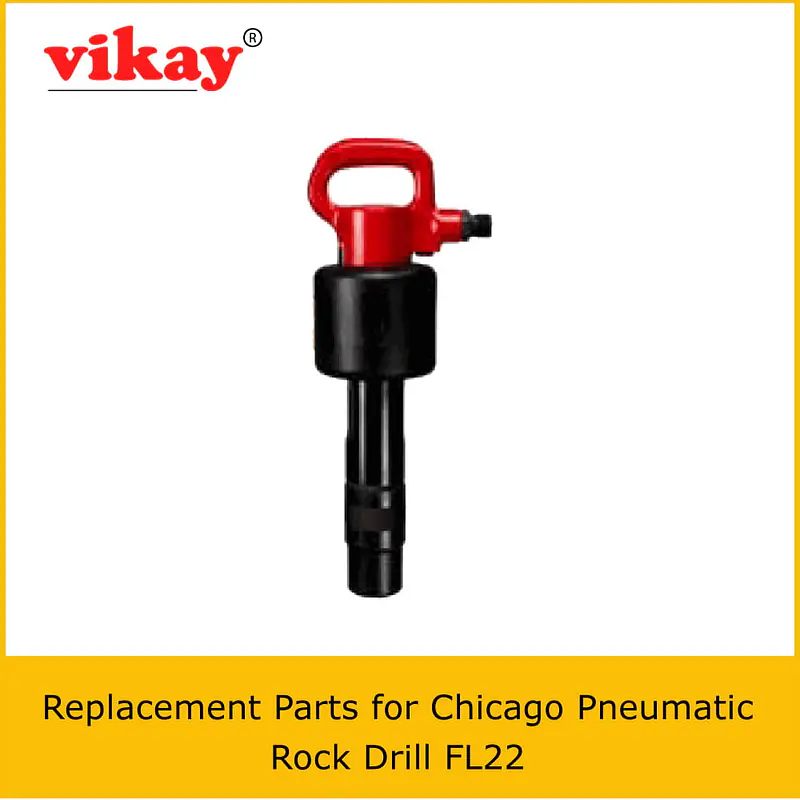

FL22 Rock Drill Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts - Chicago Pneumatic Rock Drill FL22 from India.
Product
- Page 1

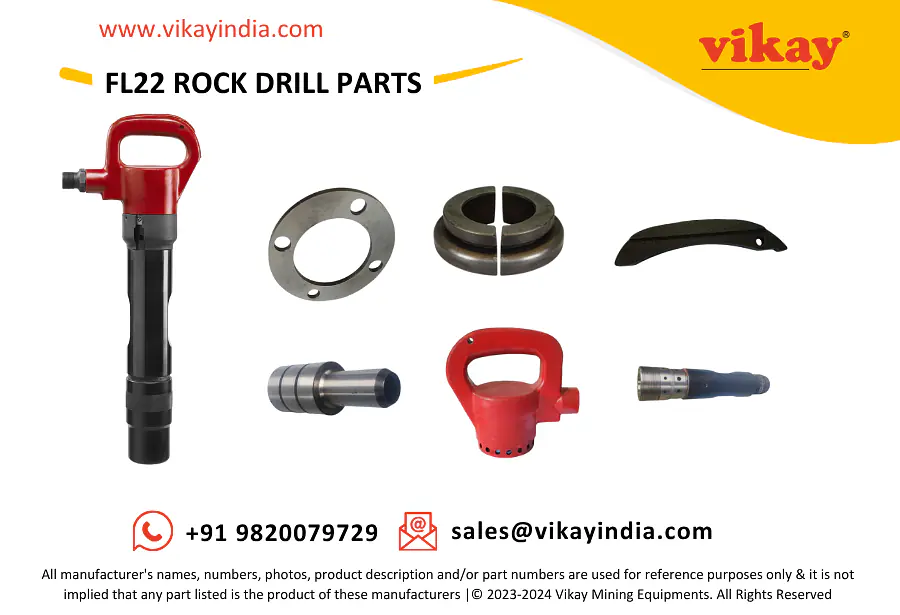

Rock Drill FL22 Parts
| Sr. No | Description | - | Ref. Part No. |
| 1(2-5,6,9) | Handle,complete | - | F027831 |
| 2 | Throttle lever | - | F011471 |
| 3 | Throttle lever pin | - | F011472 |
| 4 | Handle | - | - |
| 5 | Nipple with gauze | - | F035769 |
| 6(7-8) | Throttle valve, complete | - | F011476 |
| 7 | Throttle valve | - | - |
| 8 | O-ring | - | CA088867 |
| 9 | Throttle plug | - | C059643 |
| 10 | Upper valve case lid | - | F012657 |
| 11 | Valve case | - | F012658 |
| 12 | Valve | - | F012659 |
| 13 | Lower valve case lid | - | F012656 |
| 14 | Piston | - | F026357 |
| 15 | Dowel pin | - | F012670 |
| 16 | Handle lock pin | - | F001919 |
| 17 | Cylinder | - | - |
| 18 | Retainer locking ring | - | F035269 |
| 19 | Exhaust deflector | - | F012747 |
| 20(21-23) | Muffler, complete | - | F814201 |
| 21 | Hose clamp | - | P052726 |
| 22 | Muffler | - | - |
| 23 | Screw | - | R140630 |
| 24 | Tool bushing | - | F011469 |
| 25 | Buffer round | - | H2325427 |
| 26 | Retainer | - | C8806427 |
| 27 | Safety label | - | 3310160200 |
| 28 | Sound power label | - | - |
| 29 | Data plate | - | - |
| 30 | Eject warning label | - | 3310157200 |
