DESCRIPTION
Frame Assembly For Ingersoll Rand Type 30 - Model 253
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Frame Assembly For Ingersoll Rand Type 30 - Model 253 from India.

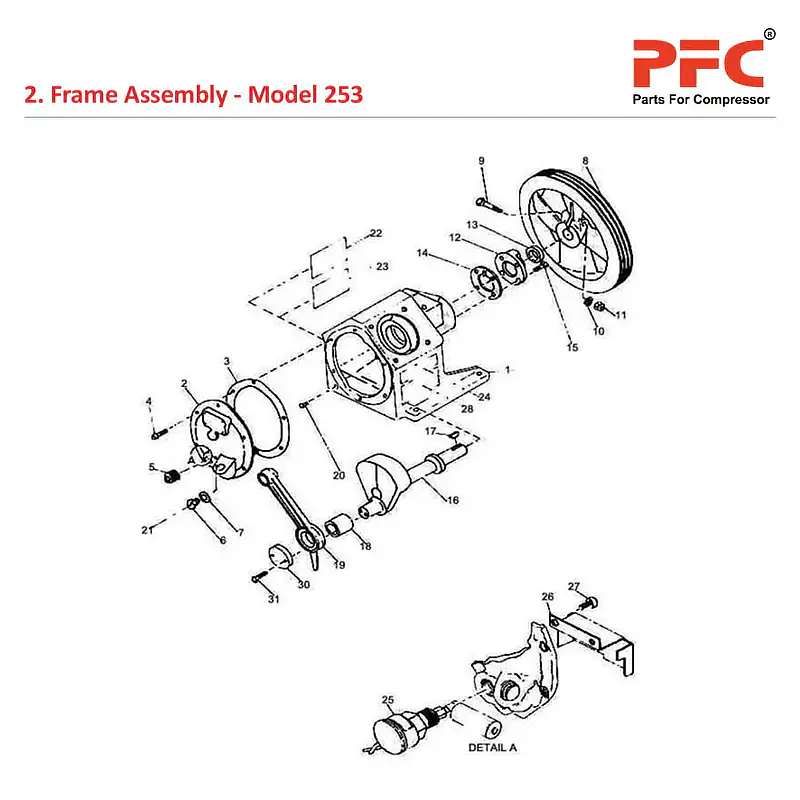

Frame Assembly
| Sr.No | Ref. Part Number | Description | Qty |
| 2-0 | Frame Assembly | ||
| 2-1 | 32003709 | Crankcase | 1 |
| 2-2 | 37127990 | Cover Assy Shaft End | 1 |
| 2-3 | 30439327 | Gasket Shaft End Cover | 1 |
| 2-4 | 32020224 | Capscrew Hex Head | 6 |
| 2-5 | 95043238 | Plug-Square Socket Head | 1 |
| 2-6 | 37127065 | Plug-Oil Filler | 1 |
| 2-7 | 95018149 | O Ring | 1 |
| 2-8 | 30212914 | wheel - Belt | 1 |
| 2-9 | 95053708 | Capscrew Hex Head | 1 |
| 2-10 | 95081824 | Washer - Lock | 1 |
| 2-11 | 95077798 | Nut - Hex Head | 1 |
| 2-12 | 32027765 | Cover Assy Shaft End 253 | 1 |
| 2-13 | 32204570 | Seal Oil | 1 |
| 2-14 | 30280531 | Gasket - Shaft End Cover | 1 |
| 2-15 | 32020224 | Capscrew Hex Head | 4 |
| 2-16 | 32027757 | Crankshaft - Assy 253 | 1 |
| 2-17 | 95433173 | – Key - Woodruff | 1 |
| 2-18 | 30210165 | Bushing - Crankpin | 1 |
| 2-19 | 32198160 | Rod - Connecting | 2 |
| 2-20 | 95344651 | Plug - Pipe Hex Head | 1 |
| 2-21 | 32000655 | Decal - Oil Plug | 1 |
| 2-22 | 35815802 | Decal - Danger | 1 |
| 2-23 | 37164308 | Decal - Caution | 1 |
| 2-24 | 32015620 | Decal - Maintenance | 1 |
| 2-30 | 30210280 | Disc Crank Pin | 1 |
| 2-31 | 30278667 | Screw Cap Hex Head - Drilled | 2 |
| Optional - Used With Low Oil Level Switch | |||
| 2-25 | 32001109 | Switch - Low Oil Level | 1 |
| 2-26 | 30285589 | Baffle - Low Oil Level Switch | 1 |
| 2-27 | 95311650 | Capscrew Hex Head | 2 |
| 2-28 | 95203063 | Decal - Low Oil Level Shutdown | 1 |
