DESCRIPTION
Frame & Gear For Ingersoll Rand - Model 9 1/2 x 7 LUB
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for Frame & Gear For Ingersoll Rand - Model 9 1/2 x 7 LUB from India.

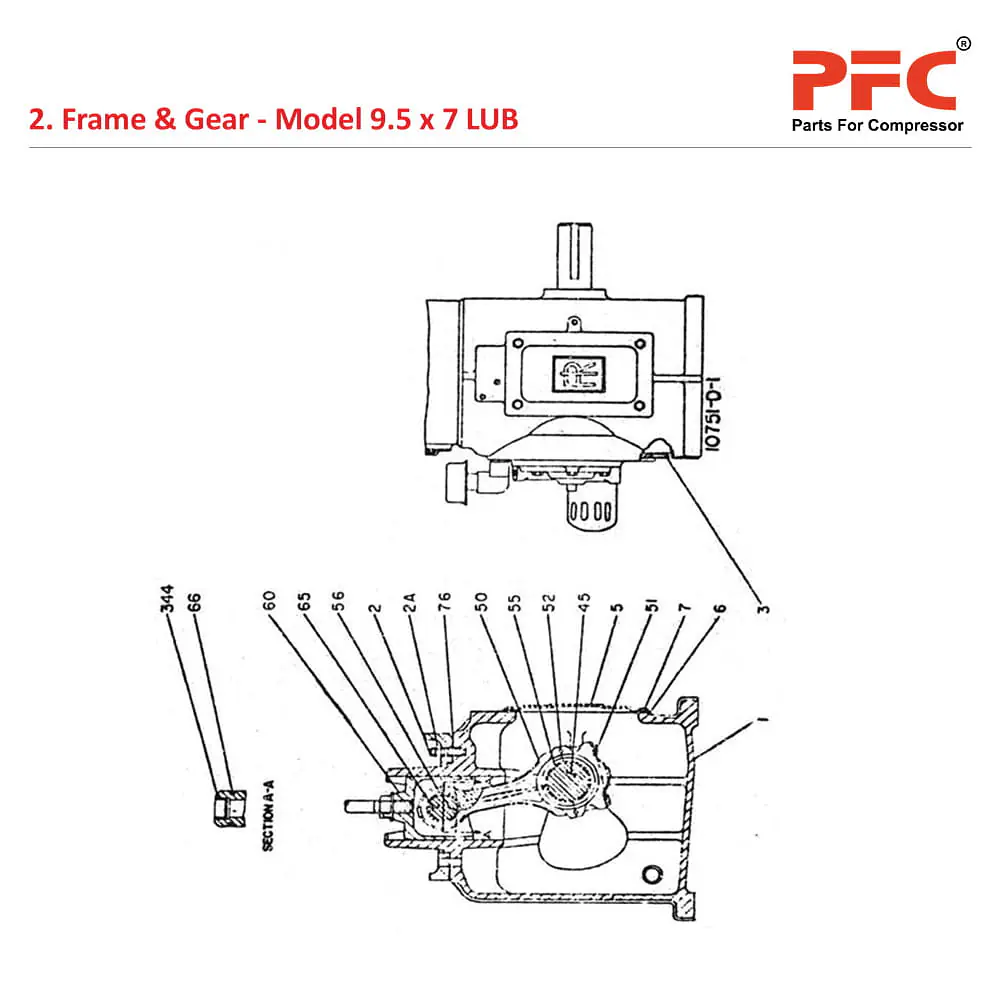

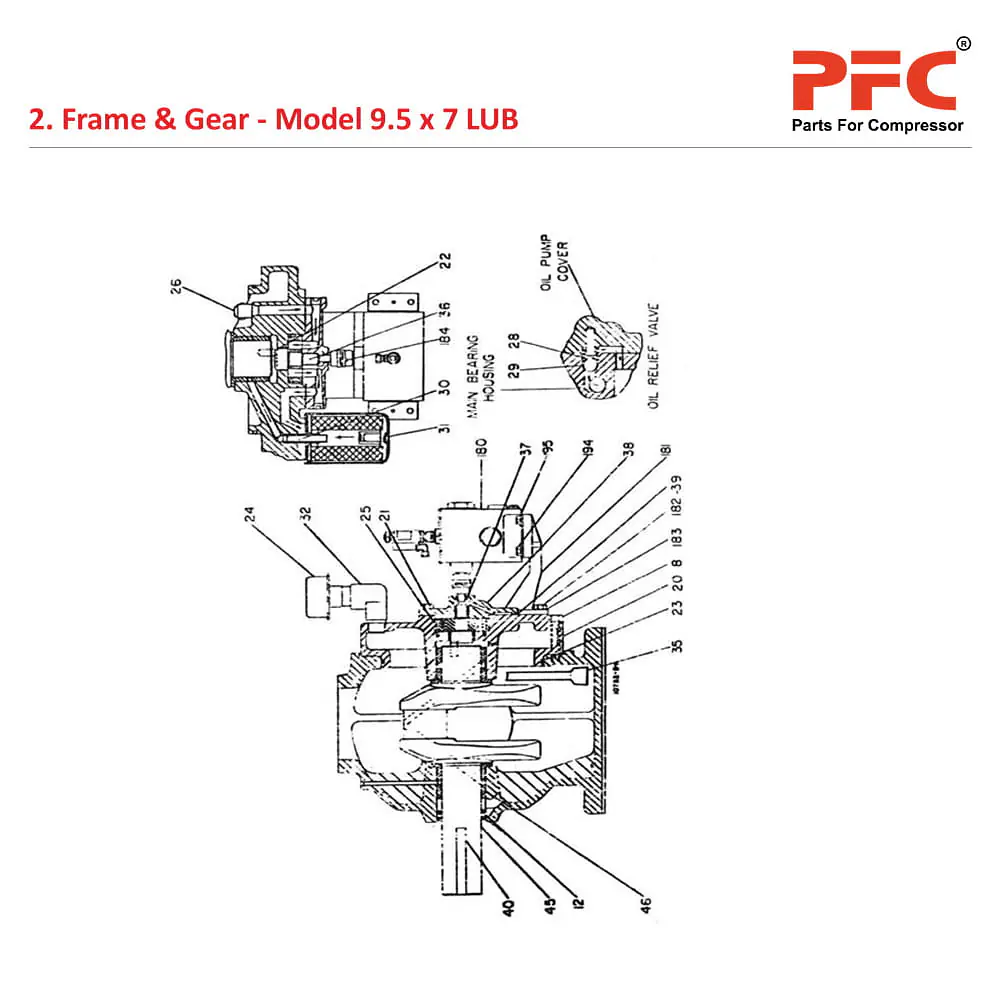

Frame & Gear
| Sr. No | Description | Ref. Part Nos | Qty |
| 35 | Pipe Assem-Oil Suct. | 3188E1-2 | 1 |
| – | Case-Suct Screen | NSS | 1 |
| – | Tubing-Oil Suct | NSS | 1 |
| – | Screen-Suction | NSS | 1 |
| – | Nut-Tube | NSS | 1 |
| 36 | Pump-Oil Assy | Y1052T1 | 1 |
| – | Pump-Type H | NSS | 1 |
| – | Shaft-Pump Drive | NSS | 1 |
| – | Ring-Pump Locating | NSS | 1 |
| 37 | Seal-Oil Pump Shaft | X1220T126 | 1 |
| – | Cover-Oil Pump Coml. | 8141D1T | – |
| 38 | Cover-Oil Pump | 8141D1N | 1 |
| – | Plug-Oil Priming | 31A7S4 | 1 |
| – | Plug-Pipe | 30A7S5 | 1 |
| – | Rollpin | 25A13C289 | 1 |
| 39 | Gasket-Cover | 5856C1-1 | 1 |
| 21 | Capscrew-Pump | 35A2C163 | 5 |
| – | Bushing Cover | WIN 1362 | 1 |
| 46 | Bushing Main Bearing | 5835C1 IM | 2 |
| – | Crankshaft Assem | 3161E1T | – |
| 45 | Crankshaft | 31610 | 1 |
| – | Dowel-Pump Drive | NSS | 1 |
| 40 | Key-Crankshaft | 11A9C436 | 1 |
| 12 | Seal-C-Shaft Oil | X1220T121 | 2 |
| – | Rod-Conn & Cap Complete | 37189628 | – |
| – | Rod-Conn & Cap Assl. | 14277D1T | – |
| 50 | Rod-Conn & Cap | 14277D1 | 1 |
| 51 | Bolt-Conn Rod | 36A2A440E | 2 |
