DESCRIPTION
Frame & Gear For Ingersoll Rand - Model 8 x 7 LUB
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for Frame & Gear For Ingersoll Rand - Model 8 x 7 LUB from India

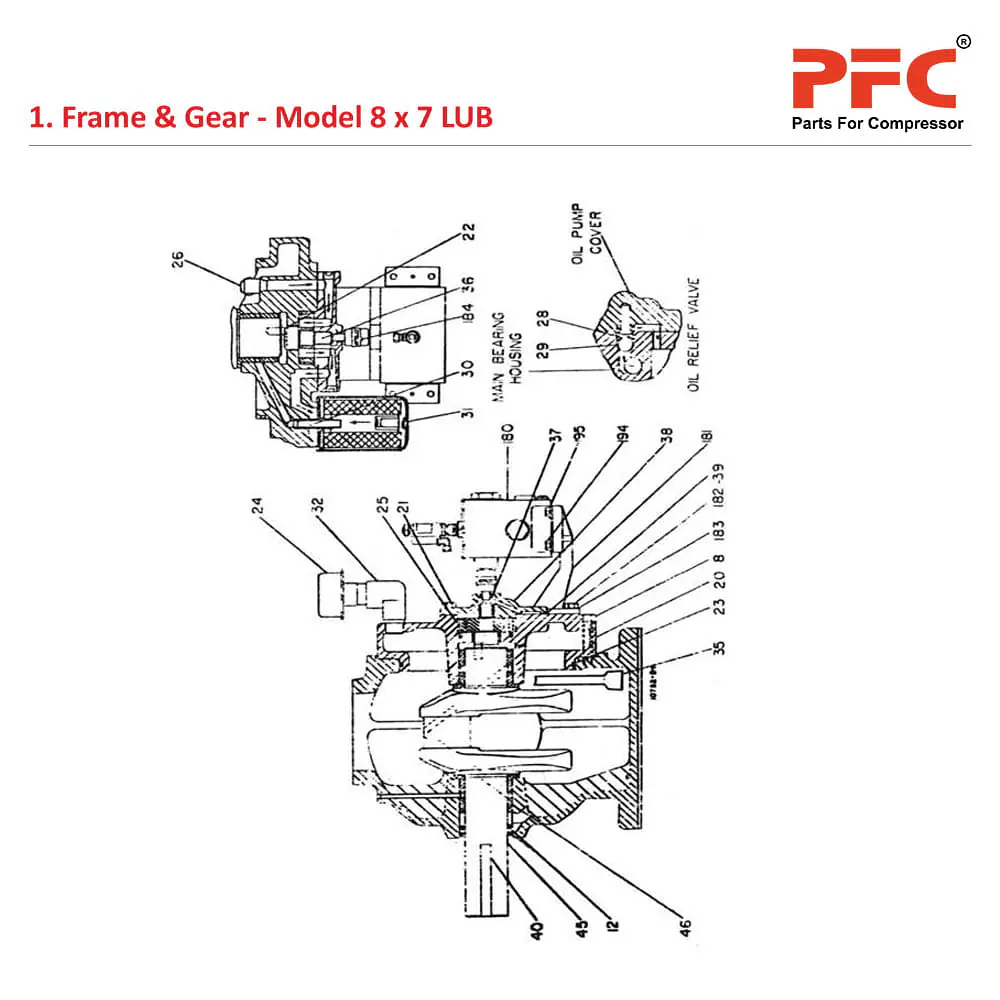

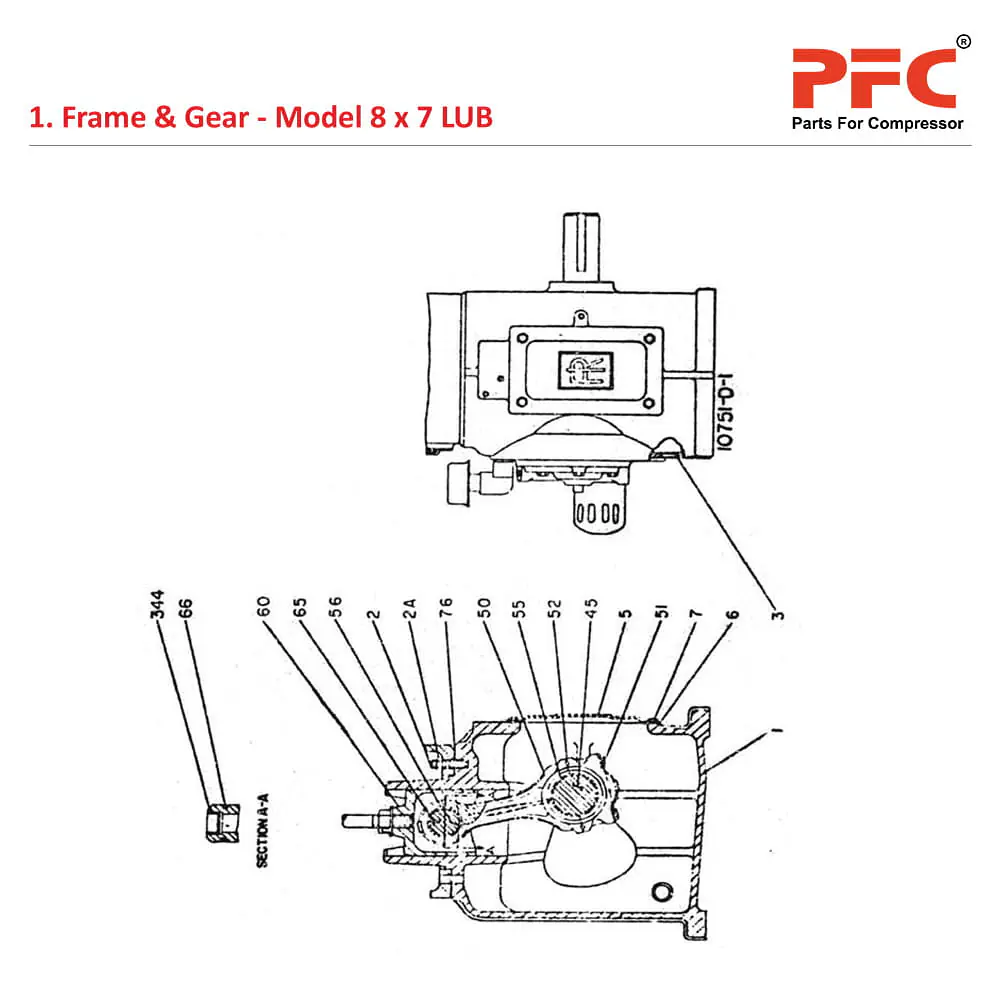

Frame & Gear
| Sr. No | Description | Ref. Part Nos | Qty |
| – | Frame & Gear | – | – |
| – | Frame Complete | 3674E1T | – |
| 1 | Frame | 3.67E+04 | 1 |
| 2 | Stud-Dist PC | 11A3C462 | 8 |
| 2A | Nut-Dist PC Stud | 16A4C8 | 8 |
| 76 | Gasket - Frame | 8367D1 | 1 |
| 3 | Gauge - Oil Level | 6453B1 | 1 |
| 5 | Cover - Frame | 6537C1 | 1 |
| 6 | Gasket - Cover | 5849C1-2 | 1 |
| 7 | Capscrew - Cover | 35A2C217 | 4 |
| – | Nipple - Drain | 18A7W44 | 1 |
| – | Coupling Drain | 11A7W4 | 1 |
| – | Plug - Drain | 30A7S5 | 1 |
| – | Housing MB Complete | 3171E1T | – |
| 20 | Housing MB with Bush | 3171E1N | 1 |
| 22 | Bushing - Oil Pump | 3800C1-2 | 1 |
| – | Plug- Pipe | 31A7S4 | 2 |
| 25 | Dowelpin - Oilpump | 17A13A141 | 1 |
| – | Plate-Rotation | 8A16X34B | 1 |
| – | Screw-Drive | 122A2S57 | 2 |
| 8 | Capscrew-MB Housing | 35A2D386 | 2 |
| 23 | "O" Ring -MB Housing | 20A11CM457 | 1 |
| 26 | Elbow- Male | 75A10B20 | 1 |
| 32 | Elbow- Breather | 6768C1 | 1 |
| 28 | Spring-Relief Valve | 4859B1 | 1 |
| 29 | Ball-Relief Valve | 6457B1 | 1 |
| 31 | Filter-Oil | 6458B1 | 1 |
| 30 | Adapter-Oil Filter | 4765B1 | 1 |
| 24 | Cap-Breather | 6459B1 | 1 |
| 35 | Pipe Assem-Oil Suct | 3188E1-2 | 1 |
| – | Case-Suct Screen | NSS | 1 |
| – | Tubing-Oil Suct | NSS | 1 |
| – | Screen-Suction | NSS | 1 |
| – | Nut-Tube | NSS | 1 |
| 36 | Pump-Oil Assy | Y1052T1 | 1 |
| – | Pump-Type H | NSS | 1 |
| – | Shaft-Pump Drive | NSS | 1 |
| – | Ring-Pump Locating | NSS | 1 |
| 37 | Seal-Oil Pump Shaft | X1220T126 | 1 |
| – | Cover-Oil Pump Complete | 8141D1T | – |
| 38 | Cover-Oil Pump | 8141D1N | 1 |
| – | Plug-Oil Priming | 31A7S4 | 1 |
| – | Plug-Pipe | 30A7S5 | 1 |
| – | Rollpin | 25A13C289 | 1 |
| 39 | Gasket-Cover | 5856C1-1 | 1 |
| 21 | Capscrew-Pump | 35A2C163 | 5 |
| – | Bushing Cover | WIN 1362 | 1 |
| 46 | Bushing - Main Bearing | 5835C1 IM | 2 |
| – | Crankshaft Assem | 3161E1T | – |
| 45 | Crankshaft | 3.16E+04 | 1 |
| – | Dowel-Pump Drive | NSS | 1 |
| 40 | Key-Crankshaft | 11A9C436 | 1 |
| 12 | Seal-C-Shaft Oil | X1220T121 | 2 |
| – | Rod-Conn & Cap Complete | 37189628 | – |
| – | Rod-Conn & Cap Assly. | 14277D1T | – |
| 50 | Rod-Conn & Cap | 14277D1 | 1 |
| 51 | Bolt-Conn Rod | 36A2A440E | 2 |
| – | Inches of Wire | X1636T120 | 16 |
| – | Bushing-Alignment | 1W132626 | 2 |
| 55 | Bushing-Crankpin | 5833C1 IM | 1 |
| 56 | Bushing-Xhead Pin | 5832C1 | 1 |
| – | Crosshead Complete | 3165E1P1T | – |
| 60 | Crosshead | 3165E1P1 | 1 |
| 65 | Pin X Head Complete | 8498C1T | 1 |
| – | Pin-X Head | 8498C1 | 1 |
| 344 | Plug Pin | 5040B1 | 1 |
| – | Plug Pipe | 31A7S3 | 1 |
| 66 | Ring-Retaining | Y1040T3 IM | 2 |
