DESCRIPTION
Frame & Gear For Ingersoll Rand - Model 8 x 7 LUB
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for Frame & Gear For Ingersoll Rand - Model 8 x 7 LUBÂ from India
Â
⇩ Product
- Page 1

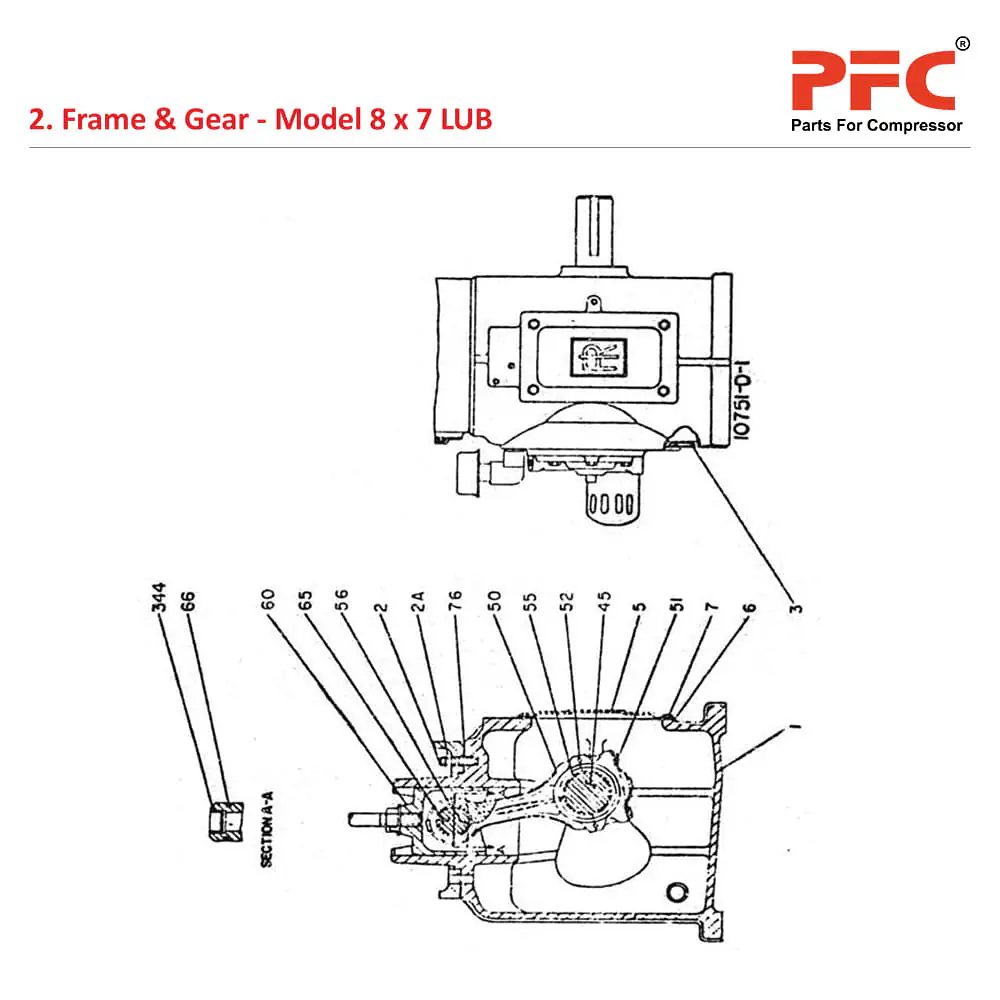

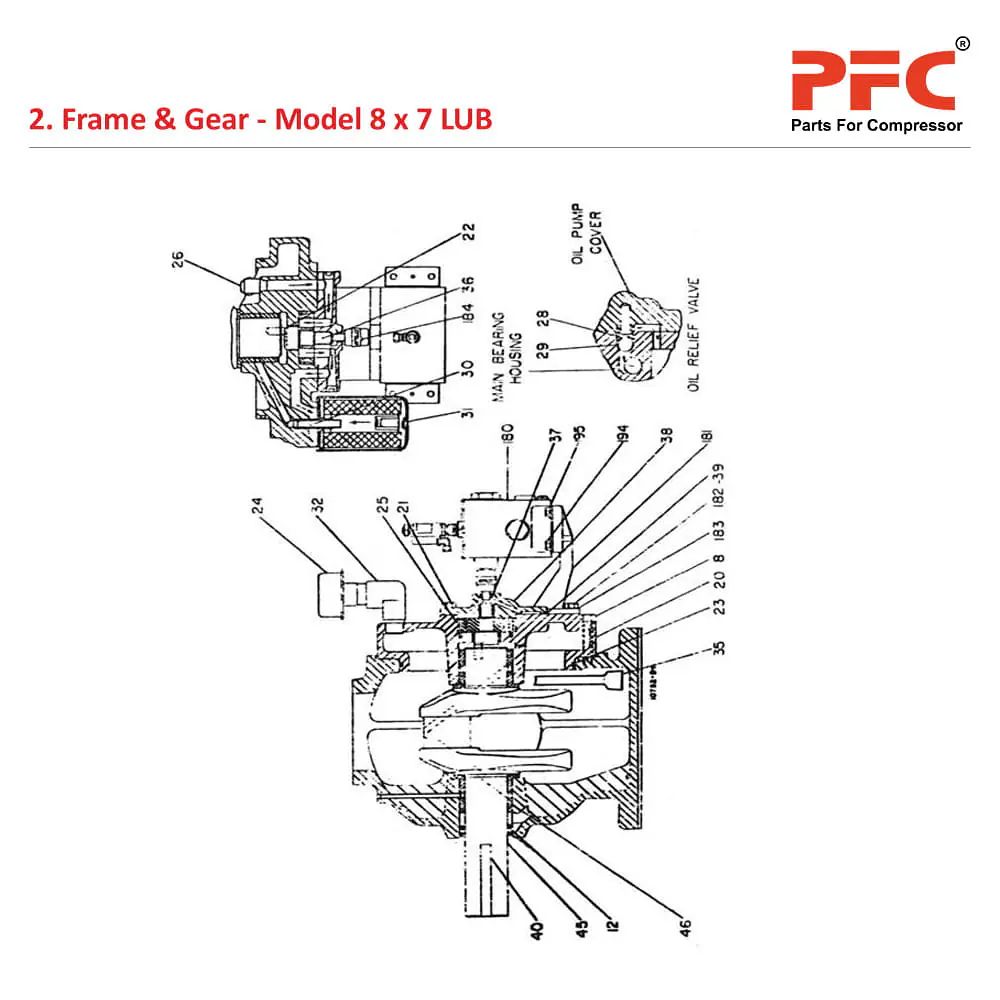

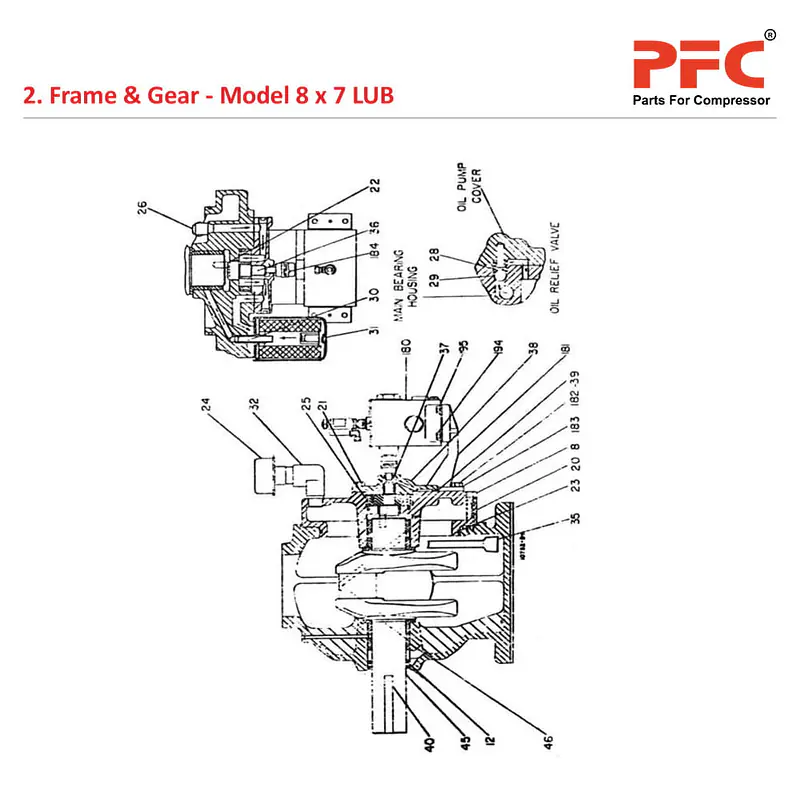

Frame & Gear
| Sr. No | Description | Ref. Part Nos |
| 1 | Pipe Assem-Oil Suct | 3188E1-2 |
| 2 | Case-Suct Screen | NSS |
| 3 | Tubing-Oil Suct | NSS |
| 4 | Screen-Suction | NSS |
| 5 | Nut-Tube | NSS |
| 6 | Pump-Oil Assy | Y1052T1 |
| 7 | Pump-Type H | NSS |
| 8 | Shaft-Pump Drive | NSS |
| 9 | Ring-Pump Locating | NSS |
| 10 | Seal-Oil Pump Shaft | X1220T126 |
| 11 | Cover-Oil Pump Complete | 8141D1T |
| 12 | Cover-Oil Pump | 8141D1N |
| 13 | Plug-Oil Priming | 31A7S4 |
| 14 | Plug-Pipe | 30A7S5 |
| 15 | Rollpin | 25A13C289 |
| 16 | Gasket-Cover | 5856C1-1 |
| 17 | Capscrew-Pump | 35A2C163 |
| 18 | Bushing Cover | WIN 1362 |
| 19 | Bushing - Main Bearing | 5835C1 IM |
| 20 | Crankshaft Assem | 3161E1T |
| 21 | Crankshaft | 3161E1 |
| 22 | Dowel-Pump Drive | NSS |
| 23 | Key-Crankshaft | 11A9C436 |
| 24 | Seal-C-Shaft Oil | X1220T121 |
| 25 | Rod-Conn & Cap Complete | 37189628 |
| 26 | Rod-Conn & Cap Assly. | 14277D1T |
| 27 | Rod-Conn & Cap | 14277D1 |
| 28 | Bolt-Conn Rod | 36A2A440E |
