Frame & Gear IR 8 X 7 ESV LUB Air Compressor Parts
Regular price
₹0.00
Frame & Gear IR 8 X 7 ESV LUB Air Compressor Parts
Regular price
₹0.00
DESCRIPTION

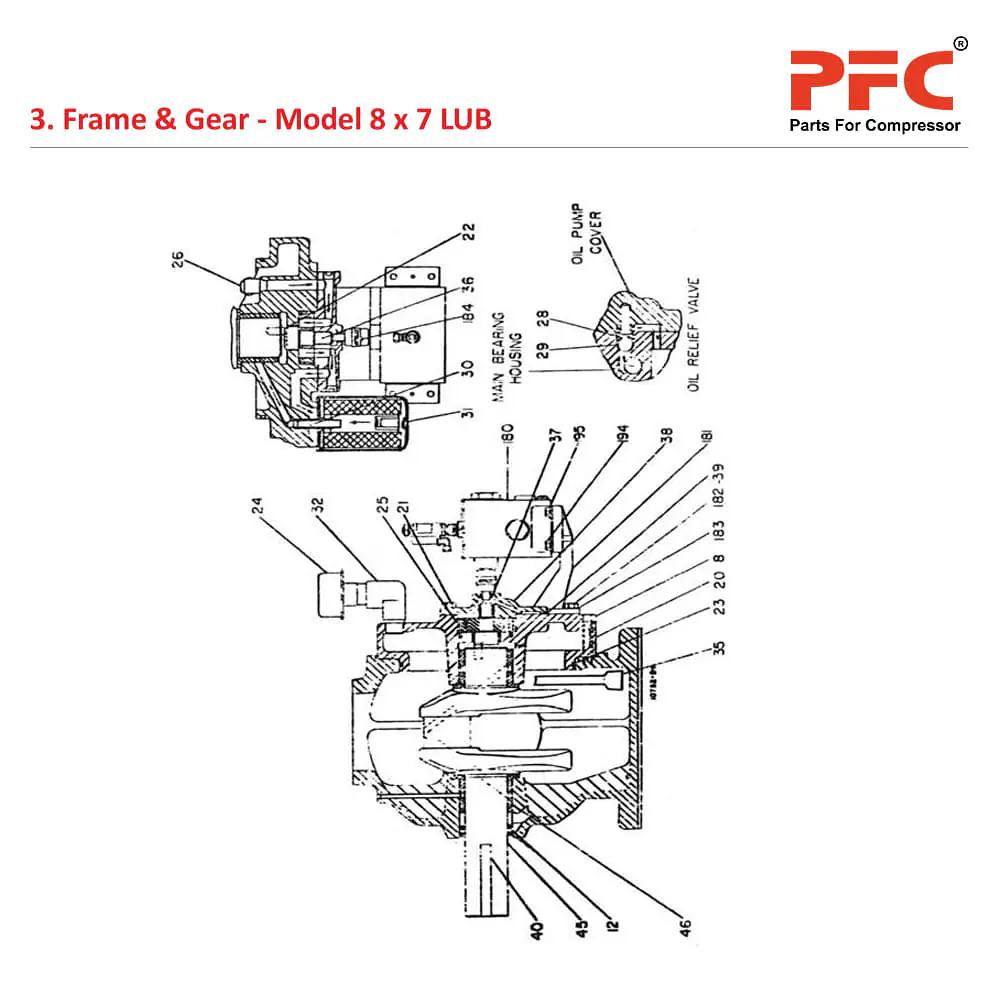

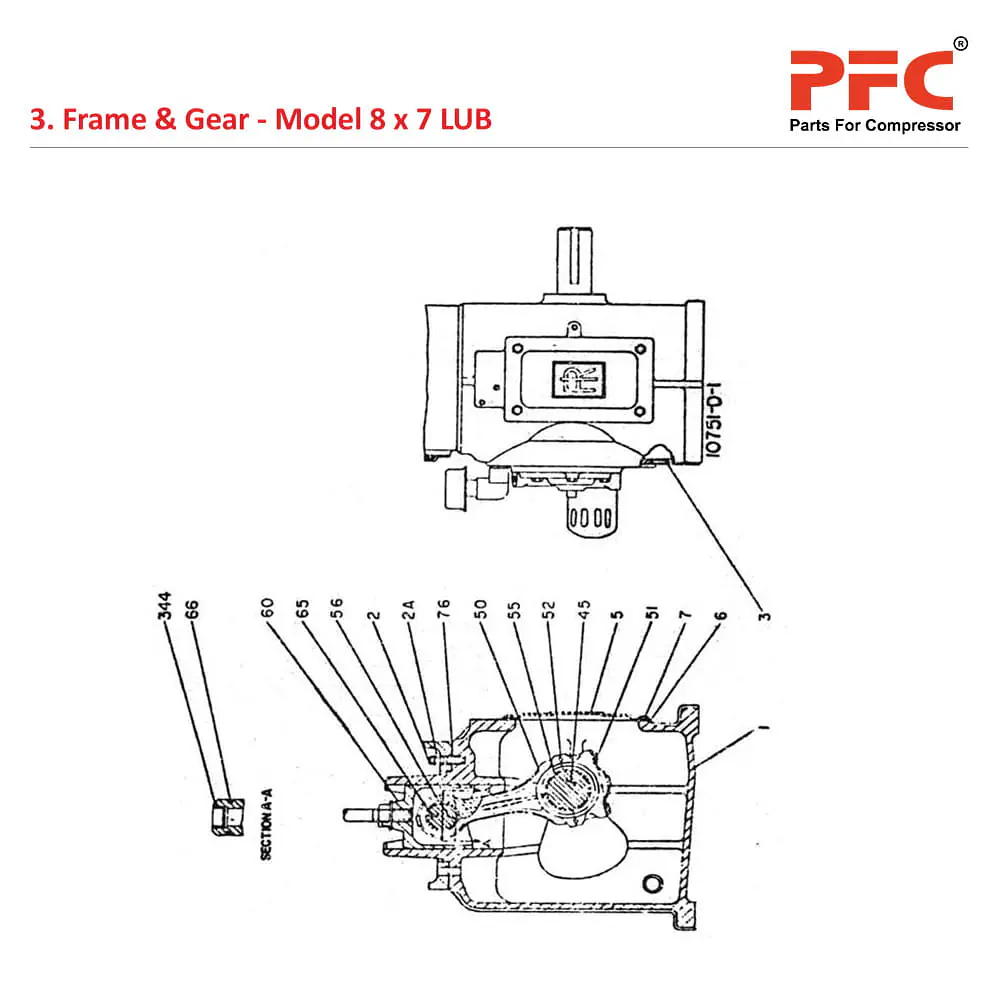

Frame & Gear For Ingersoll Rand - Model 8 x 7 LUB
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for Frame & Gear For Ingersoll Rand - Model 8 x 7 LUB from India.
Frame & Gear
| Sr. No | Description | Ref. Part Nos | Qty |
| – | Pack-Case & Ring | 1-7999C1P1T | – |
| – | Metallic Type | – | – |
| 130 | Packing-Case | 1-7999C1P1 | 1 |
| – | Metallic Type | – | – |
| 132 | Gasket-Packing Case | X1561T8 | 1 |
| 131 | Ring & Spring | 03G24S | 1 |
| – | Packing Set | – | – |
| – | 3PR Rings per Set | – | – |
| 134 | Ring Scraper | 28A11G24D | 2 |
| 134 | Ring Scraper | 27A11G24D | 1 |
| 133 | Capscrew-Packing | 35A2C337 | 2 |
| – | Cylinder Complete | 3208E1T | – |
| 140 | – Cylinder | 3.21E+04 | 1 |
| 152 | – Gasket-Cylinder | 8369D1P3 | 2 |
| – | Port Plate Frame End Complete | 2-3206E1P1T | – |
| 250 | Port Plate - Frame End | 2-3206E1P1 | 1 |
| 251 | Stud - Frame End | 11A3J273 | 2 |
| 251B | Gasket | X1013T611 | 2 |
| 251A | Cap Nut | 61A4C5 | 2 |
| – | Rollpin - Locating | 25A13C332 | 2 |
| – | Port Plate Outer End | 3-3206E1P1T | – |
| 255 | Port Plate Outer End | 3-3206E1P1 | 1 |
| 256 | Stud Outer End | 11A3G264 | 2 |
| – | Gasket | X1013T611 | 2 |
| 256B | Capnut | 61A4C5 | 2 |
| 256A | Rollpin - Locating | 25A13C332 | 2 |
| – | Head Frame & Dist PC | 5328E1T | – |
| 260 | Head Frame & Dist PC | 5.33E+04 | 1 |
| 120 | Head Frame | EIN-7135 | 1 |
| 120A | Distance Piece | EIN-7868 | 1 |
| 72 | Gasket - Frame Head | WIN-7272 | 1 |
| 122 | Stud - Frame Head | 90A3C06026 | 8 |
| 122A | Nut for Stud | 16A4C8 | 8 |
| 121 | Gasket-Port Plate | 8165D1P2 | 1 |
| – | Pipe Plug - Drain | 30A7S3 | 1 |
| 261 | Cover | 9391D1 | 1 |
| 262 | Gasket - Cover | 8274D1 | 1 |
| 263 | Capscrew - Cover | 35A2C217 | 4 |
| 265 | Capscrew - Stuf. Box | 119A2A227 | 4 |
| 268 | Cover - Stuf. Box | A-8301D1 | 1 |
| 269 | Ring "O" Stuf. Box | 20A11CM264 | 1 |
| 270 | Gasket - Stuf Box Cover | 5914-C1 | 1 |
| 144 | Cover - Valve | 8598B1 | 4 |
| 145 | Gasket - Cover | 8599B1 | 4 |
| 143 | Capscrew - Cover | 35A2J217 | 24 |
| 150 | Capscrew - Frame Head | 2-838681 | 8 |
| – | Head Outer Complete | 12845D1T | – |
| 160 | Head Outer | 12845D1 | 1 |
| 161 | Gasket | 8165D1P4 | 1 |
| 144 | Cover Inlet Valve | 8563B1 | 1 |
| 145 | Gasket Cover | 8565B1 | 1 |
| 143 | Capscrew - Cover | 35A2J109 | 5 |
| 144A | Cover - Disch Valve | 8564B1 | 1 |
| 145A | Gasket - Cover | 8566B1 | 1 |
| 143A | Capscrew Disch Valve | 35A2J217 | 7 |
| 142 | Capscrew Outerhead | 6-8386B1 | 8 |
