DESCRIPTION
Frame & Gear For Ingersoll Rand - Model 9 1/2 x 7 LUB
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for Frame & Gear For Ingersoll Rand - Model 9 1/2 x 7 LUB from India

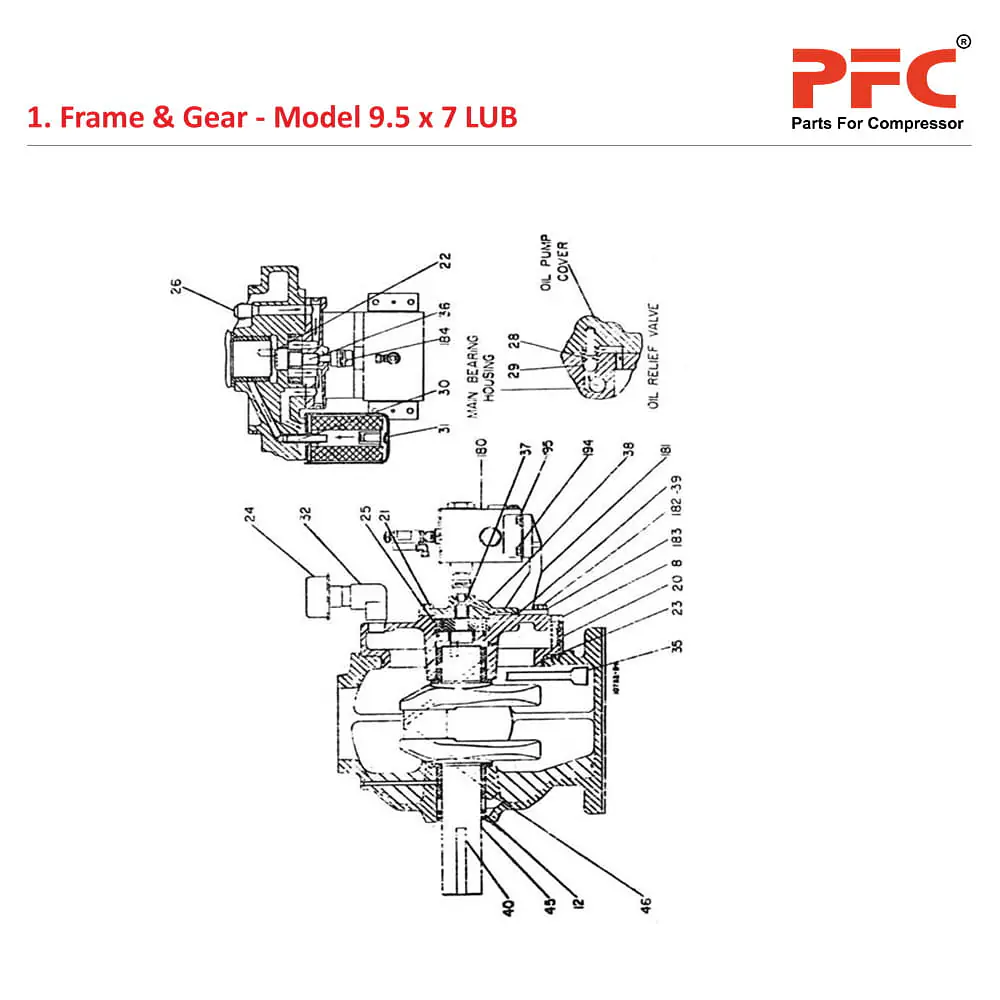

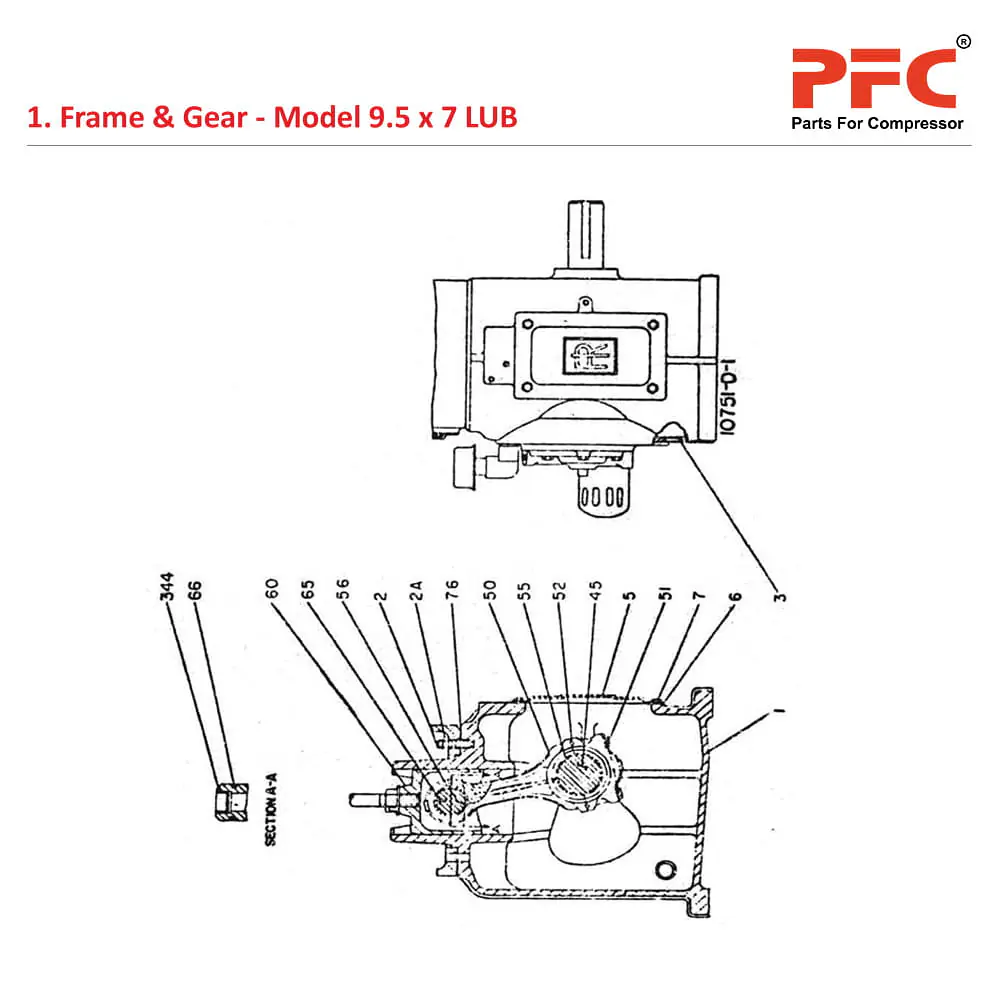

Frame & Gear
| Sr. No | Description | Ref. Part Nos | Qty |
| – | Frame & Gear | – | – |
| – | Frame Complete | 3674E1T | – |
| 1 | Frame | 3.67E+04 | 1 |
| 2 | Stud-Dist PC | 11A3C462 | 8 |
| 2A | Nut-Distpcstud | 16A4C8 | 8 |
| 76 | Gasket-Frame | 8367D1 | 1 |
| 3 | Gasket-Oil Level | 6453B1 | 1 |
| 5 | Cover-Frame | 6537C1 | 1 |
| 6 | Gasket-Cover | 5849C1-2 | 1 |
| 7 | Capscrew-Cover | 35A2C217 | 4 |
| – | Nipple-Drain | 18A7W44 | 1 |
| – | Coupling Drain | 11A7W4 | 1 |
| – | Plug-Drain | 30A7S5 | 1 |
| – | Housing MB Complete | 3171E1T | – |
| 20 | Housing MB with Bush | 3171E1N | 1 |
| 22 | Bushing Oil Pump | 3800C1-2 | 1 |
| – | Plug-Pipe | 31A7S4 | 2 |
| 25 | Dowelpin-Oil pump | 17A13A141 | 1 |
| – | Plate-Rotation | 8A16X34B | 1 |
| – | Screw-Drive | 122A2S57 | 2 |
| 8 | Capscrew- MB Hsg. | 35A2D386 | 2 |
| 23 | "O" Ring MB Hsg. | 20A11CM457 | 1 |
| 26 | Elbow Male | 75A10B20 | 1 |
| 32 | Elbow Breather | 6768C1 | 1 |
| 28 | Spring - Relief Valve | 4859B1 | 1 |
| 29 | Ball - Relief Valve | 6457B1 | 1 |
| 31 | Filter - Oil | 6458B1 | 1 |
| 30 | Adapter Oil Filter | 4765B1 | 1 |
| 24 | Cap - Breather | 6459B1 | 1 |
