Gear Box Complete Atlas Copco Cavo 310 Parts
Regular price
₹0.00
Gear Box Complete Atlas Copco Cavo 310 Parts
Regular price
₹0.00
DESCRIPTION
Bucket Operation Gear Parts
Vikay is a global supplier of new aftermarket replacement parts - Bucket Operation Gear for Atlas Copco Mucking Loader Cavo-310 from India.

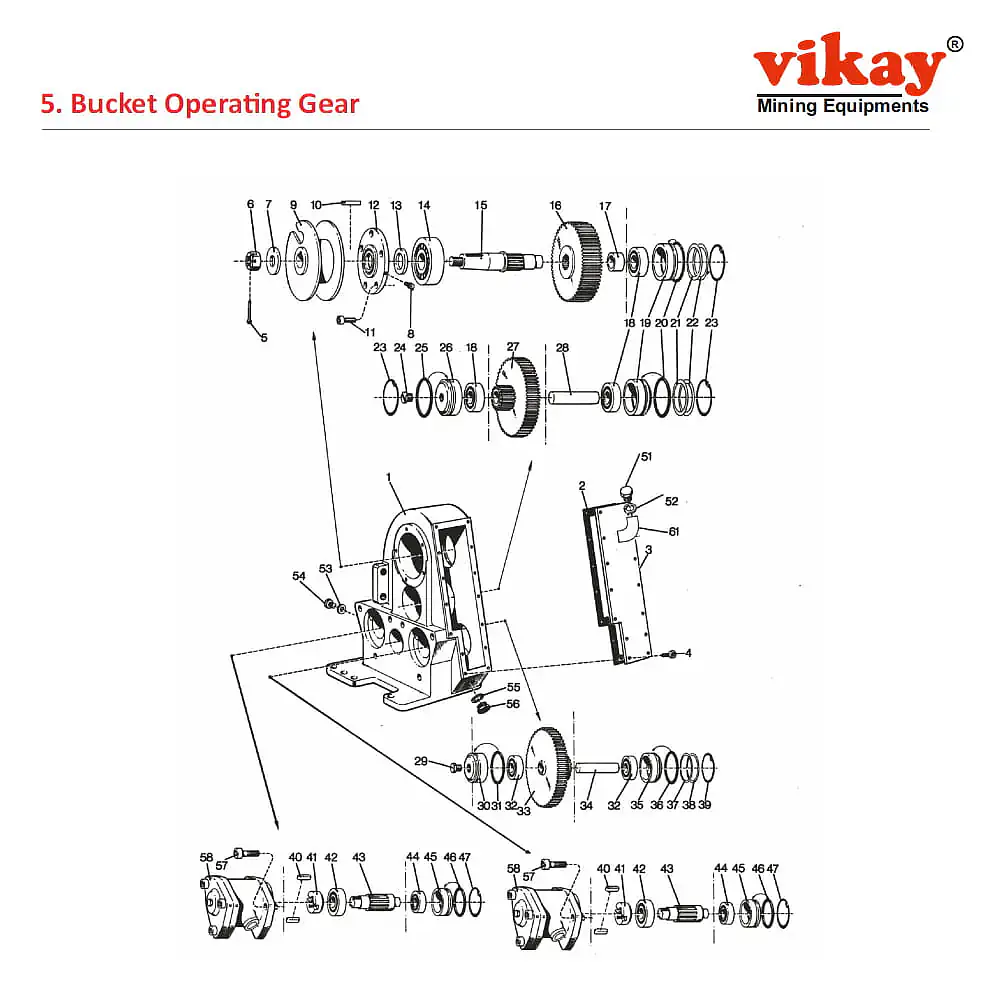

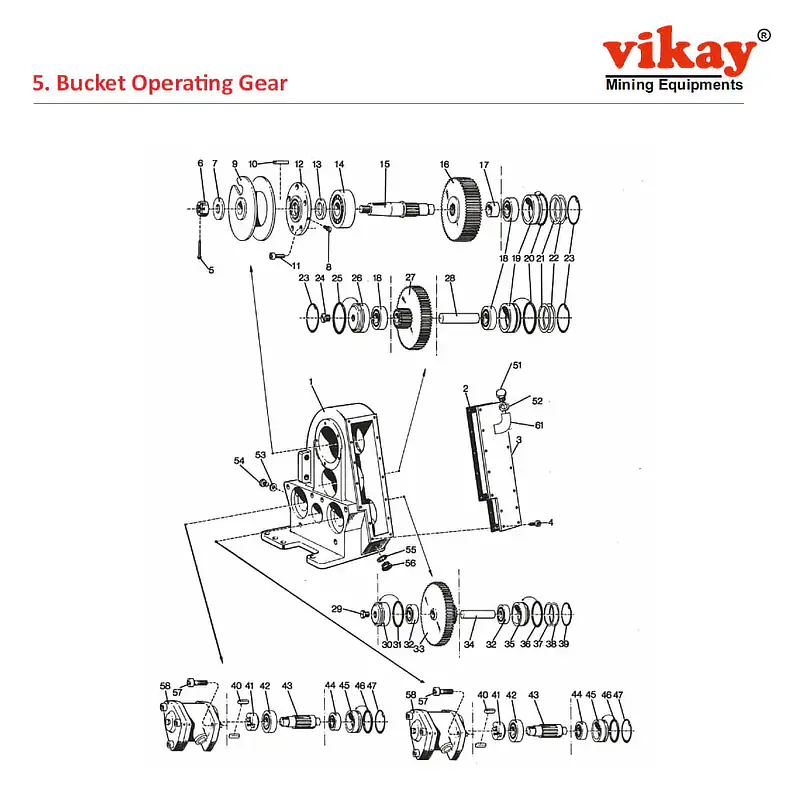

Bucket Operation Gear Parts
| No. | Description | Modified | Ref. Part No. | |
| – | Gear Box Complete | 5112055281 | ||
| 1 | – Gear Box body | - | ||
| 2 | – RTV Silicon Gasket Maker | - | ||
| 3 | – Cover | 5112010200 | ||
| 4 | – Screw | 5112011200 | ||
| 5 | – Split Pin | 111145500 | ||
| 6 | – Castle Nut | 0281137200 | * | M10053 |
| 7 | – Washer | 5112016700 | * | M10052 |
| 8 | – Grease Nipple | - | ||
| 9 | – Chain Drum | - | ||
| 10 | – Key | 337835000 | ||
| 11 | – Screw | 5096998100 | ||
| 12 | – Cover | 5112010500 | ||
| 13 | – Seal Ring | 666458900 | ||
| 14 | – Bearing | 508243500 | ||
| 15 | – Shaft | 5112010400 | ||
| 16 | – Gear | 5096150300 | ||
| 17 | – Spacer | 5096723200 | ||
| 18 | – Bearing | 508230900 | ||
| 19 | – Cap | 5103043500 | ||
| 20 | – O Ring | 663614900 | ||
| 21 | – Shim 1.0 MM | 5096350600 | ||
| 22 | – Shim 0.2 MM | 5096350700 | ||
| 23 | – Circlip | 335217800 | ||
| 24 | – Plug | 686810600 | ||
| 25 | – O Ring | 663614900 | ||
| 26 | – Retaining Cap | 5103043600 | ||
| 27 | – Gear | 5103056100 | ||
| 28 | – Shaft | 5096148900 | ||
| 29 | – Plug | 686370600 | ||
| 30 | – Retaining Cap | 5103043700 | ||
| 31 | – O Ring | 663614300 | ||
| 32 | – Bearing | 508141200 | ||
| 33 | – Gear | 5096150400 | ||
| 34 | – Shaft | 5104017100 | ||
| 35 | – Cap | 5103043800 | ||
| 36 | – O Ring | 663614300 | ||
| 37 | – Shim 0.1 MM | 5096350400 | ||
| 38 | – Shim 0.2 MM | 5096350500 | ||
| 39 | – Circlip | 335217000 | ||
| 40 | – Key | 5096102000 | ||
| 41 | – Coupling Half (Female) | 5096146900 | ||
| 42 | – Bearing | 502410600 | ||
| 43 | – Shaft With pinion | 5069149100 | ||
| 44 | – Bearing | 508230500 | ||
| 45 | – Cap | 5103043900 | ||
| 46 | – O Ring | 663614100 | ||
| 47 | – Circlip | 335216500 | ||
| 48 | – Screw | 0211548700 | ||
| 51 | – Plug | 686370800 | ||
| 52 | – Gasket | 657583400 | ||
| 53 | – Gasket | 0657576400 | ||
| 54 | – Plug | 0686370200 | ||
| 55 | – Gasket | 657582300 | ||
| 56 | – Plug | 686370600 | ||
| 57 | – Screw | 0211549100 | * | M10255 |
| 58 | – Bucket Operating Motor | 5021016080 | ||
| 61 | – Elbow | - |
