DESCRIPTION
Guide Rail Replacement Parts
Vikay is a global supplier of new aftermarket replacement parts - Guide Rail for Alimak Pneumatic Raise Climber from India

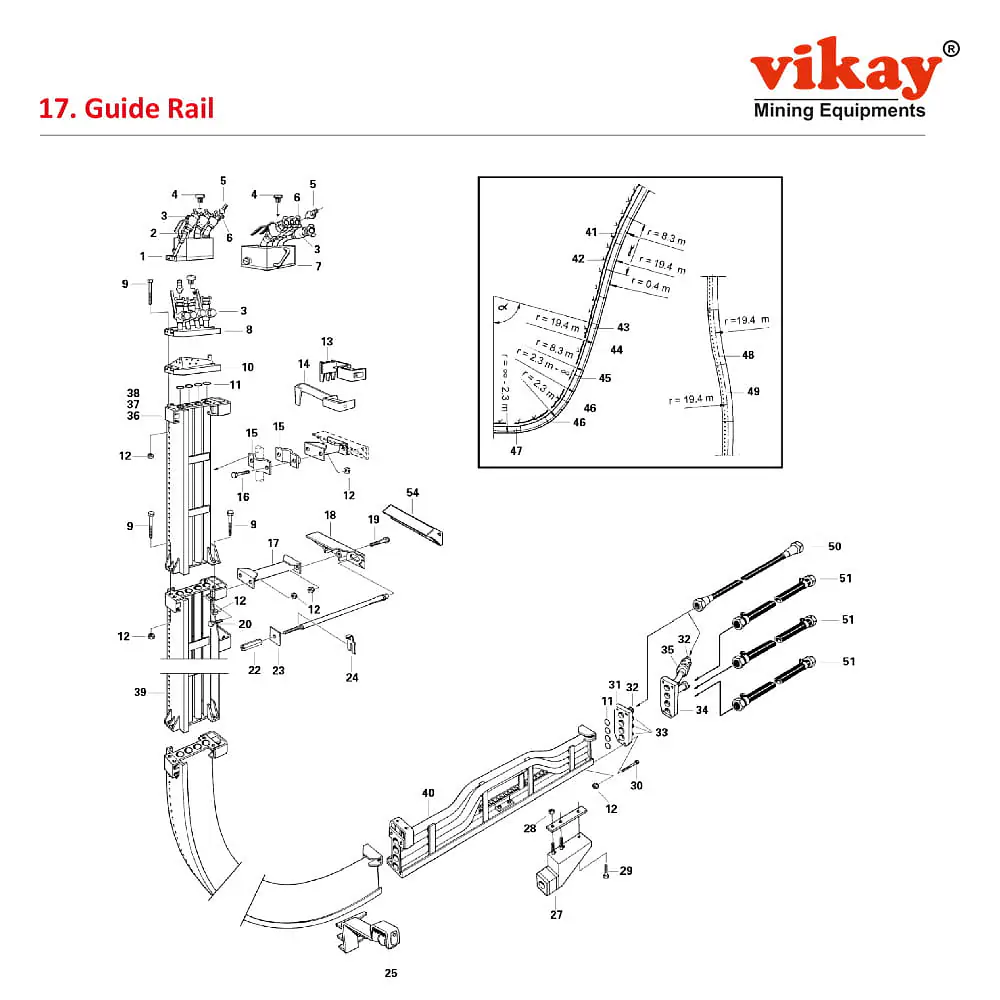

Guide Rail
| No. | Description | Designation | Ref. Part No. |
| 1 | Lubricator LB-2 | 0181344000 | |
| 2 | Cock | 3001022104 | |
| 3 | Cock | 3001022105 | |
| 4 | Cable sealing | 0493652000 | |
| 5 | Claw coupling | 3000934313 | |
| 6 | Claw coupling | 3000934103 | |
| 7 | Lubricator LB-3 | 0183543000 | |
| 8 | Header w. cooks | 479380000 | |
| 9 | Screw | U6S 3/4UNC x127-8.8-fz | 3000070442 |
| 10 | Header w. nozzles | 314124000 | |
| 11 | O-ring, std. | 43x5 | 3000136801 |
| O-ring | 40x7 | 3000136812 | |
| O-ring | 41.2x5.7 | 3000136933 | |
| 12 | Nut | U6M 3/4UNC -8.-fz | 3000080108 |
| 13 | Hose/cable holder | 373462000 | |
| 14 | Hose/cable holder | 294913000 | |
| 15 | Clamp f. extra | 315752000 | |
| bracket | |||
| 16 | Screw | U6S 3/4UNCx83-8.8-fz | 3000070434 |
| 17 | Spacer | 100 mm (4") | 414496000 |
| Spacer | 200 mm (7.87") | 414497000 | |
| Spacer | 300 mm (11.8") | 414498000 | |
| Spacer | 500 mm (19.68") | 414499000 | |
| 18 | Bracket | Standard | 213758000 |
| 19 | Screw | U6S 3/4UNCx89-8.8-fz | 3000070435 |
| 20 | Screw | U6S 3/4UNCx45-8.8-fz | 3000070426 |
| 22–24 | Expansion bolt | 800 mm (31") | 9004344080 |
| Expansion bolt | 1200 mm (47") | 9004344120 | |
| Expansion bolt | 1500 mm M20 | 9004344150 | |
| 22 | Nut | 9002440000 | |
| 23 | Square washer | 414625000 | |
| 24 | U-shaped washer | 415188000 | |
| 25 | Hose cable holder | 376370000 | |
| f. curve | |||
| 27–29 | Bottom stop compl. | 474282000 | |
| 27 | Rubber buffer | 432804000 | |
| 28 | Nut | M6M 16-8 -fz | 3000081124 |
| 29 | Screw | M6S 16 x 80 -8.8-fz | 3000071636 |
| 30 | Screw | U6S 3/4UNCx57-8.8-fz | 3000070428 |
| 31 | Rail end plate compl. | 495427000 | |
| 32 | Hexagon nipple | 3001527201 | |
| 33 | Hexagon nipple | 415998000 | |
| 34 | Rail end plate | 0395426000 | |
| compl. | |||
| 35 | Insulator | 0392471000 | |
| 36 | Guide rail section | 1998.1 mm (78.66") | 115242000 |
| 37 | Guide rail section | 1017.9 mm (40") | 115241000 |
| 38 | Guide rail section | 490.1 mm(19.3") | 118584000 |
| 39 | Guide rail w. 4 | 1998.1 mm (78.66") | 116959000 |
| bracket | |||
| 40 | Service guide rail | 173788000 | |
| 41 | Guide rail, bent 7° forward | 115257000 | |
| 42 | Guide rail, bent 3° forward | 115256000 | |
| 43 | Guide rail, bent 3° backward | 115255000 | |
| 44 | Guide rail, bent 7° backward | 115254000 | |
| 45 | Guide rail, bent 8° backward out | 115184000 | |
| 46 | Guide rail, bent 25° backward | 115172000 | |
| 47 | Guide rail, bent 8° backward in | 115185000 | |
| 48 | Guide rail, bent 3° right side | 0115748000 | |
| 49 | Guide rail, bent 3° left side | 0115747000 | |
| 50 | High pressure | 5 m (197") typ 301-19 | 3000902201 |
| hose | |||
| 51 | Air hose | 5 m (197") | 495418000 |
| 53 | Straight coupling | 3001797124 | |
| 54 | Bracket | Reinforced | 348082000 |
| Guide rail set | 5 x 1998.1mm (5 x 78.66") | 0277343000* | |
| Guide rail set | 5 x 1017.9mm (5 x 40") | 0277342000* |
