DESCRIPTION
Assembly head Frame & Distance Piece For Ingersoll Rand Model - 9 1/2 x 5 LUB
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for Assembly head Frame & Distance Piece For Ingersoll Rand Model - 9 1/2 x 5 LUB from India

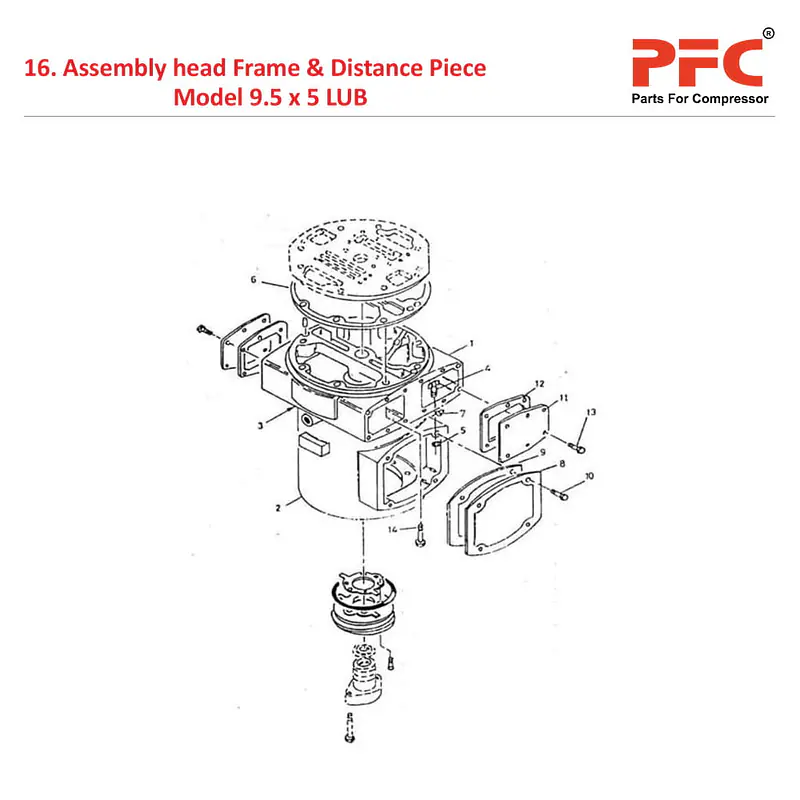

ASSEMBLY HEAD FRAME & DIST. PIECE
| Sr. No | Description | Ref Part Nos | Qty |
| – | ASSEMBLY HEAD FRAME & DIST. PIECE | 70232905 | – |
| 1 | – HEAD FRAME | 97065692 | 1 |
| 2 | – DISTANCE PIECE | 42003145 | 1 |
| 3 | – GASKET DISTANCE PIECE | 40514507 | 1 |
| 4 | – STUD 3/4" X 3-1/4" | 95737417 | 8 |
| 5 | – NUT HEX 3/4" | 95077822 | 8 |
| 6 | – GASKET FRAME HEAD | 39542105 | 1 |
| 7 | – PLUG PIPE SQ. HD 1/4" | 95033593 | 2 |
| 8 | – COVER DISTANCE PIECE | 30184261 | 1 |
| 9 | – GASKET COVER DISTANCE PIECE | 30562698 | 1 |
| 10 | – SCREW CAP HEX 1/2" X 1" | 95104147 | 4 |
| 11 | – COVER VALVE | 37087939 | 4 |
| 12 | – GASKET COVER | 39550025 | 4 |
| 13 | – SCREW CAP HEX 1/2" X 1" | 95104147 | 24 |
| 14 | – SCREW CAP FRAME HEAD | 37795184 | 8 |
