High Pressure Concentric Ring Valve For Ingersoll Rand Type 30 - Model 10T3NLM

PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - High Pressure Concentric Ring Valve For Ingersoll Rand Type 30 - Model 10T3NLM from India.

 View PDF

Product

  • Page 1

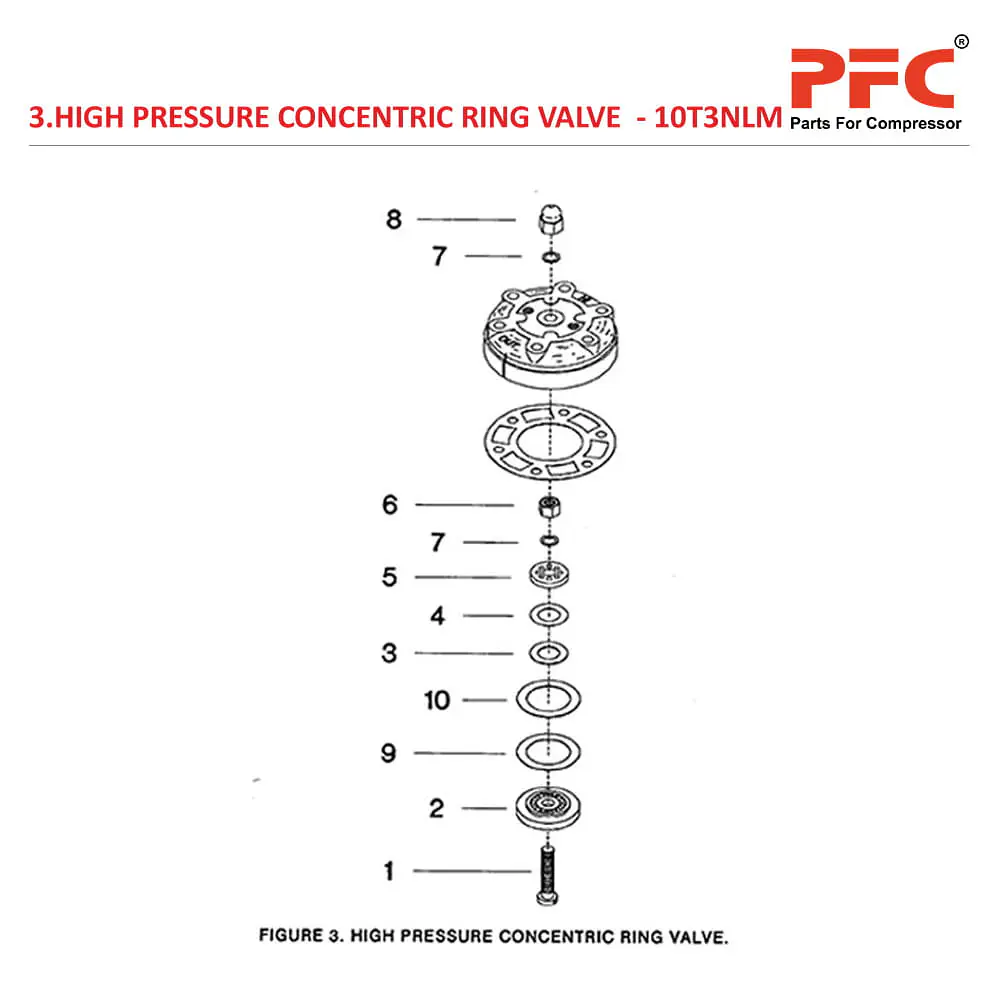

High Pressure Concentric Ring Valve

Ref. No. Part No. Description
REF. 37004835 Valve, 40 - Complete
3-1 30220925 Bolt, Valve
3-2 30217707 Seat, Valve - Discharge
3-3 30215917 Plate, Valve - Discharge
3-4 30221394 Spring, Valve
3-5 30218838 Plate, Stop - Discharge Valve
3-6 95076808 Nut, Hex
3-7 37092913 Washer, Belleville
3-8 30287643 Nut, Acorn
3-9 30221527 Spring, Valve - Inlet
3-10 30215859 Plate, Valve - Inlet

Details

  • type: product
  • SKU: 10T3NLM03
