HP Valve Plate IR 2340 Air Compressor Parts
Regular price
₹0.00
HP Valve Plate IR 2340 Air Compressor Parts
Regular price
₹0.00
DESCRIPTION
High Pressure Valve Plate Assembly For Ingersoll Rand Type 30 - Model 2340
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - High Pressure Valve Plate Assembly For Ingersoll Rand Type 30 - Model 2340 from India.

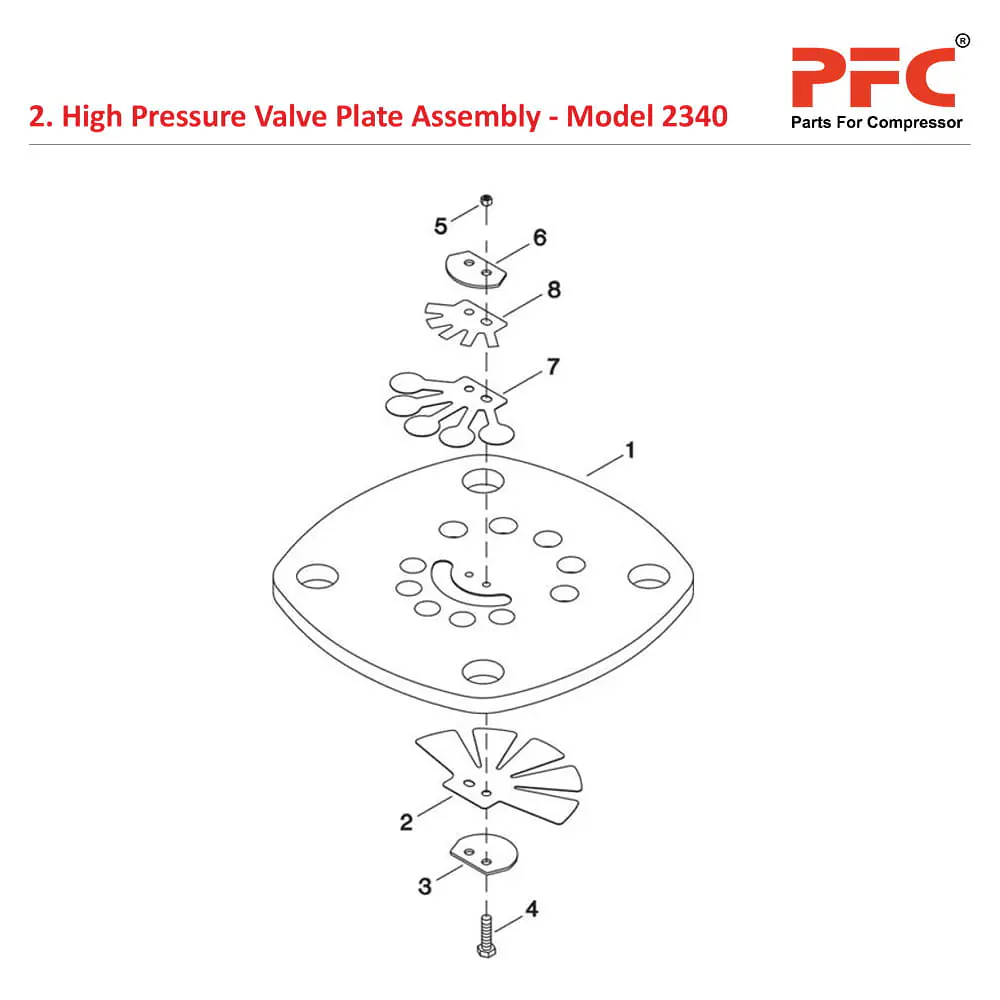

High Pressure Valve Plate Assembly
| Sr.No | Ref. Part Number | Description | Qty |
| REF | 32310799 | Assy, Valve Plate -HP | 1 |
| 2-1 | NSS | – Plate, Valve -HP | 1 |
| 2-2 | 32236671 | – Valve, Finger - HP Inlet | 1 |
| 2-3 | 32297343 | – Retainer, Valve - HP | 1 |
| 2-4 | 32297327 | – Screw, M3 X 12 | 2 |
| 2-5 | 97511059 | – Nut, Hex - M3 W/Lockwasher | 2 |
| 2-6 | 32295461 | – Retainer, Valve - HP | 1 |
| 2-7 | 32241010 | – Valve, Finger - HP Discharge | 1 |
| 2-8 | 32295479 | – Damper, Valve | 1 |
