HP Valve Plate IR 2545 Air Compressor Parts
Regular price
₹0.00
HP Valve Plate IR 2545 Air Compressor Parts
Regular price
₹0.00
DESCRIPTION
High Pressure Valve Plate For Ingersoll Rand Type 30 - Model 2545
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - High Pressure Valve Plate For Ingersoll Rand Type 30 - Model 2545 from India.

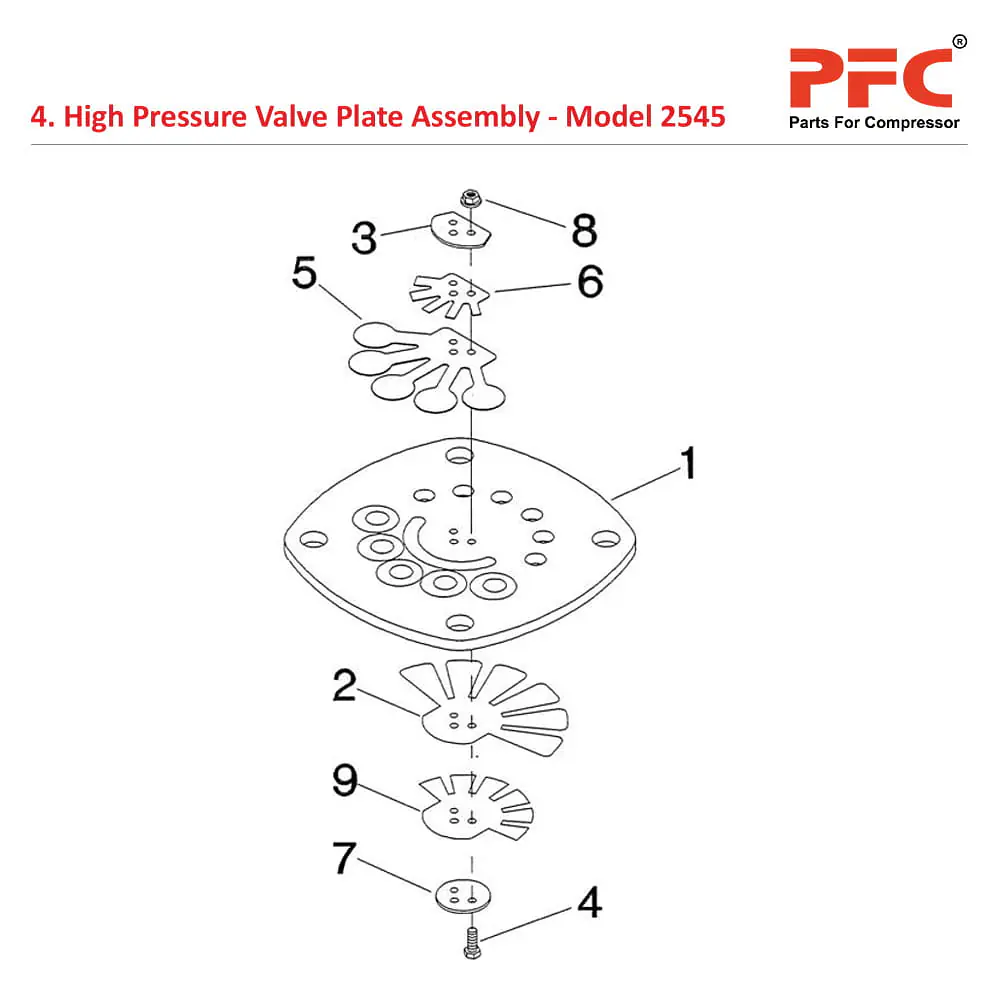

High Pressure Valve Assembly
| Sr.No | Ref. Part Number | Description | Qty |
| REF | 32293904 | Assembly, High Pressure (2.75") Valve Plate | 1 |
| 4-1 | 32294266 | – Plate, High Pressure Valve | 1 |
| 4-2 | 32294282 | – Valve, High Pressure Intake Finger | 1 |
| 4-3 | 32294316 | – Retainer, High Pressure Discharge Valve | 1 |
| 4-4 | 97511042 | – Screw, M3 X 16 Hex Head | 3 |
| 4-5 | 32294290 | – Valve, High Pressure Discharge | 1 |
| 4-6 | 32294357 | – Damper, High Pressure Discharge Valve | 1 |
| 4-7 | 32294308 | – Retainer, High Pressure Intake Valve | 1 |
| 4-8 | 97511059 | – Nut, M3 Hex with Lockwasher | 3 |
| 4-9 | 32295826 | – Damper, Valve | 1 |
